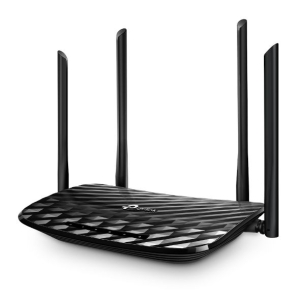

TP-Link Archer A6 AC1200 Wireless MU-MIMO Gigabit Router
The TP-Link Archer A6 AC1200 Wireless MU-MIMO Gigabit Router is a powerful and reliable router that is perfect for homes and small businesses. It offers high-speed wireless AC1200 performance and four 10/100/1000Mbps Ethernet LAN ports. The router also includes WPS and WAN support, and it has a Wi-Fi range of up to 5,000 square feet.
- Efficient MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once
- Beamforming technology delivers wider wireless coverage
- Supports Access Point mode to create a new WiFi access point
- Four external antennas and one internal antenna provide a stable wireless connection and optimal coverage
- Easy network management at your emails with the TP-Link Tether app
- Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of bandwidth
- Supports 802.11ac standard
The TP-Link Archer A6 AC1200 Wireless MU-MIMO Gigabit Router is a great choice for users who need a fast and reliable wireless connection. This router supports the 802.11ac standard and provides simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for a total of 1200 Mbps of bandwidth. Additionally, four external antennas and one internal antenna provide a stable wireless connection and optimal coverage. The TP-Link Tether app makes it easy to manage your network from your mobile device, and MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once. Beamforming technology delivers wider wireless coverage, and the router also supports Access Point mode to create a new WiFi access point. Finally, the router is IPv6 supported and features a Guest Network that provides secure WiFi access for guests to share.
802.11ac WiFi Technology
The Archer A6 creates a reliable and blazing-fast network powered by 802.11ac WiFi technology. The 5GHz band delivers speeds up to 867Mbps making it ideal for HD video streaming and lag-free online gaming. The 2.4GHz band delivers speeds up to 300Mbps for everyday tasks like emailing and web browsing.
5 High-Performance Antennas for WiFi Coverage throughout Your Home
With a powerful chipset, the Archer A6 provides ideal WiFi coverage. Stay connected and enjoy fast WiFi whether you are lounging on the sofa or on the balcony. Four external antennas and one internal antenna send WiFi signals to every corner of your home.
Access Point Mode
Switch to Access Point Mode to share your wired network with other wireless devices. MU-MIMO enables the Archer A6 to serve multiple devices simultaneously, increasing speed, throughput, and capacity. Say goodbye to bandwidth congestion and lag as you zip through a more efficient network built for more users and more devices.
Specifications
|
SYSTEM |
|
System
Requirements |
Microsoft Windows
10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or
Linux |
|
Internet Explorer 11,
Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled
browser |
|
Cable or DSL
Modem |
|
Subscription with an
internet service provider (for internet access) |
|
ENVIRONMENT |
|
Operating
Temperature |
0~40
(32
~104) |
|
Storage
Temperature |
-40~70
(-40
~158) |
|
Operating
Humidity |
10%~90%
non-condensing |
|
Storage
Humidity |
5%~90%
non-condensing |
|
PACKAGE
CONTENTS |
|
Package
Contents |
Wireless Router Archer
A6 |
|
Power
Adapter |
|
RJ45 Ethernet
Cable |
|
Quick Installation
Guide |
|
HARDWARE
FEATURES |
|
Ports |
4*10/100/1000Mbps LAN
Ports, 1*10/100/1000Mbps WAN Port |
|
Button |
Reset Button, Power
On/Off Button, WPS/Wi-Fi On/Off Button |
|
Power
Supply |
12V/1A |
|
Dimensions ( W x D x H
) |
9.1 5.7 1.4 in (230 144
35 mm) |
|
Antenna |
4 Fixed External
Antennas and 1 Internal Antenna |
|
WIRELESS
FEATURES |
|
Wireless
Standards |
IEEE 802.11ac/n/a 5GHz,
IEEE 802.11b/g/n 2.4GHz |
|
Frequency |
2.4GHz and
5GHz |
|
Signal
Rate |
5GHz: Up to
867Mbps |
|
2.4GHz: Up to
300Mbps |
|
Reception
Sensitivity |
5GHz: |
|
11a 6Mbps:-93dBm ; 11a
54Mbps:-78dBm |
|
11ac HT20
mcs8:69dBm;11ac HT40 mcs9:-65dBm; |
|
11ac HT80
mcs9:-62dBm; |
|
2.4GHz: |
|
11g
54Mbps:-78dBm; |
|
11n HT20
mcs7:-74dBm; |
|
11n HT40
mcs7:-71dbm |
|
Transmit
Power |
CE EIRP:
<20dBm(2.4GHz); <23dBm(5GHz) |
|
FCC EIRP:
<30dBm(2.4GHz); <30dBm(5GHz) |
|
Wireless
Functions |
Enable/Disable Wireless
Radio, WDS Bridge, WMM, |
|
Wireless
Statistics |
|
Wireless
Security |
64/128-bit WEP,WPA /
WPA2,WPA-PSK/ WPA2-PSK encryption |
|
SOFTWARE
FEATURES |
|
WAN
Type |
Dynamic IP, Static IP,
PPPoE, PPTP (Dual Access), L2TP (Dual |
|
Access),
BigPond |
|
Management |
Access Control, Local
Management, Remote Management |
|
DHCP |
Server, DHCP Client
List, Address Reservation |
|
Port
Forwarding |
Virtual Server, Port
Triggering, UPnP, DMZ |
|
Dynamic
DNS |
DynDns,
NO-IP |
|
Access
Control |
Parental Controls,
Local Management Control, Host List, White List, Black
List |
|
Firewall
Security |
DoS, SPI Firewall, IP
and MAC Address Binding |
|
Protocols |
IPv4,
IPv6 |
|
Guest
Network |
2.4GHz guest network,
5GHz guest network |
|
VPN
Server |
OpenVPN, PPTP
VPN |
