All stock codes associated to this product
W18E, TD84009, 6932849429671

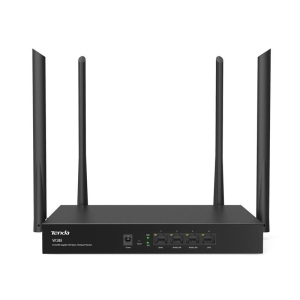

Tenda W18E / Gateway&Router / AC1200 Gigabit Wireless Hotspot
Router
Overview
W18E is designed to provide wireless network for small office, internet caf,
large house etc premise. It is compliant with 802.11a/n/ac standard and delivers
wireless rate up to 1200Mbps. Features with external power amplier and 4 high
gain antenna, it provide superior wireless coverage and high quanlity wifi
connection expirence for mobile user. Adopt of 11ac dual band,airtime
fairness,5G bandsteering etc wireless optimization technology to improve
wireless user capacity and ensure high qualied Wi-Fi connection.
Specifications
Dimension |
220*135*30(mm)(LxWxH) |
Frequency |
2.4GHz\5GHz |
Wireless
Speed |
300+867Mbps |
RAM
Data Buffer |
128MB |
Flash |
8MB |
Maximum
Power Consumption |
12W |
Interface |
4*GE(1~3
WAN/ 1~3 LAN) |
Power |
12V
1A |
Max
Wifi user capacity |
50 |
Max
user capacity |
80 |
Internet
Connection Type |
PPPoE/DHCP/Static
IP/Russian L2TP/India (PPPoE supports server name
customization) |
Authrization
Service |
Captive
Portal |
Captive
Portal |
50
Portal Accounts |
|
Customize
E-bulletin |
Backbound
Bandwidth |
Smart
Bandwith Control |
|
Manual
Definition |
Internet
Access Control |
IP/mac/URL
Filter |
VPN
Protocal |
PPTPL2TPIPSEC |
Port
Forwarding |
Port
Forwarding |
|
DMZ |
Security
Setting |
IP-MAC
Binding |
|
ARP
Attack Protection |
DDNS |
no-ip/dyndns |
UPNP |
Support |
Firmware
Upgrade |
Local |
|
online
Upgrade |
System
Tool |
Schedule
Reboot |
|
Restore
or Backup Configuration |
Network
Status View |
Traffic
Statistics |
|
Network
structure
topology |
