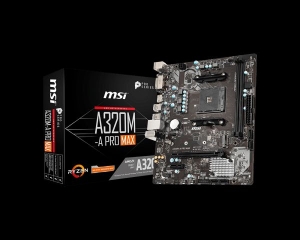

MSI A320M-A Pro Max Motherboard
Overview
AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4
Boost, Turbo M.2, USB 3.2 Gen1
- Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics
and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics
and A-series / Athlon X4 Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 3200 (OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based
SSDs.
- Audio Boost: Reward your ears with studio grade sound quality.
- X-Boost: Software that auto-detects and allows you to boost the
performance of any storage or USB device.
- Core Boost: With premium layout and fully digital power design to support
more cores and provide better performance.
- Keyboard & Mouse
- DVI-D
- HDMI
- USB 3.2 Gen1
- USB 3.2 Gen1
- USB 2.0 & LAN Port
- HD Audio Connectors
- DDR4 Boost - Optimized traces and isolated memory
- Turbo M.2 - Running at PCI-E Gen3 x4 maximizes performance for NVMe based
SSDs
- Heavy Plated Heatsinks - Leading heatsinks design, for maximum
cooling
- Audio Boost - Reward your ears with studio grade sound quality.
DIY FRIENDLY
MSI motherboards feature tons of convenient and smart design, such as
convenient pin-header keep out zone, friendly SATA & USB location and so on,
so DIY users can pick and choose any gaming rig they want.
STAY COOL FOR RELIABLE SYSTEM
Cooling your PC is essential for reliable performance. MSI motherboards
feature excellent power design with solid and heavy heatsink. We've made sure to
include enough fan headers with full control to allow you to cool your system
any way you want.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system
and CPU fans. Total Fan Control allows you check your primary system
characteristics in a simplified graphical interface. You can also set up to 4
temperature targets for CPU and motherboard, which will adjust the fan speeds
automatically.
MAXIMUM COMPATIBILITY
Every MSI motherboards are certified by strict mechanic that feature
convenient pin-header keep out zone, friendly SATA & USB location for
compatibility with the widest range of components and devices, so DIY user can
pick and choose the components they want. More than that, we offer a dedicated
Qualified Vendor List (QVL) for the most critical part - memory. Combining with
MSI DDR4 Boost technology, we provide the maximum compatibility, so you confirm
and choose any gaming rig as you want.
RYZEN PROCESSORS SUPPORT
MSI AM4 motherboards perfectly support AMD Ryzen processors. Combining MSI
Core Boost, you can release maximum performance no matter what CPU you use.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands
under extreme conditions to ensure your system runs stable no matter what. Our
memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many
more to optimize memory modules and configurations.
APPS TO GREATLY IMPROVE EFFICIENCY
With years of experience in creating performance enhancing tools that are
easy to use, only the highest quality applications are at your disposal. Use
these tools to get the most out of your motherboard and achieve victory when
gaming. Moreover, we made sure our BIOS contains all the latest options and is
easy to use for everyone. The extensive features let you fine-tune your system
to deliver reliable maximum performance.
X-BOOST YOUR STORAGE
This unique and exclusive software allows you to boost the performance of any
storage or USB device connected to your system. Simply use X-BOOSTs Easy or
Advanced mode to tune your system speed increased, higher system responsiveness
and faster loading of data.
TAKE COMMAND OF YOUR SYSTEM
MSIs Command Center software is the perfect tool to get the most out of your
motherboard. With an intuitive interface, Command Center allows you to tune
settings to increase system stability, maximize performance and optimize your
systems cooling features.
ENHANCED PERFORMANCE
MSI motherboards featured all the latest solution for enthusiast gamers and
prosumers. CPU and memory enhancement and fast storage and USB transfer speed
are ready to be on the battlefield.
EASY OVERCLOCKING WITH XMP PROFILE
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI
OC lab. It is easy to enable with auto power settings to get the best memory
speed and stability.
FAST AND FUTURE-READY STORAGE
MSI motherboards support all the latest storage standards, which allows users
to connect any ultra-fast storage device. Start games faster, load levels faster
and have a real advantage over your enemies.
AMD STOREMI
All MSI X470 & B450 motherboards are shipped with STOREMI, the new AMD
SSD technology to improve storage performance. This tool helps create a virtual
SSD by blending capacity storage, treats flash as primary storage and optimizes
data access with monitoring continuously. All these functions can enhance
read/write speed for active data and provide fast boot times and application
startup.
- Lower Cost
- More Performance
- More Usable Capacity
- Use any SSD you want
TURBO M.2
Enjoy a blazing fast system boot up and insanely quick loading of
applications and games with MSI motherboards. Delivering speeds up to 32Gb/s per
device using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III
connection!
IN-STUDIO ADVANTAGE
MSI motherboards provide the most fascinating in-studio advantages, designed
to satisfy any professional workflow. Elevate your listening pleasure and
network connection with MSI Audio & LAN. Enjoy extreme sound quality and
uninterrupted online experience.
SOUND THAT PULLS YOU INTO THE GAME
Reward your ears with studio grade sound quality. MSI Audio Boost delivers
the highest sound quality through the use of premium quality audio components.
This lets you enjoy breathtaking, studio quality sound to create the most
immersive sound experience.
EXHILARATING AND INSPIRING
Each MSI motherboard is built based on the specific topic in order to match
different tastes and favors. Furthermore, MSI also adopts the modern style to
design the heatsink through huge surface and sleek but simple cuts in order to
make the heatsink and appearance looks ripped and powerful. Combined with
neutral color, such as black, grey and silver, as the main background, MSI
motherboard can perfect fit different RGB LED effects and strongly shows the
gamers tunes.
MAKE YOUR PC MORE THAN YOU THINK
PRO Series motherboards combine stable functionality and high quality
assembly for clever business solutions. Designed to satisfy any professional
workflow, PRO Series motherboards make life easier for businesses and office
use.
LOYAL COMRADE
With years of experience, MSI is no stranger to building high-performance
motherboards. Our R&D and engineering teams have reviewed countless designs,
evaluated a wide selection of high quality components, and developed products
for reliability even under extreme conditions.
COMPONENTS
BUILT ON EVERLASTING QUALITY
Using only the finest quality components and integrating the latest
technological innovations delivers the best possible professional experience.
Rigorous quality testing under the most extreme conditions ensures a super
reliable, long-lasting and high performance motherboard.
SUPER STABLE GAMING WITH THE HIGHEST QUALITY
COMPONENTS
MSI uses the high quality components , which is shielded by the best
protection to make sure your system runs smoothly under the most extreme
conditions.
SOLID CAP
With their aluminum core design and Japanese made quality, Solid CAPs are
made for high-end design motherboard. Not only do Solid CAPs could provide lower
Equivalent Series Resistance (ESR), but also work firmly for
over-10-year.
DARK CHOKE
A special core design allows the Dark Choke to run at a lower temperature
offering better power efficiency and stability.
- HUMIDITY PROTECTION
- TEMPERATURE PROTECTION
- CIRCUIT PROTECTION
- ESD PROTECTION
- EMI PROTECTION
ULTIMATE MOTHERBOARD PROTECTION
Weve made sure you can enjoy your system endlessly. MSI motherboards feature
Double ESD protection with double layer grounding around the motherboard
mounting holes, preventing Electrostatic discharge (ESD) surges from damaging
the motherboard.
MSI DOBUBLE ESD PROTECTION BEST
BRAND B DOBUBLE ESD PROTECTION AVERAGE
BRAND G DOBUBLE ESD PROTECTION POOR
WINDOWS 10 CERTIFIED
With MSI you benefit from great compatibility and a worry-free user
experience when using Microsoft Windows 10.
With a true dedication to performance, our R&D team has made sure
everything works as intended when using the latest version of Microsoft Windows
on any MSI product.
Specifications
|
SOCKET |
AM4 |
|
CPU (MAX
SUPPORT) |
RYZEN |
|
CHIPSET |
AMD A320
Chipset |
|
DDR4
MEMORY |
1866/ 2133/ 2400/
2667Mhz (by JEDEC) |
|
MEMORY
CHANNEL |
2667/ 2800/ 2933/ 3000/
3066/ 3200 MHz (by A-XMP OC MODE) |
|
DIMM
SLOTS |
Dual |
|
MAX MEMORY
(GB) |
2 |
|
PCI-E
X16 |
32 |
|
PCI-E
GEN |
1 |
|
PCI-E
X1 |
Gen3 |
|
SATAIII |
1 |
|
M.2
SLOT |
4 |
|
RAID |
1 |
|
TPM
(HEADER) |
0/1/10 |
|
LAN |
1 |
|
USB 3.2 PORTS
(FRONT) |
1x Realtek
8111H |
|
USB 3.2 PORTS
(REAR) |
2(Gen1, Type
A) |
|
USB 2.0 PORTS
(FRONT) |
4(Gen1, Type
A) |
|
USB 2.0 PORTS
(REAR) |
4 |
|
SERIAL
PORTS(FRONT) |
2 |
|
AUDIO PORTS
(REAR) |
1 |
|
DVI-D |
Realtek ALC892
Codec |
|
HDMI |
1 |
|
DIRECTX |
1 |
|
FORM
FACTOR |
12 |
|
OPERATING
SYSTEM |
m-ATX |
|
Support for Windows 10
64-bit |
|
Support for Windows 7
64-bit |
|
* To support Windows 7
64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge
CPU. |
