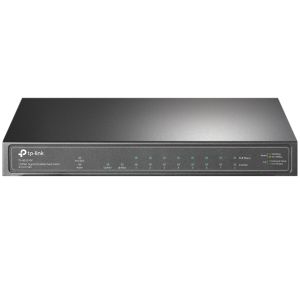

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+
Overview
- 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
- With 8 PoE+ ports, transfers data and power on one single cable
- Working with IEEE 802.3af/at compliant PDs, expands home and office
network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- High PoE power budget with up to 30W for each PoE port and 63W for all PoE
ports
- Easy to use, with no configuration and installation needed
Power over Ethernet
Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE
ports can automatically detect and supply power with those IEEE 802.3af/at
compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 63W, the intelligent power management
will cut the lower priority port power off to ensure the high priority ports
power supply and protect the device from power overload
operation.
Administrators can designate the priority of traffic based on QoS, for
example, to ensure that voice and video applications remain clear and
lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better
network experience especially for applications like IPTV.
Sturdy Metal Casing
Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your
needs in any environment. Besides, fanless design ensures quiet
operation.
Specifications
|
HARDWARE
FEATURES |
|
Interface |
8 PoE+ 10/100/1000Mbps
RJ45 Ports |
|
1 10/100/1000Mbps RJ45
Port |
|
1 Gigabit SFP
Slot |
|
Network
Media |
10BASE-T: UTP category
3, 4, 5 cable (maximum 100m) |
|
EIA/TIA-568 100 STP
(maximum 100m) |
|
100BASE-TX: UTP
category 5, 5e cable (maximum 100m) |
|
EIA/TIA-568 100 STP
(maximum 100m) |
|
1000BASE-T: UTP
category 5, 5e, 6 or above cable (maximum 100m) |
|
EIA/TIA-568 100 STP
(maximum 100m) |
|
1000BASE-X MMF,
SMF |
|
Fan
Quantity |
Fanless |
|
Physical Security
Lock |
Yes |
|
Power
Supply |
External Power
Adapter(Output: 53.5VDC / 1.31A) |
|
Backup
Bandwidth |
20
Gbps |
|
PoE+
Ports(RJ45) |
Standard:
802.3at/802.3af compliant |
|
PoE Ports: Port1- Port
8 |
|
PoE Power Budget:
63W |
|
Mac Address
Table |
4K |
|
Dimensions ( W x D x H
) |
209 126 26
mm |
|
Max Power
Consumption |
7.11 W (220/50Hz. no PD
connected) |
|
78.13 W (220/50Hz. with
63W PD connected) |
|
Max Heat
Dissipation |
24.25 BTU/h (no PD
connected) |
|
266.42 BTU/h (with 63W
PD connected) |
|
SOFTWARE
FEATURES |
|
Advanced
Features |
Compatible With IEEE
802.3af/at Compliant PDs |
|
EEE802.3x Flow
Control |
|
802.1p/DSCP
QoS |
|
IGMP
Snooping |
|
Transmission
Method |
Store-And-Forward |
|
OTHERS |
|
Certification |
CE, FCC,
RoHS |
|
Package
Contents |
TL-SG1210P, Power
Adapter, Installation Guide |
|
Environment |
Operating Temperature:
0C~40C (32F~104F) |
|
Storage Temperature:
-40C~70C (-40F~158F) |
|
Operating Humidity: 10%
~ 90% non-condensing |
|
Storage Humidity:
5%~90%
non-condensing |
Networking
