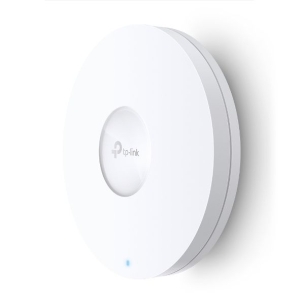

TP-Link EAP620 HD AX1800 Wireless Dual Band Ceiling Mount Access
Point
Overview
- Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps
on 5 GHz totals 1775 Mbps Wi-Fi speeds.
- High-Density Connectivity: 4 increased capacity to connect more devices
simultaneously.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized
Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience
and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as
users move between locations.
- PoE+ Support: Supports Power over Ethernet (802.3at) for convenient
deployment and installation.
- Secure Guest Network: Along with multiple authentication options
(SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security
technologies.
Specifications
|
HARDWARE
FEATURES |
|
Interface |
1x
Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at
PoE) |
|
Button |
Reset |
|
Power
Supply |
802.3at
PoE |
|
12
V DC |
|
Power
Consumption |
EU:
12 W |
|
US:
13.5 W |
|
Dimensions
( W x D x H ) |
9.6
x 9.6 x 2.5 in (243 x 243 x 64 mm) |
|
Antenna
Type |
Internal
Omni |
|
2.4
GHz: 2x 4 dBi |
|
5
GHz: 2x 5 dBi |
|
Mounting |
Ceiling
/Wall Mounting (Kits included) |
|
WIRELESS
FEATURES |
|
Wireless
Standards |
IEEE
802.11ax/ac/n/g/b/a |
|
Frequency |
2.4
GHz and 5 GHz |
|
Signal
Rate |
5
GHz: Up to 1201 Mbps |
|
2.4
GHz: Up to 574 Mbps |
|
Wireless
Functions |
1024-QAM |
|
4x
Longer OFDM Symbol |
|
OFDMA |
|
Multiple
SSIDs (Up to 16 SSIDs, 8 for each band) |
|
Enable/Disable
Wireless Radio |
|
Automatic
Channel Assignment |
|
Transmit
Power Control (Adjust Transmit Power on dBm) |
|
QoS(WMM) |
|
MU-MIMO |
|
Seamless
Roaming |
|
Band
Steering |
|
Load
Balance |
|
Airtime
Fairness |
|
Beamforming |
|
Rate
Limit |
|
Reboot
Schedule |
|
Wireless
Schedule |
|
Wireless
Statistics based on SSID/AP/Client |
|
Wireless
Security |
Captive
Portal Authentication |
|
Access
Control |
|
Wireless
Mac Address Filtering |
|
Wireless
Isolation Between Clients |
|
SSID
to VLAN Mapping |
|
Rogue
AP Detection |
|
802.1X
Support |
|
WEP,
WPA-Personal/Enterprise, WPA2-Personal/Enterprise,
WPA3-Personal/Enterprise |
|
Transmission
Power |
CE: |
|
<20
dBm(2.4 GHz, EIRP) |
|
<23
dBm(5 GHz, EIRP) |
|
|
FCC: |
|
<25
dBm (2.4 GHz) |
|
<25
dBm (5 GHz) |
|
MANAGEMENT |
|
Omada
App |
Yes |
|
Centralized
Management |
Omada
Cloud-Based Controller |
|
Omada
Hardware Controller (OC300) |
|
Omada
Hardware Controller (OC200) |
|
Omada
Software Controller |
|
Cloud
Access |
Yes
(Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software
Controller) |
|
Email
Alerts |
Yes |
|
LED
ON/OFF Control |
Yes |
|
Management
MAC Access Control |
Yes |
|
SNMP |
v1,
v2c, v3 |
|
System
Logging Local/Remote Syslog |
Local/Remote
Syslog |
|
SSH |
Yes |
|
Web-based
Management |
HTTP/HTTPS |
|
L3
Management |
Yes |
|
Multi-site
Management |
Yes |
|
Management
VLAN |
Yes |
|
OTHERS |
|
Certification |
CE,
FCC, RoHS |
|
Package
Contents |
EAP620
HD |
|
Power
Adapter |
|
Ceiling/Wall
Mounting Kits |
|
Installation
Guide |
|
System
Requirements |
Microsoft
Windows XP, Vista, Windows 7, Windows 8, Windows10,
Linux |
|
Environment |
Operating
Temperature: 040 (32104 ) |
|
Storage
Temperature: -4070 (-40158 ) |
|
Operating
Humidity: 1090% RH non-condensing |
|
Storage
Humidity: 590% RH
non-condensing |
