All stock codes associated to this product
GVN2060WF2OC6GDREV.2.0, GV-N2060WF2OC-6GD REV. 2.0, GVN2060WF2OC6GDREV20, II40128
Gigabyte GeForce RTX 2060 Windforce OC 6G (rev. 2.0) Video
Card
Features
- Powered by GeForce RTX 2060
- Integrated with 6GB GDDR6 192-bit memory interface
- WINDFORCE 2X Cooling System with alternate spinning fans
- 100mm unique blade fans
- Protection back plate
Core Clock
- 1770 MHz (Reference card: 1680 MHz)
WINDFORCE 2X COOLING SYSTEM
WINDFORCE 2X cooling system features 2x 100mm unique blade fans, alternate
spinning fan, 2 composite copper heat pipes direct touch GPU and 3D active fan,
together delivering an effective heat dissipation.
ALTERNATE SPINNING
The GIGABYTE Alternate Spinning is the only solution that can solve the
turbulent airflow of three fans. The biggest problem with the three fans is
turbulence. Since the fans rotate in the same direction, the airflow direction
is opposite between the fans, which will cause turbulent airflow and reduce heat
dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction,
so that the airflow direction between the two fans is the same, reducing the
turbulence and enhancing the airflow pressure.

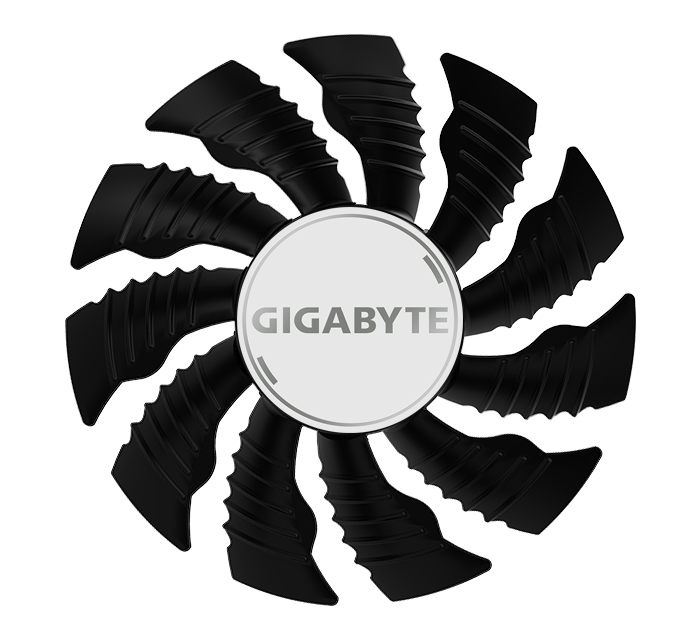

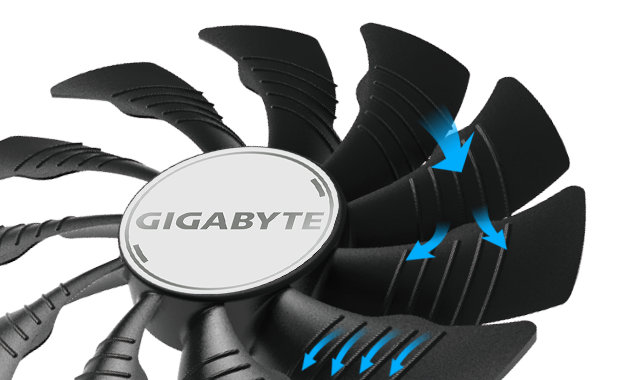

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through
the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off
when the GPU is in a low load or low power game. It allows gamers to enjoy
gameplay in complete silence when the system is running light or idle.

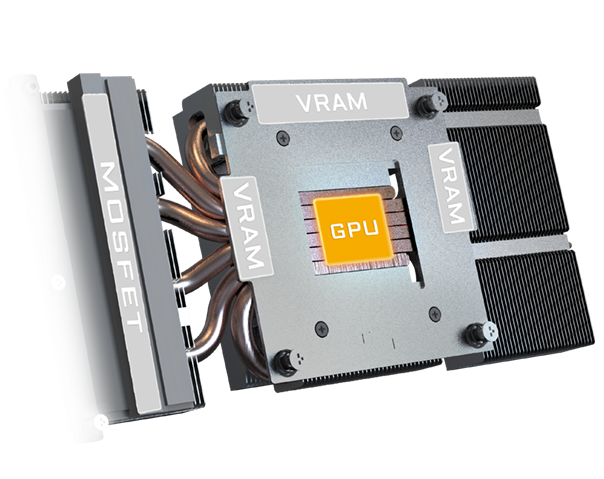

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipes maximizes the direct contact area
with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM
through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to
efficiently manage the heat transfer between two solid interfaces which
increases cooling capacity.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to
operate at lower temperature, and over-temperature protection design and load
balancing for each MOSFET, plus the Ultra Durable certified chokes and
capacitors, to provide excellent performance and longer system life.

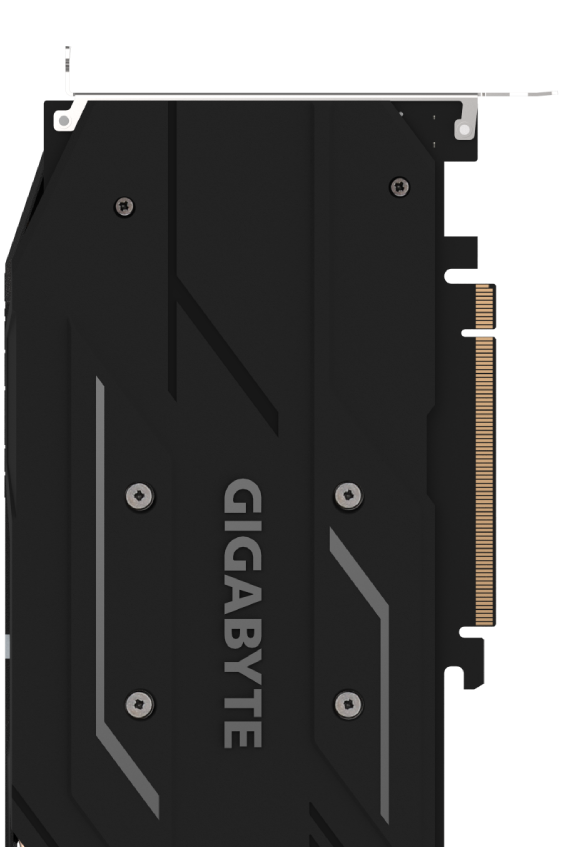

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also
enhances the structure of the graphics card to provide complete protection.
IN TOTAL COMMAND
The interface and functionality of the software is subject to each
model.

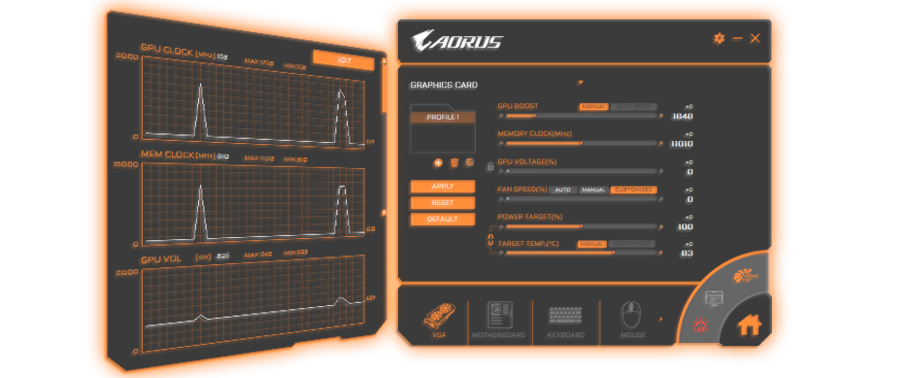

AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed,
voltage, fan performance and power target in real-time according to your games
requirements.
Specifications
Graphics
Processing |
GeForce RTX
2060 |
Core
Clock |
1770 MHz (Reference
Card: 1680 MHz) |
RTX-OPS |
38 |
CUDA
Cores |
1920 |
Memory
Clock |
14000
MHz |
Memory
Size |
6
GB |
Memory
Type |
GDDR6 |
Memory
Bus |
192
bit |
Memory Bandwidth
(GB/sec) |
336
GB/s |
Card
Bus |
PCI-E 3.0 x
16 |
Digital max
resolution |
7680x4320@60Hz |
Multi-view |
4 |
Card
size |
L=264.9 W=120.58
H=40.41 mm |
PCB
Form |
ATX |
DirectX |
12 |
OpenGL |
4.6 |
Recommended
PSU |
500W |
Power
Connectors |
8
Pin*1 |
Output |
DisplayPort 1.4
*3 |
|
HDMI 2.0b
*1 |
SLI
support |
No |
Accessories |
1. Quick
guide |
|
2. Driver
CD |
