All stock codes associated to this product
ROGSTRIXRX570O8GGAMING, ROG-STRIX-RX570-O8G-GAMING, VCARX570O8GROG, VCA-RX570-O8G-ROG, 4718017461016

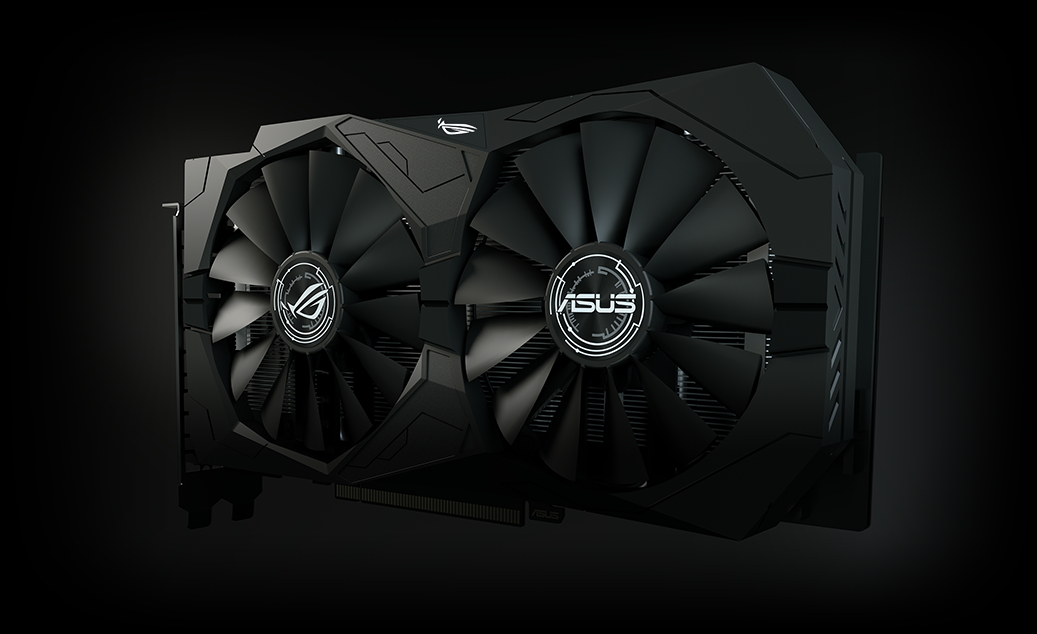

Asus ROG-STRIX-RX570-O8G-Gaming Video Card
Overview
- ROG Strix Radeon? RX570 OC edition 8GB GDDR5 is your ticket into PC
gaming.
- Wing-blade fan design incorporates drooped tips on each blade to reduce
drag.
- 0dB Technology lets you enjoy light gaming in relative silence.
- IP5X dust resistance offers protection from particle ingress for better
durability.
- DirectCU II brings copper heatpipes into direct contact with the die for
better cooling.
- Auto-Extreme Technology uses automation to enhance reliability.
- Super Alloy Power II includes premium alloy chokes, solid polymer
capacitors, and an array of high-current power stages.
- Aura Sync compatibility lets you customize and sync lighting effects with
other compatible hardware.
Take Flight
ROG Strix graphics cards give you complete control over performance and
aesthetics; an advanced Wing-blade fan design keeps things cool and GPU Tweak
software lets you fine-tune every setting. Whether you're upgrading an outdated
card or building your first gaming rig, the ROG Strix Radeon RX 570 provides a
premium introduction to PC gaming.

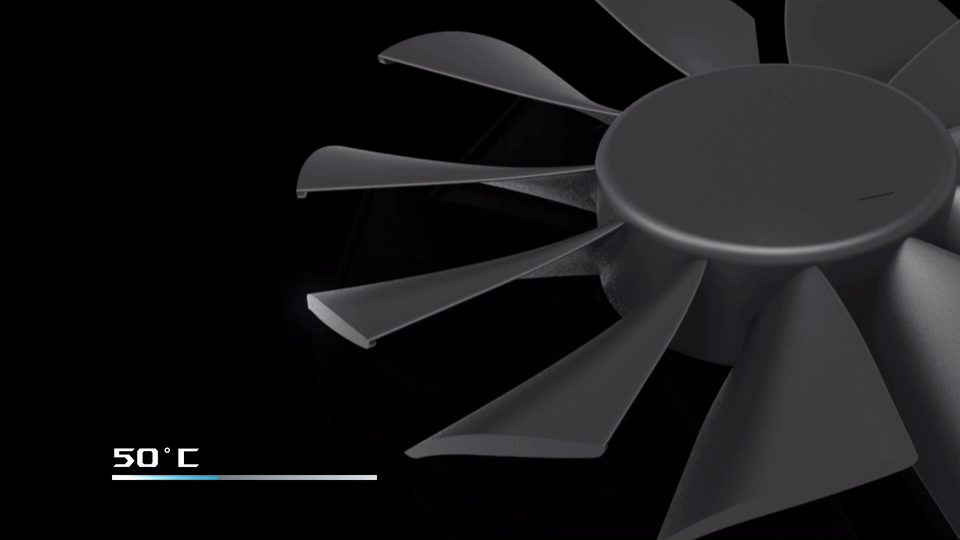

Wing-blade Fan Design | They're pretty fly
Our patented Wing-blade fan design adds drooped tips to each fan blade in
order to reduce drag.
0dB Technology | Quiet intelligence
An advanced onboard controller brings fans to a standstill when the GPU core
temperature is below 55 Celsius, letting you enjoy light gaming in relative
silence. As temps rise past the threshold, the fans automatically start up
again.
IP5X Dust Resistance | Keep it clean
Dust is enemy number one for fans. It's easy to clean the blades, but taking
the fan apart to remove dust that has made its way inside is not a simple task.
IP5X certification keeps nasty particulates out of the housing, so you'll never
need that deep clean.

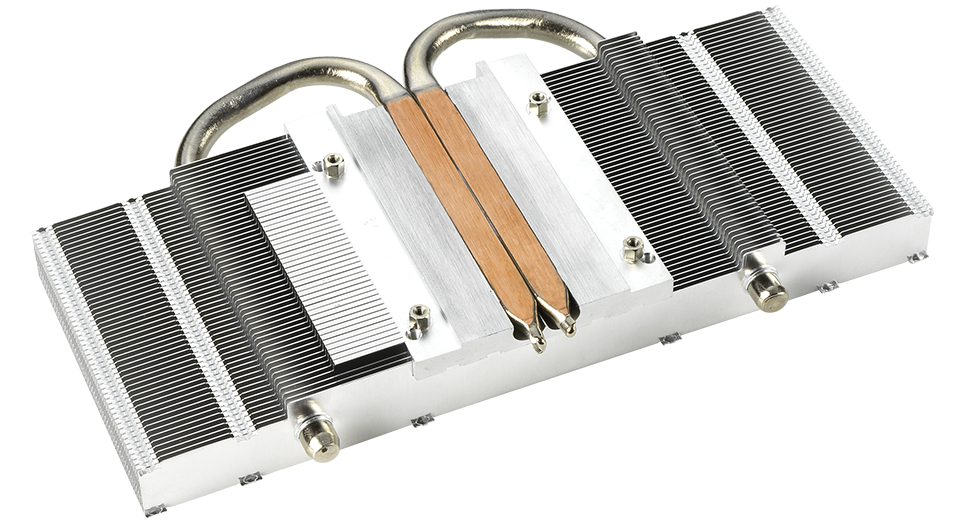

DirectCU II | First contact
Copper heatpipes make direct contact with the die for improved thermal
transfer.
AutoExtreme Technology | Precision automated
manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new
standards in the industry by allowing all soldering to be completed in a single
pass. This reduces thermal strain on components and avoids the use of harsh
cleaning chemicals, resulting in less environmental impact, lower manufacturing
power consumption, and a more reliable product overall.

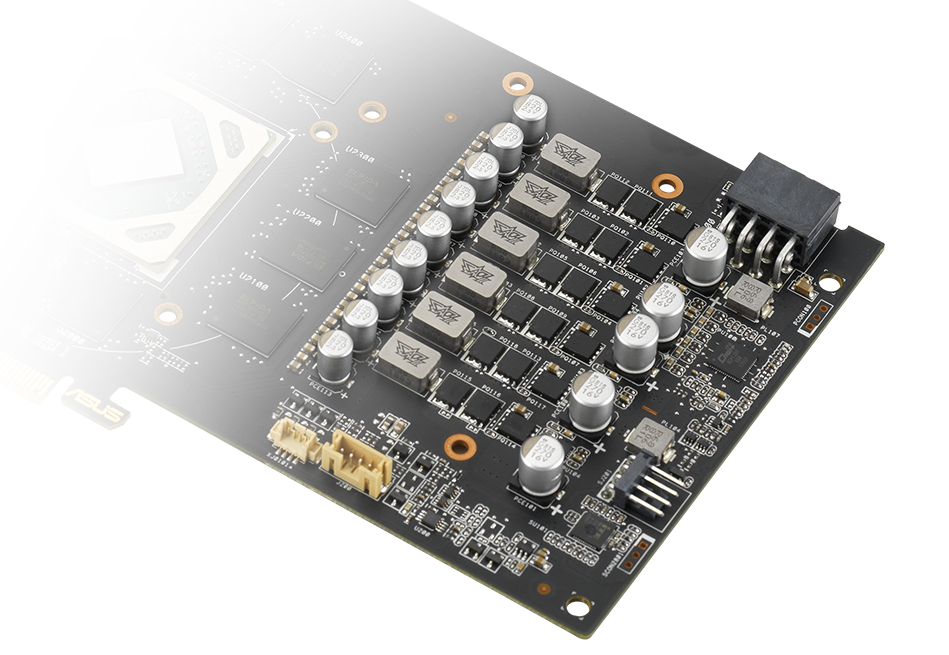

Super Alloy Power II | Premium power
components
High-performance graphics cards need a power delivery circuit with the
reserves to handle the onslaught when you dial up the clock. The ROG Strix RX570
is armed with premium capacitors, and alloy-core chokes are capable of pushing
performance to the max.
Aura Sync | Outshine the competition
The ROG Strix RX 570 features Aura RGB lighting on the shroud. Get Aura Sync
software to connect your compatible products for a completely customized gaming
setup. You can sync to music, change color based on temperature, or select from
a large number of patterns and static options, so make sure to look out for the
Aura Sync logo when you're picking parts for your build.

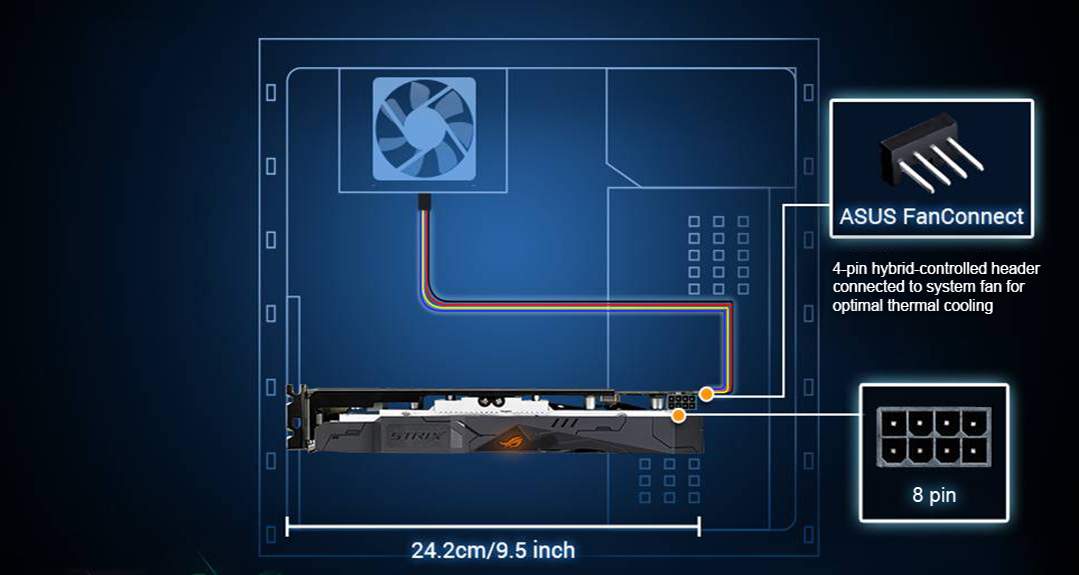

ASUS FanConnect II | Smarter fan speed
ASUS FanConnect II features one 4-pin, hybrid-controlled header that can be
connected to both PWM and DC system fans for optimal system cooling. Connected
fans react to GPU and CPU temperatures, so that your system is optimally cooled
no matter what you do. A comprehensive set of tuning options allow you to tweak
fan speeds for your preferred balance of cooling and acoustics.

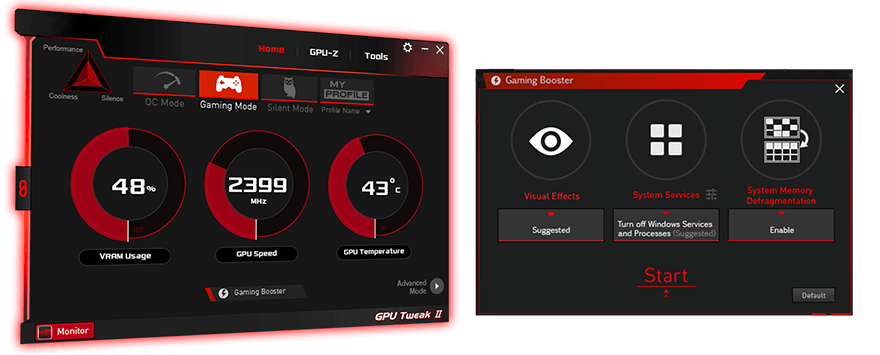

GPU Tweak II | Monitor, tweak, and tune
The ASUS GPU Tweak II utility takes graphics card tuning to the next level.
It allows you to tweak critical parameters including GPU core clocks, memory
frequency, and voltage settings, with the option to monitor everything in
real-time through a customizable on-screen display. Advanced fan control is also
included along with many more features to help you get the most out of your
graphics card.
wtfast | Play lag-free
We've partnered with wtfast to help you to play free from lag, latency
issues, and lost packets. With a 6-month subscription to the wtfast Gamers
Private Network, you'll enjoy lower ping for a smoother, more fluid online
gaming experience. Buy an ASUS graphics card - and don't be left waiting!
XSplit | Premium streaming
XSplit offers a premium streaming experience with in-game annotations and
other advanced features. Enjoy a free license with the purchase of select ASUS
graphics cards. See you online!

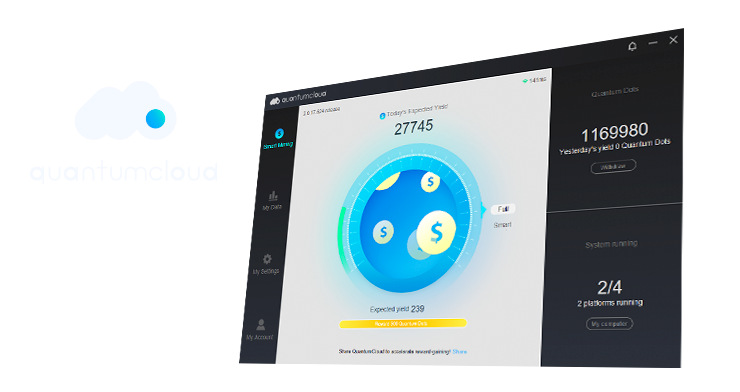

Quantumcloud | Profit from GPU power
Quantumcloud is a simple and secure service that lets you effortlessly earn
extra money by putting your idle GPU to work. Through an easy-to-use app, your
computer can help run cloud-based applications, making you money in the process.
Earnings are automatically transferred to your WeChat or PayPal account, and
your privacy remains intact because Quantumcloud doesn't collect your personal
data. Get started making money today!
Specifications
|
Graphics
Engine |
AMD
Radeon RX 570 |
|
Bus
Standard |
PCI
Express 3.0 |
|
OpenGL
|
OpenGL4.5 |
|
Video
Memory |
GDDR5
8GB |
|
Engine
Clock |
OC
Mode - GPU Boost Clock : 1310 MHz , GPU Base Clock : 1178
MHz |
|
Gaming
Mode (Default) - GPU Boost Clock : 1300 MHz , GPU Base Clock : 1168
MHz |
|
Stream
Processors |
2048 |
|
Memory
Clock |
7000
MHz |
|
Memory
Interface |
256-bit |
|
Resolution
|
Digital
Max Resolution:5120x2880 |
|
Interface
|
DVI
Output : Yes x 2 (Native) (DVI-D) |
|
HDMI
Output : Yes x 1 (Native) (HDMI 2.0b) |
|
Display
Port : Yes x 1 (Native) (DisplayPort 1.4) |
|
HDCP
Support : Yes (2.2) |
|
Maximum
Display Support |
4 |
|
NVlink/
Crossfire Support |
No |
|
Recommended
PSU |
450W |
|
Power
Connectors |
1
x 8-pin |
|
Accessories
|
1
x ROG Velcro Hook & Loop |
|
2
x Orange Color Decals |
|
Software
|
ASUS
GPU Tweak II & Driver |
|
Dimensions
|
9.45
" x 5.04 " x 1.57 " Inch |
|
24
x 12.8 x4 Centimeter |
|
Slot
|
2
slots |
