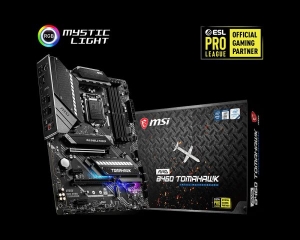

MSI MAG B460 Tomahawk Motherboard

MSI MAG B460 Tomahawk Motherboard

Overview

Conquer the Battlefield

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

• Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
• Supports DDR4 Memory, up to 2933MHz (Max.)
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
• Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN
• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
• Audio Boost: Reward your ears with studio grade sound quality
• Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire

PREMIUM HARDWARE DESIGN

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

M.2 SHIELD FROZR

Worlds fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed. A clearly marked keep-out-zone allows for easy and safe installation and a perfect fit.

12 + 1 +1 DUET RAIL POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. With exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.

CORE BOOST

Core Boost technology combines MSIs premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while high-loading operation.

OVERVOLTAGE PROTECTION

Prevents potential short-circuit damage to the CPU and other critical components.

DIGITALL POWER DESIGN

A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating the perfect conditions for high-loading operation.

PRE-INSTALLED IO SHIELDING

Featuring the pre-installed IO shielding, makes your installation process easier and safer. The patent-pending design protect your IO ports and also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.

XL CLIP

The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.

EZ DEBUG LED

Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.

EZ LED CONTROL

A built-in LED button on the motherboard to control your light effect. Turn on/off your light in a second!

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

ULTIMATE MOTHERBOARD PROTECTION

Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

CERTIFIED FOR GAMING

MSI motherboards has been built and tweaked for hardcore gaming. Feedback from the worlds best esports players and rigorous testing sessions with demanding PC games has resulted in a motherboard thats both powerful and reliable.

WINDOWS 10 CERTIFIED

With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 10. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.

ENHANCED PERFORMANCE

High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

EASY OVERCLOCKING WITH XMP PROFILE

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

FAST AND FUTURE-READY STORAGE

MSI MA series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

OPTANE: BOOST YOUR HDD TO PERFORM LIKE AN SSD

PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel Optane Memory device. Intel Optane technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance.

DRAGON CENTER

MSI brand new Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

True Color

Optimized monitors brightness and color in several modes for different situation, you can also customize by yourself.

Live Update

Never miss out on important updates. MSI Live Update automatically downloads and installs the latest drivers, BIOS and software so you can focus on your work.

User Scenario

One click for setting your computer, even customize own profile as your preference.

Hardware Monitor

Optimized monitors brightness and color in several modes for different situation, you can also customize by yourself.

Total Fan Control

Assume complete control of your fans with Total Fan Control. Set up to four CPU temperature targets and the motherboard will adjust fan speeds automatically.

Mystic Light

Create your own colorful masterpiece with ease. Splash any color you want with just a few clicks!

Product Registration

Register your MSI product to enjoy a host of benefits!

CLICK BIOS 5

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

EZ-Mode

Advanced Mode

GAME BOOST

Quickly overclock your CPU with a single button for more performance.

XMP

Choose from a preset XMP profile and automatically overclock compatible DDR memory.

M-FLASH

Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.

HARDWARE MONITOR

Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.

MEMORY TRY IT

Get extreme speed out of your system memory and get more performance.

SEARCH & FAVORITES

A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

MSI APP PLAYER

Developed under an exclusive partnership with BlueStacks, the MSI APP Player brings seamless gaming experience between mobile games and PC platform, and leverages customized features as specific keyboard lighting and better graphics with multi-task works.

CONNECTIVITY

MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MAG B460 TOMAHAWK features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI LAN MANAGER

- Automatically prioritizes games above other applications -

- Allows you to change applications' traffic priority -

- Allows you to customize bandwidth for each application -

DEDICATED HIGH DEFINITION AUDIO PROCESSOR

Make sure you enjoy the purest sound quality in both stereo and surround sound.

HIGH QUALITY AUDIO CAPACITORS

A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

HIGH QUALITY AUDIO JACKS WITH S/PDIF

Keep your sound perfect by transmit your audio with pure digital signal.

ISOLATED AUDIO DESIGN

Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.

SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS

Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2x2 20G

Using USB 3.2 devices has never been faster! Featuring the Lighting ASmedia 3241 USB 3.2 Gen2x2 controller, MSI motherboards offer never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The Lightning USB 20G connectors are covered with gold to ensure a better signal and performance.

USB FRONT TYPE-C

MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

TRUE COLOR MYSTIC LIGHT ON MOTHERBOARD

Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and 29 LED effects.

Mystic Light Extension

Still not satisfied with the decoration on the ecosystem? The Mystic Light Extension will help you to have more attractive way to decorate you gaming rig by the LED Strips and still under controlled by the Mystic Light application.

JRGB

The JRGB pin header provides the max 3A(12V) power supply for the up to 3 meters 5050 RGB LED strips showing single color.
