Asrock X570 Steel Legend WiFi ax Motherboard
AM4, X570, DDR4 4666+ (OC), SATA93), M.2(2), USB3.2(12), Wifi, BT5.2, LAN, 7.1 CH HD Audio, HDMI, DisplayPort, PCIe4.0, ATX, W10 64-bit

No Longer Available

Part Number:

478532

(?) Brand:

Asrock Web Site

Manuf No:

X570 STEEL LEGEND WIFI AX

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

X570STEELLEGENDWIFIAX, X570 STEEL LEGEND WIFI AX, 5214823

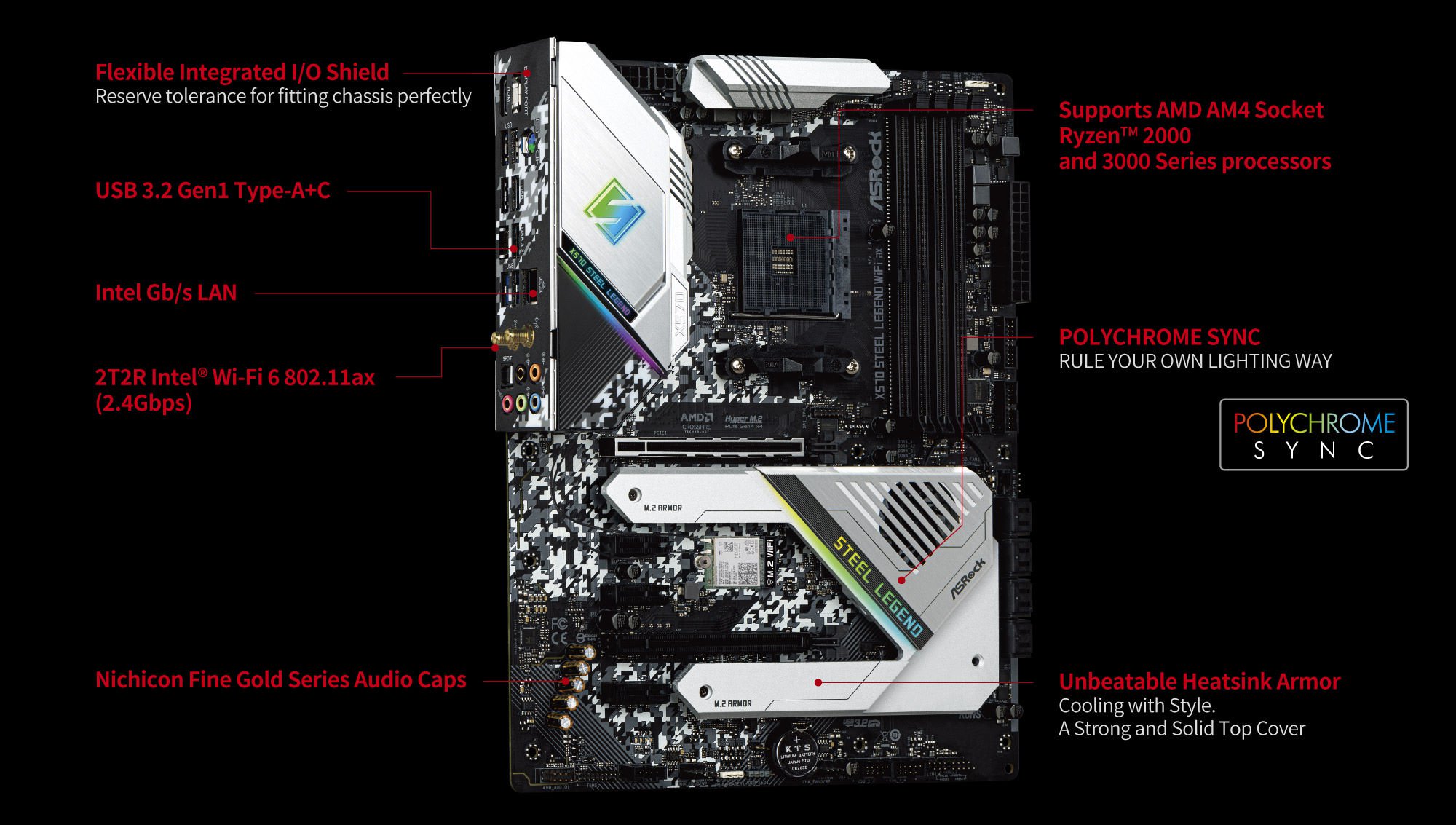

Asrock X570 Steel Legend WiFi ax Motherboard

Overview

Supports AMD AM4 Socket Ryzen 2000 and 3000 Series processors
10 Power Phase Design
Supports DDR4 4666+ (OC)
2 PCIe 4.0 x16, 3 PCIe 4.0 x1
AMD Quad CrossFireX and CrossFireX
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
2 USB 3.2 Gen2 (Rear Type A+C), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
Intel Wi-Fi 6 802.11ax (2.4Gbps) + BT 5, Intel Gigabit LAN
ASRock Polychrome SYNC

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. A motherboard that fulfills every task with style!

Wi-Fi 6 802.11ax

Welcome to the new Wi-Fi standard! ASRocks motherboard equipped with next generation Intel Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

ECC Memory Support

ECC (Error-correcting code) is a method of detecting and correcting single-bit memory errors. Its mission-critical to minimize errors in data especially for the server business and data centers. This motherboard is capable of supporting DDR4 ECC un-buffered memory modules that delivers server-grade performance and rock-solid durability for high-end computing systems, such as scientific or financial computers.

STEEL SLOT WITH NEW-GEN PCI EXPRESS 4.0

The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRocks exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.

Dual Hyper M.2 For SSD

Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

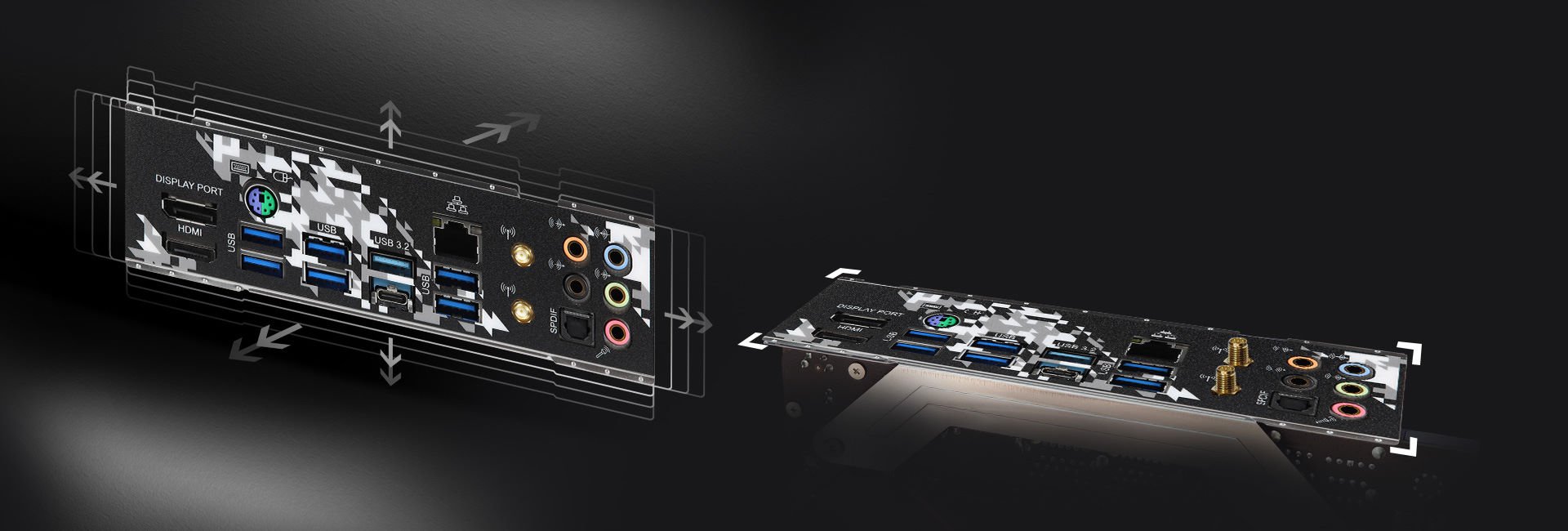

Flexible Integrated I/O Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

10 POWER PHASE DESIGN

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

PREMIUM 60A POWER CHOKE

ASRocks premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Post Status Checker

An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

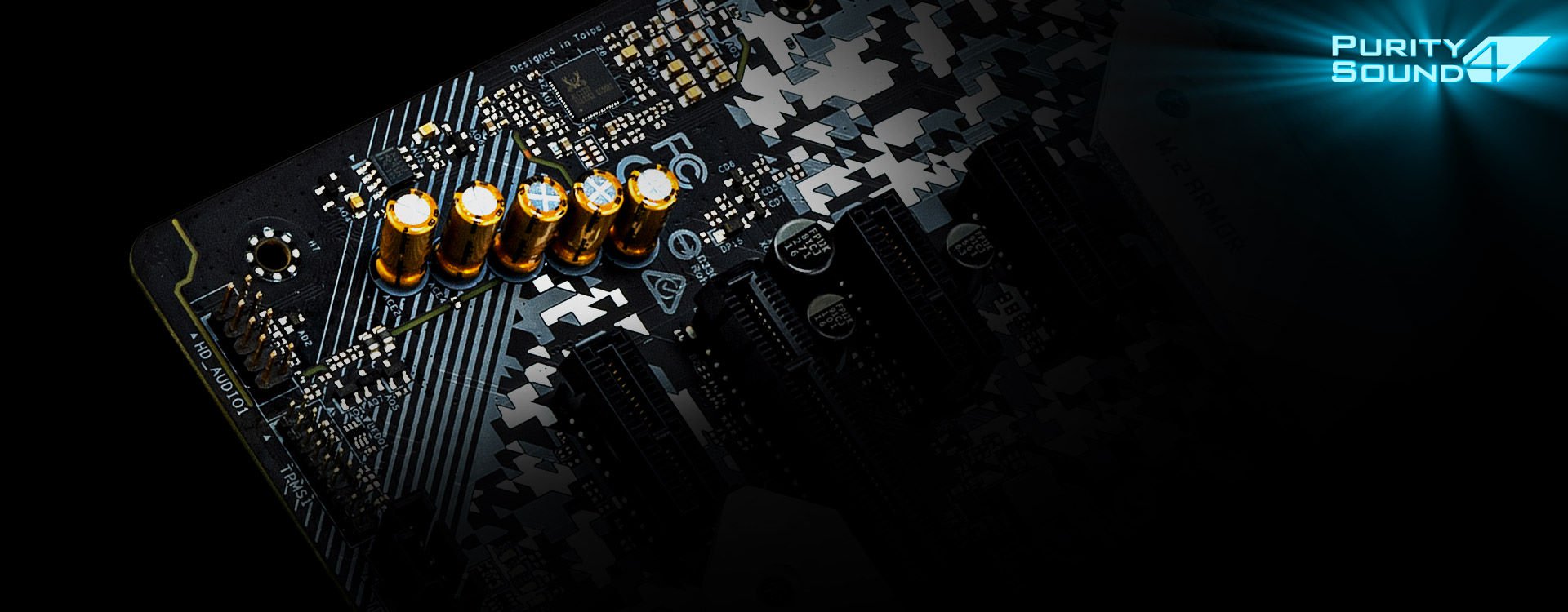

Purity Sound 4

It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.

Thunderbolt 3 AIC Header

Thunderbolt 3 is no longer limited to certain chipset, ASRock is the first motherboard manufacturer to skillfully implement the Thunderbolt 3 technology onto AMD X570 motherboards. All you need is a Thunderbolt 3 AIC R2.0 card!

AMD StoreMI Technology

A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology combines these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.

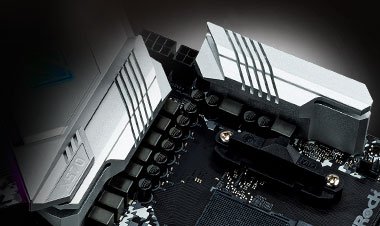

XXL Aluminum Alloy Heatsink

Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

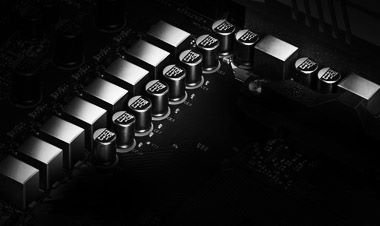

Premium 60A Power Choke

Compared to traditional chokes, ASRocks premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Dr. MOS

Premium Memory Alloy Choke

Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

Combo Caps

A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

Nichicon 12K Black Caps

Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

I/O Armor

A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

Matte Black PCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboards components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Specifications

Unique Feature	ASRock USB 3.2 Gen2
	- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
	- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
	ASRock Super Alloy
	- XXL Aluminum Alloy Heatsink
	- Premium 60A Power Choke
	- 50A Dr.MOS
	- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
	- Combo Caps (Nichicon 12K Black Caps)
	- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
	- I/O Armor
	- Matte Black PCB
	- High Density Glass Fabric PCB
	- 2oz Copper PCB
	Intel 802.11ax WiFi
	ASRock Steel Slot Gen4
	ASRock Full Coverage M.2 Heatsink
	ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
	ASRock Ultra USB Power
	ASRock POST Status Checker (PSC)
	ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
	ASRock Live Update & APP Shop
CPU	- Supports AMD AM4 socket Ryzen 2000 and 3000 series processors*
	- Intersil Digital PWM
	- 10 Power Phase design
Chipset	- AMD X570
Memory	- Dual Channel DDR4 Memory Technology
	- 4 x DDR4 DIMM Slots
	- AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
	- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
	- AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
	- Max. capacity of system memory: 128GB**
	- Supports Extreme Memory Profile (XMP) memory modules
	- 15 Gold Contact in DIMM Slots
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
	- Supports "Plug and Play"
	- ACPI 5.1 compliance wake up events
	- Supports jumperfree
	- SMBIOS 2.3 support
	- CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
Graphics	- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
	- DirectX 12, Pixel Shader 5.0
	- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
	- Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers
	- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
	- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
	- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
	- Supports HDR (High Dynamic Range) with HDMI 2.0
	- Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports
	- Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports
	- Supports Microsoft PlayReady
	*Actual support may vary by CPU
	**The Max shared memory 16GB requires 32GB system memory installed.
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
	- Premium Blu-ray Audio support
	- Supports Surge Protection
	- Supports Purity Sound 4
	- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
	- Pure Power-In
	- Direct Drive Technology
	- PCB isolate shielding
	- Impedance Sensing on Rear Out port
	- Individual PCB Layers for R/L Audio Channel
	- Gold Audio Jacks
	- 15 Gold Audio Connector
LAN	- Gigabit LAN 10/100/1000 Mb/s
	- GigaLAN Intel I211AT
	- Supports Wake-On-LAN
	- Supports Lightning/ESD Protection
	- Supports Energy Efficient Ethernet 802.3az
	- Supports PXE
Wireless LAN	- Intel 802.11ax WiFi Module
	- Supports IEEE 802.11a/b/g/n/ax
	- Supports Dual-Band (2.4/5 GHz)
	- Supports high speed wireless connections up to 2.4Gbps
	- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
	- Supports Bluetooth 5.0 + High speed class II
	- Supports MU-MIMO
Slots	AMD Ryzen series CPUs (Matisse)
	- 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))*
	AMD Ryzen series CPUs (Pinnacle Ridge)
	- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))*
	AMD Ryzen series CPUs (Picasso)
	- 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4))*
	- 3 x PCI Express 4.0 x1 Slots
	- Supports AMD Quad CrossFireX and CrossFireX
	- 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ax module
	- 15 Gold Contact in VGA PCIe Slot (PCIE1)
	*Supports NVMe SSD as boot disks
Storage	- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
	- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*
	- 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)*
	*If Thunderbolt support is enabled, SATA type M.2 will be disabled.
	Supports NVMe SSD as boot disks
	Supports ASRock U.2 Kit
	Support RAID 0/1/10
Connector	- 1 x Power LED and Speaker Header
	- 1 x AMD Fan LED Header*
	- 1 x RGB LED Header**
	- 1 x Addressable LED Header***
	- 1 x CPU Fan Connector (4-pin)****
	- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
	- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
	- 1 x 24 pin ATX Power Connector
	- 1 x 8 pin 12V Power Connector
	- 1 x 4 pin 12V Power Connector
	- 1 x Front Panel Audio Connector (15 Gold Audio Connector)
	- 1 x AMD LED Fan USB Header
	- 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC Card R2.0 only)
	- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
	- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
	- 1 x SPI TPM Header*******
	*The AMD Fan LED Header is compatible with a regular RGB LED stripe.
	The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
	**Supports in total up to 12V/3A, 36W LED Strip
	***Supports in total up to 5V/3A, 15W LED Strip
	****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
	*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
	******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
	CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O	- 2 x Antenna Ports (on I/O Panel Shield)
	- 1 x PS/2 Mouse/Keyboard Port
	- 1 x HDMI Port
	- 1 x DisplayPort 1.2
	- 1 x Optical SPDIF Out Port
	- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
	- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
	- 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
	- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
	- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
	*Ultra USB Power is supported on USB3_56 ports.
	ACPI wake-up function is not supported on USB3_56 ports.
Software and UEFI	Software
	- ASRock A-Tuning
	- ASRock Polychrome SYNC
	- ASRock XFast LAN
	UEFI
	- ASRock Full HD UEFI
	- ASRock Instant Flash
	*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories	- Quick Installation Guide, Support CD
	- 4 x SATA Data Cables
	- 3 x Screws for M.2 Sockets
	- 1 x ASRock WiFi 2.4/5 GHz Antenna
	- 2 x Screws for M.2 Sockets
	- 2 x Standoffs for M.2 Sockets
Hardware Monitor	- Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
	- Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
	- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
	- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
	- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
	- 2oz Copper PCB
OS	- Microsoft Windows 10 64-bit
Certifications	- FCC, CE
	- ErP/EuP ready (ErP/EuP ready power supply is required)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 36 Month Manufacturers Return To Base

Full manufacturers warranty details are available at the manufacturers (Asrock) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product

Click on a thumbnail to view it below

No related products found.

L7: 17 | TM: 4 | LM: 49 | TY: 262 | T: 1630

Reference Tools

Kingston
Memory Selector

Corsair
PSU selector

Sister Sites

We accept the following with No surcharge on VISA, Mastercard and Paypal!

All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.

Asrock X570 Steel Legend WiFi ax Motherboard
