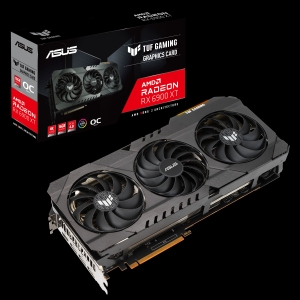

Asus TUF GAMING Radeon RX 6900 XT OC Edition Video Card
Overview
ASUS TUF GAMING Radeon RX 6900 XT is a truly tenacious
performer
- Axial-tech fan design has been enhanced with more fan blades and a new
rotation scheme.
- Dual ball fan bearings can last up to twice as long as sleeve bearing
designs.
- An all-aluminum shroud, reinforced frame, and metal backplate enhance
durability.
- MaxContact heat spreader features a super flat surface for improved
thermal transfer.
- A 144-hour validation program puts cards through a series of stringent
tests to ensure compatibility with the latest games.
- A vented backplate prevents hot air from recirculating through the cooling
array.
- GPU Tweak II provides intuitive performance tweaking, thermal controls,
and system monitoring.
Specifications
Graphic
Engine |
AMD
Radeon RX 6900 XT |
Bus
Standard |
PCI
Express 4.0 |
OpenGL |
OpenGL4.6 |
Video
Memory |
16GB
GDDR6 |
Engine
Clock |
OC
mode : Up to 2340 MHz (Boost Clock)/ Up to 2105 MHz (Game
Clock) |
|
Gaming
mode : Up to 2310 MHz (Boost Clock)/ Up to 2075 MHz (Game
Clock) |
CUDA
Core |
5120 |
Memory
Speed |
16
Gpbs |
Memory
Interface |
256-bit |
Resolution |
Digital
Max Resolution 7680 x 4320 |
Interface |
Yes
x 1 (Native HDMI 2.1) |
|
Yes x 3 (Native DisplayPort 1.4a) |
|
HDCP
Support Yes (2.3) |
Maximum
Display Support |
4 |
NVlink/
Crossfire Support |
Yes |
Accessories |
1
x TUF certificate of Reliability |
|
1
x Collection card |
|
1
x ASUS ruler |
|
1x
Speedsetup Manual |
Software |
ASUS
GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please
download all software from the support site. |
Dimensions |
13
" x 5.52 " x 2.28 " Inch |
|
32
x 14.02 x 5.78 Centimeter |
Recommended
PSU |
850W |
Power
Connectors |
2
x 8-pin |
Slot |
2.9
Slot |
Note |
*
Crossfire Support - for DirecX 12 and Vulkan |
|
*
Game Clock is the expected GPU clock when running typical gaming
applications, set to typical TGP (Total Graphics Power). Actual individual
game clock results may vary. |
|
*
Boost Clock is the maximum frequency achievable on the GPU running a
bursty workload. Boost clock achievability, frequency, and sustainability
will vary based on several factors, including but not limited to: thermal
conditions and variation in applications and
workloads. |
