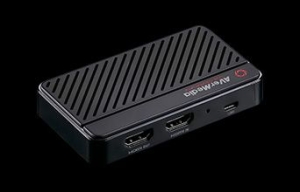

Avermedia Live Gamer MINI
Overview
The Live Gamer MINI is here to help you get into the streaming spotlight as
quick and easy as possible! Following steps of its predecessor (LGP Lite), the
LGM keeps things as simple as possible with HDMI in and passthrough for zero
latency Full HD gameplay and micro USB for PC or Mac
connectivity.
Powerful beyond its size
Our smallest capture device yet! Dont be fooled by its size, the LGM has a
H.264 hardware encoder built into its core. And its compact form factor allows
you to just put it in your pocket and move any location to setup your next
stream as easy as possible.
Full HD Zero-Lag Pass-through
Zero latency gameplay is of great importance to have the best gaming
experience. Thus, the LGM delivers 100% zero latency Full HD pass-through, this
way you can enjoy you gameplay as it was meant to be.
Easiest Set up ever
The LGM takes full advantage of UVC technology, which basically standardizes
video drivers across Windows and Mac. In other words, all you need to do is plug
your LGM to your PC or Mac and its ready to record and stream.
Record gameplay backups without using your
CPU
AVerMedia STREAM ENGINE lets you record backups of your gameplay while using
3rd party software (No Overlays included) directly to your storage without
putting any load on to your CPU. You might be thinking - magic! -No, its
AVerMedia.
RECentralPowerful Streaming Software
A powerful streaming and recording software pack with great functions like
multi-stream, rich overlays, chroma key and more, RECentral is the perfect
application to unleash your LGMs full potential.
![](/images/extra/49/P496543-i1.png)

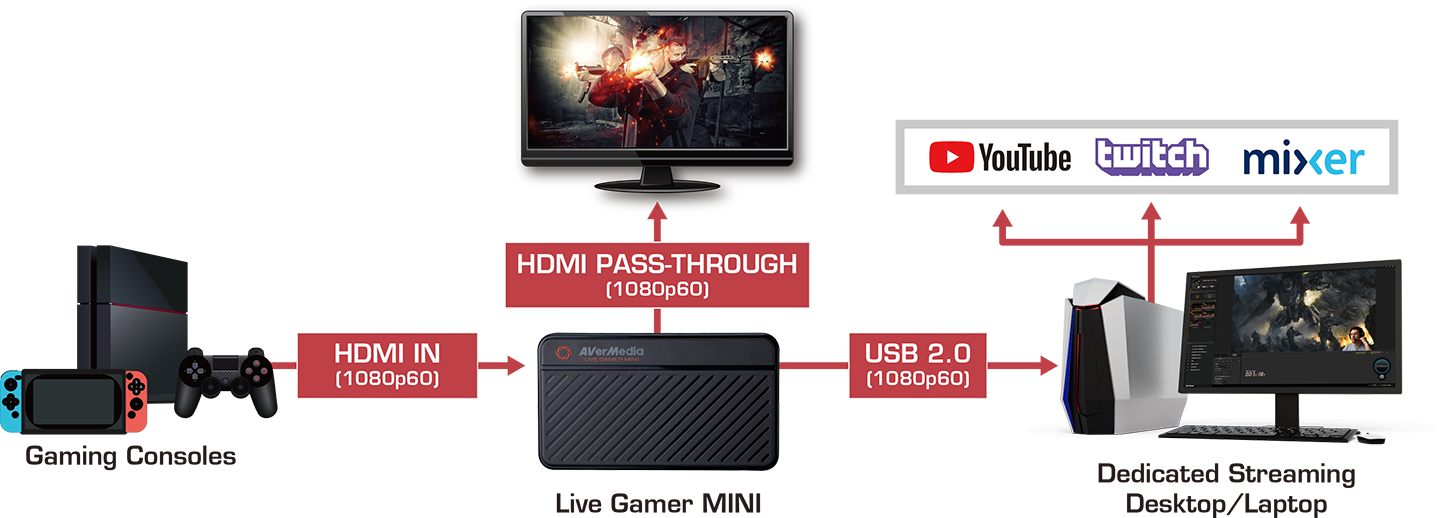

Connections
Specifications
Technical
Specifications |
Interface:USB
2.0 (USB Micro) |
|
Video
Input:HDMI |
|
Video
Output (Pass-Through):HDMI |
|
Audio
Input:HDMI |
|
Audio
Output (Pass-Through):HDMI |
|
Max
Pass-Through Resolution :1080p60 |
|
Max
Record Resolutions:1080p60 |
|
Supported
Resolutions (Video input):1080p, 1080i, 720p, 576p, 480p,
480i |
|
Record
Format:MPEG 4 (H.264+AAC) / Supports hardware
encoding |
|
Dimension
(W x D x H):100 x 57 x 18.8 mm (3.93 x 2.24 x
0.74in) |
|
Weight:74.5
g (2.63oz) |
|
Notes: |
|
1.
LGM does not support viewing/recording/streaming of HDCP protected
signals. |
|
2.
LGM does not support 4K, HDR, wide angle resolutions or high refresh
rates. |
System
Requirements |
(For
dedicated streaming PC) |
|
Operating
Sytem: Windows 10 (Support UVC Protocol) |
|
Desktop |
|
-
Intel i5-3330 or comparable (i7 recommended) |
|
AMD
A10-7890K (Quad-core) or above |
|
-
NVIDIA GTX 650 / AMD Radeon R7 250X or above are
recommended |
|
-
4GB RAM |
|
Laptop |
|
-
Intel Core i7-4810MQ |
|
-
NVIDIA GeForce GTX 870M |
|
-
4 GB RAM (8 GB recommended) |
|
Mac
System Requirement: |
|
Operating
Sytem: macOS X 10.13 or later (Support UVC
Protocol) |
|
iMac
2013 |
|
-
2.9GHz quad-core Intel Core i5 processor |
|
-
NVIDIA GeForce GT750M with 1GB of GDDR5 memory |
|
-
16GB of 1600MHz DDR3L onboard memory |
|
MacBook
Pro 2013 |
|
-
2.5GHz quad-core Intel Core i7 processor |
|
-
NVIDIA GeForce GT 750M with 2GB of GDDR5 memory and automatic graphics
switching |
|
-
16GB of 1600MHz DDR3L onboard memory |
|
MacBook
Pro 2017 |
|
-
2.8GHz quad-core Intel Core i7 processor |
|
-
AMD Radeon Pro 555(2GB GDDR5) at least |
|
-
16GB of 2133MHz LPDDR3 at least |
What's
in the box |
Live
Gamer MINI (GC311) |
|
USB
Micro to Type-A cable |
|
Quick
guide |
