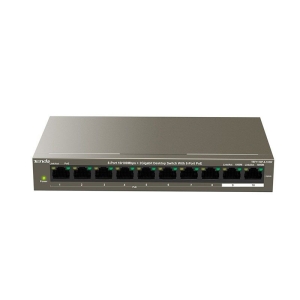

Tenda TEF1110P-8-102W 10/100Mbps+2 Gigabit Desktop Switch

Standard&Protocol

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE 802.3af, IEEE 802.3at

MTBF

50,000 hours(about 5 years)

Indicator

Link/Act, PoE Status, Power, 1000M

Fixed Port

8* 10/100Base-TX RJ45 Ports(Data/Power)

2*10/100/1000Base-T RJ45 Port(Data)

Lightning Protection

6KV

Wire-speed forwarding

Support

Switching Capacity

5.6 Gbit/s

MAC Address Table

16K MAC

PoE supply management

Port 1 to Port 8 support standard IEEE802.3at/af power( maximum power for each port is 30W)PoE power type is end-span(1245+, 3678- line pair)

in full configuration<102W

PoE Max Power Supply99W

Dimension

177.5mm*104mm*26mm

Input Voltage

AC100240V~ 50/60Hz

DC51V /2.1A (Power Adapter)

Environment

Operating Temperature: 0~40 (32~104)

Storage Temperature: -40~70 (-40~158)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

One-button-start Mode

Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.

VLAN Mode: 1-8 port can be isolated each other but 1-8 port can connect to 9/10 port after open VLAN to stop broadcast storm to increase forwarding rate of frame. Extend Mode: If Extend mode is enabled, the delivery distance of powering and network data is up to 250m (10Mbps).

Certification

3C, FCC, CE, RoHS
