CIPFTX-3100 | Canon imagePROGRAF TX-3100 w. Network

The new 36-inch TX-3100 large-format printer has been upgraded with faster printing speeds, an enhanced automatic roll loading function, and free-size borderless printing to improve productivity and efficiency. Preprocessing technology between pages and a faster cutter speed help to achieve printing speeds up to 3.2 ppm (plain paper, drawings) during continuous printing. With these new features, the TX-3100 is poised to become the next standard of engineering printers.

The Intelligent Media Handling feature allows the user to simply and easily slide in the media from the front of the printer with a roll placed in the opened drawer. The printer automatically and effortlessly detects media type, width, and length, for the user's convenience.

Media Output Options

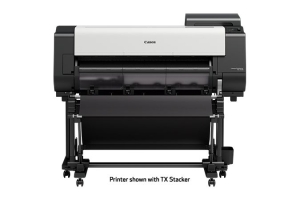

The TX Stacker, built for high productivity and increased flexibility, can stack up to 100 sheets of documents of mixed sizes, including ARCH C, ARCH D, or ARCH E/E1 sizes. The variety of configurations that the TX Stacker can be positioned into helps to make prints easily accessible to pick up for on-the-go printing. When not in use, the TX Stacker can be folded up to conserve space. It is available for purchase with the TX Series.

The multi-positional catch basket, available for purchase with the TX Series, can be adjusted to enable various output positions and options: Catch Basket, Flatbed Stacking, Slope (can be used to display a print).

The optional Multifunction Roll System is a versatile media handling solution system that enables either a second roll of media to be loaded on the printer, or can be configured as a bi-directional media take-up unit. As a take-up unit the operator can choose to use this option to rewind longer printouts, with the print surface on the outside or on the inside of the roll. The optional second roll unit allows for the instant switching between different media types or the use of two rolls of the same paper for up to 190 D-sized prints per hour.

The TX-3100 features the TD pigment ink set. This ink was formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine this pigment ink with water resistant media and you have a printed drawing that can withstand many outdoor conditions, especially outdoor job sites such as construction sites. 970 ml of ink ships standard with the TX-3100. Available in 160 ml, 330 ml, and 700 ml ink tanks1, you have the ability to purchase a combination of ink sizes based on your printing volume.

The 6-channel PF-06 Print Head is engineered to work with the printers high-speed carriage and high-frequency ink ejection to help facilitate fast printing. This printer boasts Canon's print-head technology that lays down ink with outstanding speed and accuracy.

The PF-06 print head incorporates a nozzle orifice shape to help minimize mist spray, producing clean lines and text. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 5 picoliter-size ink droplets that help produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output (max.) with fine lines that are accurate to 0.10% and as thin as 0.02mm.

The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.

The TX-3100 supports the security features often required for large-scale business segments, such as finance institutions or government and military. Print with ease knowing your files are more protected with Canons advanced security technology. Direct USB thumb drive printing supports JPEG and PDF file formats. Simply load your files onto your USB drive, step right up to the printer and plug your USB drive into the port. The TX-3100 supports selected page preview. When printing a multi-page PDF file from a USB, the user can select a certain page on the operation panel and display it in a preview window. Canon's advanced print head technology achieves speeds up to 190 D-sized prints per hour on uncoated media. Powering these incredible print speeds is Canon's L-COA processor, which controls the optimal ink layout helping to ensure high resolution output. A large size 4.3" LCD touch screen has been integrated into the TX-3100. The large and more vibrant screen displays information such as remaining ink levels. The operation guide can easily be displayed from this screen and be scanned with a smartphone to access a library of information on how to replace consumables.

• Secure Communication
• 802.1x Authentication
• SNMPv3
• SSL/TLS
• IPsec
• Functionality Restrictions
• Panel Lock by Remote UI
• Role-based access control
• Front-panel access lock
• Remote UI Multilevel
• Hide IP from Panel
• Panel Access Control
• Job Storage and PIN Printing
• Secure Storage
• Self Encrypting Hard Disk
• Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)
• Secure File Erase*
• The following functions can be disabled in administrator mode:
• Direct USB Thumb Drive Printing
• Internet Connection

The TX-3100 supports borderless printing on all roll widths and custom widths as well as three sized borderless printing for a reduction in paper trimming.

Printing jobs quickly is critical on the work site and in the office. The Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow- perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation. Wi-Fi connectivity is standard for the imagePROGRAF TX Series printers.

A built-in 500GB hard drive within the printer can increase productivity by relieving workload from the host computer, while providing a large capacity for print job data storage and retrieval.
