IMG 1 of 1
No Longer Available

Part Number:
509491
(?) Brand:
Manuf No:
TUF 3-RX5700XT-O8G-EVO-GAMING
TUF 3RX5700XTO8GEVOGAMING
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
TUF3RX5700XTO8GEVOGAMING, TUF 3-RX5700XT-O8G-EVO-GAMING, II40364

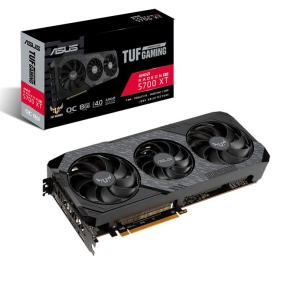

Asus TUF 3-RX5700XT-O8G-EVO-GAMING Video Card



Overview

The ASUS TUF Gaming X3 Radeon RX 5700 XT EVO powers through 1080p gaming

  • OC Edition: Boost Clock ~1980 MHz (OC Mode)/ ~1905 MHz (Gaming Mode)
  • Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
  • 0dB technology lets you enjoy light gaming in relative silence.
  • 2.7-slot design expands cooling surface area to make the most of the three powerful fans.
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
  • Auto-Extreme Technology uses automation to enhance reliability.
  • A protective backplate secures components during transportation and installation.
  • TUF compatibility testing ensures TUF Gaming and TUF alliance products work together flawlessly.
  • A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.

Specifications

Graphic Engine

AMD Radeon RX 5700 XT

Bus Standard

PCI Express 4.0

OpenGL

OpenGL4.6

Video Memory

8GB GDDR6

Engine Clock

OC Mode : Up to 1870 MHz (Game clock) / Up to 1980 MHz (Boost clock)

Gaming Mode : Up to 1795 MHz (Game clock) / Up to 1905 MHz (Boost clock)

Stream Processors

2560

Memory Speed

14Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.0b)

Yes x 3 (Native DisplayPort 1.4)

HDCP Support Yes (2.3)

Maximum Display Support

6

NVlink/ Crossfire Support

Yes ***

Accessories

1 x Thank you card

1 x Speedsetup manual

Software

ASUS GPU Tweak II & Drivers: please download all software from the support site.

Dimensions

11.13 " x 5.06 " x 2.12 " Inch

28.26 x 12.85 x5.38 Centimeter

Recommended PSU

600W

Power Connectors

1 x 6-pin, 1 x 8-pin

Slot

2.7 Slot

Note

* Crossfire Support - Yes for DirecX 12 and Vulkan

* Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

* Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 36 Month Manufacturers Return To Base

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
