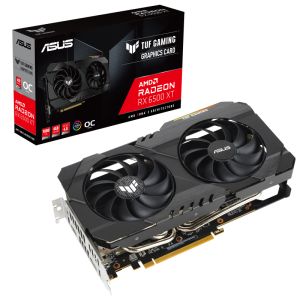

ASUS TUF Gaming Radeon RX 6500 XT OC edition 4GB GDDR6 Video
Card
Overview
ASUS TUF Gaming Radeon RX 6500 XT OC Edition 4GB GDDR6 is a supreme stalwart
of cooling and durability
- Axial-tech fan design features a smaller fan hub that facilitates longer
blades and a slimmed down barrier ring that provides better airflow through
the cooling array.
- Dual ball fan bearings can last up to twice as long as sleeve bearing
designs.
- A 2.7-slot design expands cooling surface area to make the most of the
powerful Axial-tech fans.
- An all-aluminum shroud and metal backplate enhance
durability.
- A 144-hour validation program puts cards through a series of stringent
tests to ensure compatibility with the latest games.
- A vented backplate prevents hot air from recirculating through the cooling
array.
Specifications
Graphic
Engine |
Radeon
RX 6500 XT |
Bus
Standard |
PCI
Express 4.0 |
OpenGL |
OpenGL4.6 |
Video
Memory |
4GB
GDDR6 |
Engine
Clock |
OC
mode: up to 2825 MHz(Boost Clock)/ up to 2705 MHz(Game
Clock) |
|
Gaming
mode: up to 2825 MHz(Boost Clock)/ up to 2685MHz(Game
Clock) |
Stream
Processors |
1024 |
Memory
Speed |
18
Gbps |
Memory
Interface |
64-bit |
Resolution |
Digital
Max Resolution 7680 x 4320 |
Interface |
Yes x 1 (Native HDMI
2.1) |
|
Yes x 1 (Native DisplayPort 1.4a) |
|
HDCP
Support Yes (2.3) |
Maximum
Display Support |
2 |
NVlink/
Crossfire Support |
Yes |
Accessories |
1
x Speedsetup Manual |
Software |
ASUS
GPU Tweak II & Drivers: please download all software from the support
site. |
Dimensions |
250
x 147 x 54 mm |
|
9.76
x 5.78 x 2.12 inch |
Recommended
PSU |
500W |
Power
Connectors |
1
x 6-pin |
Slot |
2.7
Slot |
Note |
*
Our wattage recommendation is based on a fully overclocked GPU and CPU
system configuration. For a more tailored suggestion, please use the
Choose By Wattage feature on our PSU product page:
https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html |
|
*
All specifications are subject to change without notice. Please check with
your supplier for exact offers. Products may not be available in all
markets. If you do not use the latest and current specifications of ASUS
products, you shall be liable for all loss and damage claimed by third
party to ASUS based on false advertising or any other issues caused from
using false specifications of ASUS products. |
|
*
Crossfire Support for DirecX 12 and Vulkan |
|
*
Game Clock is the expected GPU clock when running typical gaming
applications, set to typical TGP (Total Graphics Power). Actual individual
game clock results may vary. |
|
*
Boost Clock is the maximum frequency achievable on the GPU running a
bursty workload. Boost clock
ach |
