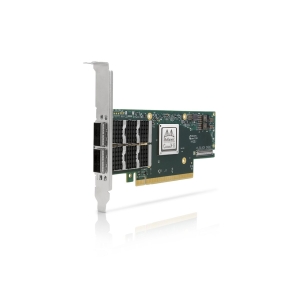

NVIDIA MCX653106A-ECAT-SP ConnectX-6 VPI Adapter Card
HDR100/EDR/100GbE
Overview
NVIDIA MCX653106A-ECAT-SP ConnectX-6 VPI Adapter Card HDR100 EDR InfiniBand
and 100GbE Dual-Port QSFP56 PCIe 3.0/4.0 x16 Tall Bracket (-SP indicates Single
Pack)
ConnectX-6 VPI Card HDR100 EDR InfiniBand and 100GbE Ethernet Adapter
Card
ConnectX-6 Virtual Protocol Interconnect (VPI) cards are a groundbreaking
addition to the ConnectX series of industry-leading network adapter cards.
Providing two ports of HDR100 EDR InfiniBand and 100GbE Ethernet connectivity,
sub-600ns latency and 215 million messages per second, ConnectX-6 VPI cards
enable the highest performance and most flexible solution aimed at meeting the
continually growing demands of data center applications. In addition to all the
existing innovative features of past versions, ConnectX-6 cards offer a number
of enhancements to further improve performance and scalability.
ConnectX-6 VPI series supports HDR, HDR100, EDR, FDR, QDR, DDR and SDR
InfiniBand speeds as well as 200, 100, 50, 40, 25, and 10Gb/s Ethernet
speeds.
Features
- Up to HDR100 EDR InfiniBand and 100GbE Ethernet connectivity per
port
- Max bandwidth of 200Gb/s
- Up to 215 million messages/sec
- Sub 0.6usec latency
- Block-level XTS-AES mode hardware encryption
- FIPS capable
- Advanced storage capabilities including block-level encryption and
checksum offloads
- Supports both 50G SerDes (PAM4) and 25G SerDes (NRZ) based
ports
- Best-in-class packet pacing with sub-nanosecond accuracy
- PCIe Gen 3.0 and Gen 4.0 support
- RoHS compliant
- ODCC compatible
Benefits
- Industry-leading throughput, low CPU utilization and high message
rate
- Highest performance and most intelligent fabric for compute and storage
infrastructures
- Cutting-edge performance in virtualized networks including Network
Function Virtualization (NFV)
- Host Chaining technology for economical rack design
- Smart interconnect for x86, Power, Arm, GPU and FPGA-based compute and
storage platforms
- Flexible programmable pipeline for new network flows
- Efficient service chaining enablement
- Increased I/O consolidation efficiencies, reducing data center costs &
complexity
