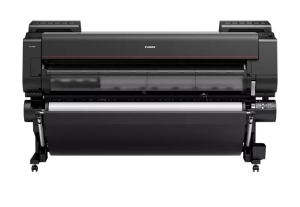

Canon imagePROGRAF PRO-6100 11-Color PChroma Optimizer Printer
  • 600DPI, 60", 500GB, 2400x1200dpi, USB2.0

IMG 1 of 1
No Longer Available
Part Number:
521050
(?) Brand:
Canon Web Site
Manuf No:
BDL_IPFPRO6100_IND
Shipping Weight:
166 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
CIPFPRO-6100, BDL_IPFPRO6100_IND, 4549292147407

Canon imagePROGRAF PRO-6100



Overview

  • LUCIA PRO 11-Color Plus Chroma Optimizer Ink Set
  • Multifunction Roll Unit
  • Intelligent Media Handling
  • Color Calibration
  • Professional Print & Layout Software

The 60-inch imagePROGRAF PRO-6100 printer is designed to exceed expectations for image quality and color consistency in a large format printer. The use of a 1.28-inch wide 12-channel integrated compact print head, LUCIA PRO ink set plus Chroma Optimizer, a high-precision mechanical platform and the L-COA PRO high-speed image processing engine achieves a balance between exceptional print quality and speed.

The imagePROGRAF PRO-6100 has been designed to include intelligent technology for advanced media handling, increased security features, borderless printing and improved operational design.

Bring your prints to life with the imagePROGRAF PRO Series.

Specifications

Printer Type

11-Color plus Chroma Optimizer 60-inch Printer

Number of Nozzles

Total: 18,432

All colors: 1,536 nozzles

Nozzle Pitch

600 dpi x 2

Non-firing nozzle detection and compensation

Print Resolution (Up to)

2400x1200dpi (Max)

OS Compatibility

32bit: Windows (7/8.1/10)

64bit: Windows 7, Windows 8.1, Windows 10Windows Server 2008R2, Windows Server 2012/2012R2Windows Server 2016, Windows Server 2019

Mac (OS 10.11.6), (Mac OS 10.12 10.15)

Standard Interfaces

USB 2.0 High-Speed

10/100/1000 Base-T/TX

Wireless LAN (IEEE 802.11 b/g/n)

USB Thumb Drive

Ink Droplet Size

minimum 4 picoliter

Pigment based LUCIA PRO Ink

Ink Capacity

160, 330, or 700ml per color*

Color Set

Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Gray, Photo Gray, Red, Blue, +Chroma Optimizer

Hard Drive

500GB

Media Width

Cut Sheet - 6"- 60"

Roll Feed - 6" - 60"

Media Thickness

Roll: 0.07 - 0.8 mm (2.8 - 31.5mil)

Maximum Roll Print Length

Roll Feed - 59 (18 meters)**

Maximum Media Roll Diameter

6.7" (170mm)

Borderless Printing Width

Custom roll width 6" 60" with micro margin technology

Paper Feed Method

Roll Feed: Two Roll, Front-loading, Front Output

Manual Feed: Front-loading, Front Output

Languages

Swift Graphic Raster (SGRaster)

Noise Level Approx

Operation: 48 dB (A) or less

Accoustic Power: 6.6 Bels or less

Physical Dimensions

46.0" (H) x 78.7" (W) x 38.7" (D) (with basket open)

Weight

approx.368 lbs (roll holder included, no inks, no print heads)

Power Source

AC 100-240V 50-60Hz

Power Consumption

Maximum: 97 W or less

Standby 2 W or less

Power Off: 0.3 W or less

Operating Environment

Temperature: 59 - 86F

Relative Humidity: 10-80% (No Condensation)

User-replaceable items

Print Head (PF-10)

Maintenance Cartridge (MC-30)

Ink Tanks (PFI-1100/PFI-1300/PFI-1700)

Software Included

imagePROGRAF Printer Driver, Professional Print & Layout, Quick Utility Toolbox, Accounting Manager, Device Management Console, Media Configuration Tool, Printer Driver Extra Kit (Free Layout and Advanced Preview), Gallery Wrap Feature, Direct Print & Share

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Canon) web site.
