All stock codes associated to this product
SSPMSVESA, 4688066, 0065030882347
| Technical details |
|---|
| VESA mounting | Yes |
| Material | Steel |
| Product colour | Black |
| Compatibility | DK30C2DPEP, DK30C2DPEPUE, DK30C2DPPD, DK30C2DPPDUE, TB3CDK2DP, TB3CDK2DPUE, HB31C3A1CS, HB31C4AS, HB31C2A1CGS |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Weight & dimensions |
|---|
| Weight | 530 g |
| Width | 120 mm |
| Depth | 214 mm |
| Height | 3 mm |
| Packaging data |
|---|
| Screws included | Yes |
| Package width | 145 mm |
| Package depth | 290 mm |
| Package height | 5 mm |
| Package weight | 600 g |
| Logistics data |
|---|
| Master (outer) case width | 24 cm |
| Master (outer) case length | 30 cm |
| Master (outer) case height | 24 cm |
| Quantity per master (outer) case | 20 pc(s) |

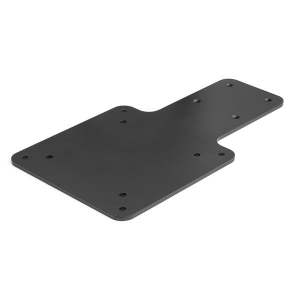

Back-of-Monitor Mounting Plate | For Compatible StarTech.com Docks and Hubs
Create a clutter-free workspace by mounting your docking station or hub, freeing up space on your desktop. This VESA compatible docking station mount makes it easy to attach a compatible StarTech.com dock or hub to the backside of your monitor.
VESA Compatible Mounting Adapter
The docking station mounting plate attaches easily to monitors with a 75x75 or 100x100 mm VESA hole pattern.
Robust Construction
Made in Canada, the sturdy and durable dock and hub mount is engineered from 10 gauge steel (3.3 mm thick).
Versatile Use
The VESA docking station and hub mount works with monitors mounted on a stand, or attached to a monitor arm. The docking station mount provides a great way to free up desk space in offices in business or commercial spaces. It's also ideal for space-constrained areas, including hot desks and shared workstations, cubicles, mobile and wall-mounted workstations, and home offices.
Save Desk Space
This innovative mount is designed to work exclusively with compatible StarTech.com products including:
4-Port USB-C 10Gbps Hub - USB 3.1 to 3x USB-A + 1x USB-C (HB31C3A1CS)
4-Port USB-C 10Gbps Hub - USB 3.1 to 4x USB-A - Self Powered (HB31C4AS)
3-Port USB-C Hub with GbE - USB 3.1 (10Gbps) (HB31C2A1CGS)
USB-C & USB-A 5Gbps Docking Station - USB 3.1 (5Gbps) Universal Laptop Docking Station (DK30C2DPPDUE - UK/EU)
Thunderbolt 3 Dual Monitor Docking Station - Thunderbolt 3 w/ USB-C compatibility - Dual Monitor 4K60Hz (TB3CDK2DPUE - UK/EU)
USB-C 3.1 5Gbps Dual Monitor Docking Station - USB-C 3.1 Gen 1 - Dual Monitor 1080p (DK30CHHPDUK - UK only)
USB-C & USB-A 5Gbps Docking Station - USB 3.1 (5Gbps) Universal Laptop Docking Station (DK30C2DPPD)
Thunderbolt 3 Dual Monitor Docking Station - Thunderbolt 3 w/ USB-C compatibility - Dual Monitor 4K60Hz (TB3CDK2DP)
Thunderbolt 3 Dual DP Monitor Docking Station - Thunderbolt 3 w/ USB-C compatibility - Dual DP Monitor 4K60Hz (TB3CDOCKDP)
USB-C 3.1 5Gbps Dual Monitor Docking Station - USB-C 3.1 Gen 1 - Dual Monitor 1080p (DK30CHHPDEU - EU only)
USB-C 3.1 5Gbps Dual Monitor Docking Station - USB-C 3.1 Gen 1 - Dual Monitor 1080p (DK30CHHPDAU - AU only)
USB-C 3.1 5Gbps Dual Monitor Docking Station - USB-C 3.1 Gen 1 - Dual Monitor 1080p (DK30CHHPD)
Fast and Easy to Install
Using the docking station mounting kit, complete with mounting plate and screws, you can mount your compatible dock or hub to the back of your monitor that is recessed up to 7mm. When installed, the dock mount sits almost flush with the monitor, while still allowing easy access.
SSPMSVESA is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Save space by mounting your StarTech.com docking station or hub to the back of your VESA compatible monitor
- Attaches to the back of monitors with a VESA 75x75 or 100x100 mm hole pattern
- Robust construction made of strong 10 gauge steel (3.3 mm thick)
