Overview

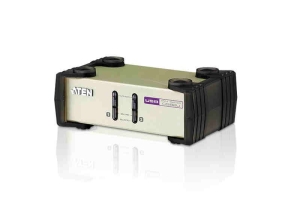

The CS82U PS/2-USB KVM Switch is a desktop control unit that allows users to
access two computers from a single KVM console (PS/2 or USB keyboard and mouse,
and VGA monitor). In addition, CS82U comes with ATEN's new Video DynaSync™
technology, which eliminates boot-up display problems and optimizes
resolution.
Setup is fast and easy; simply plug cables into their appropriate ports.
There is no software to configure, no installation routines, and no
incompatibility problems. Since the CS82U intercepts keyboard input directly, it
will work on multiple computing platforms.
Compatible Accessories
KVM Cables
- 2L-5201U - Length: 1.2m
- 2L-5202U - Length: 1.8m
- 2L-5203U - Length: 3m
- 2L-5205U - Length: 5m
- 2L-5301UP - Length: 1.2m
- 2L-5302UP - Length: 1.8m
- 2L-5303UP - Length: 3m
Compatible Products
KVM Extenders
- CE800B
- CE770
- CE750
- CE250A
Package Contents
Patent No.
US 6464197 , US 6564275
Features
-
One PS/2-USB VGA console controls
two VGA interface computers.
-
Dual Interface - supports
computers with PS/2 or USB keyboards and mice
-
Computer selection via front panel
pushbuttons, hotkeys, and mouse
-
Multiplatform support - Windows,
Linux, Mac, and Sun
-
Superior video quality - 2048 x
1536; DDC2B
-
Video DynaSync - Exclusive ATEN
technology eliminates bootup display problems and optimizes resolution when
switching between ports
-
Console mouse port
emulation/bypass feature supports most mouse drivers and multifunction
mice
-
Complete keyboard emulation for
error-free booting
-
Mac/Sun keyboard support and
emulation*
-
Multilingual keyboard mapping -
supports English, Japanese, and French keyboards
-
Gaming keyboard
support
-
Auto Scan Mode for monitoring all
computers
-
Firmware upgradable
-
Non-powered
*
1. PC keyboard combinations emulate Mac/Sun keyboards
2.
Mac/Sun keyboard work only with their own computers

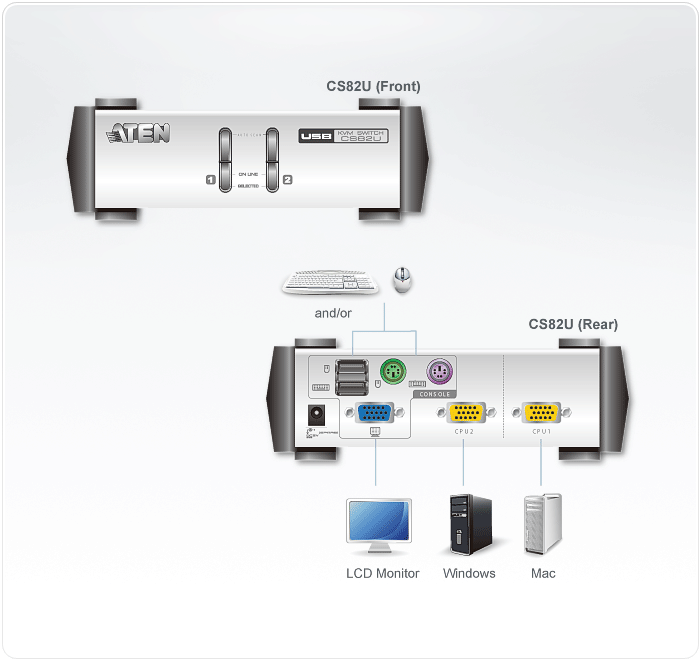

Diagram
Specifications
|
Computer
Connections |
2 |
|
Port
Selection |
Hotkey, Pushbutton, USB
Mouse |
|
Connectors |
|
Console
Ports |
2 x USB Type A Female
(Black) |
|
1 x 6-pin Mini-DIN
Female (Purple) |
|
1 x 6-pin Mini-DIN
Female (Green) |
|
1 x HDB-15 Female
(Blue) |
|
KVM
Ports |
2 x SPHD-18 Female
(Yellow) |
|
Power |
1 x DC
Jack |
|
Switches |
|
Selected |
2 x
Pushbutton |
|
LEDs |
|
Online |
2
(Orange) |
|
Selected |
2
(Green) |
|
Emulation |
|
Keyboard /
Mouse |
PS/2,
USB |
|
Video |
2048 x 1536 @ 60 Hz;
DDC2B |
|
Scan
Interval |
3, 5, 10, 20 secs. (5
secs. default) |
|
Power
Consumption |
DC 5V,
1.1W |
|
Environmental |
|
Operating
Temperature |
0 -
50C |
|
Storage
Temperature |
-20 -
60C |
|
Humidity |
0-80% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.54 kg ( 1.19 lb
) |
|
Dimensions (L x W x
H) |
14.00 x 8.80 x 5.55
cm |
|
(5.51 x 3.46 x 2.19
in.) |
|
