All stock codes associated to this product
CS64US-AT, CS64USAT, KVACS64US, KVA-CS-64US, 4710423776456

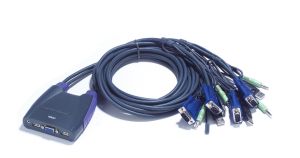

Aten CS64US | 4-Port USB VGA/Audio Cable KVM Switch (0.9m,
1.2m)
Overview
The CS64US takes a giant step forward from prior cable KVM models in the
Petite series, by offering built-in cables, USB peripheral sharing, and a
firmware upgrade function that allows you to keep up with latest available
versions.
Furthermore, the CS64US features enhanced Video DynaSync technology, which
stores the console monitor's EDID (Extended Display Identification Data) to
optimize display resolution. The CS64US also offers multiplatform support and
computer selection via hotkeys to provide the ultimate in desktop convenience.

Features
| One USB
console controls four USB computers | | Compact
design, built-in 0.9/1.2 m cables | | Hotkey
selection for OS and keyboard language | | Computer
Selection via hotkey | | Multiplatform
support - Windows, Linux, Mac, Sun | - Video DynaSync â„¢ - exclusive ATEN technology eliminates boot-up display
problems and optimizes resolution when switching between ports
- USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral
sharing
| Supports multifunction and wireless keyboards
and mice NEW! | | All-in-one design | | With speaker support | | Superior video quality up to 2048 x 1536; DDC2B |
| Auto Scan function to monitor computer operation |
| Non-powered | | Sun/Mac keyboard support and emulation* |
| Firmware
upgradable NEW!
*
1. PC keyboard combinations emulate Sun/Mac keyboards
2.
Sun/Mac keyboards only work with their own computers |
Diagram
Specifications
|
Computer
Connections |
?>
4 |
|
Port
Selection |
Hotkey |
|
|
|
Connectors |
|
Console
Ports |
2 x USB Type A Female
(White) |
|
1 x HDB-15 Female
(Blue) |
|
1 x Mini Stereo Jack
Female (Green) |
|
KVM
Ports |
4 x USB Type A Male
(White) |
|
4 x HDB-15 Male
(Blue) |
|
4 x Mini Stereo Jack
Female (Green) |
|
|
|
LEDs |
|
Selected |
4
(Green) |
|
|
|
Cable
Length |
|
Computer |
2 x 0.9 m; 2 x 1.2
m |
|
|
|
Emulation |
|
Keyboard /
Mouse |
USB |
|
Video |
2048 x 1536;
DDC2B |
|
Scan
Interval |
1-99 secs. (default 5
secs.) |
|
|
|
Environmental |
|
Operating
Temperature |
0 -
50C |
|
Storage
Temperature |
-20 -
60C |
|
Humidity |
0-80% RH,
Non-condensing |
|
|
|
Physical
Properties |
|
Housing |
Plastic |
|
Weight |
0.58 kg ( 1.28 lb
) |
|
Dimensions (L x W x
H) |
9.41 x 9.72 x 2.60
cm |
|
(3.7 x 3.83 x 1.02
in.) |
Package Contents
|
