Overview

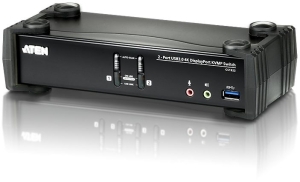

The ATEN CS1922 2-Port USB 3.0 4K DisplayPort KVMP Switch provides the latest
innovations in desktop KVM switching technology for the increasing demand of
higher video quality and transfer speeds on modern computers. The ATEN CS1922
offers an unprecedented performance of delivering 4K resolution, the next
generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and
enhanced user-friendly operations.
As a KVM switch, the CS1922 allows users to access two DisplayPort computers
from a single USB keyboard, USB mouse and monitor console. Doing so with ease,
the CS1922 provides three convenient switching methods using front panel
pushbuttons, mouse, or hotkeys for flexible access to any computer connected to
the installation.
The unique independent switching feature allows the KVM control to focus on
one computer while the USB peripheral focus is on another computer. This
eliminates the need to purchase a separate USB hub or stand-alone peripheral
sharer such as a print server, modem splitter, etc.
With its rich feature set, the CS1922 is designed to surpass all requirements
in graphic design, animation, and video-editing applications. Such as CAD/CAM
(computer aided design/manufacturing). The CS1922 allows you to share the audio
from each of the connected computers. HD audio transmitted by DisplayPort would
offer you a different experience.
Features
- 2-port DisplayPort KVMP Switch with USB 3.1 Gen1 hub and 2.1 surround
sound audio
- One USB console controls 2 computers and 2 USB peripherals
- Computer selection via front panel pushbuttons, hotkeys and mouse*
- Independent switching of KVM, USB, and Audio focus
- Superior video quality - 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x
2160 @ 60 Hz)
- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- DisplayPort 1.2 compliant, HDCP compliant
- Supports HD audio through DisplayPort**
- Full bass response for high-quality 2.1 channel surround sound systems
- Power On Detection - if a computer is powered off, the CS1922
automatically switches to the next powered-on computer
- Multi-Stream Transport (MST) allows multiple monitors through a single
DisplayPort connector***
- Dual-Mode DisplayPort technology (DP++) supports HDMI and DVI signals via
a DisplayPort-to-HDMI/DVI DP++ adapter ****
- Hot pluggable - add or remove computers without powering down the switch
- Keyboard emulation/bypass feature supports most gaming keyboard
- Mouse emulation/bypass feature supports most mouse drivers and
multifunction mice
- Multi-platform support - Windows, Mac and Linux
- Multilingual keyboard mapping supports English, Japanese, French and
German keyboards
- Mac keyboard support and emulation*****
- Auto Scan Mode for monitoring all computers
- Firmware upgradeable
Note:
1. Mouse port switching is only supported under mouse emulation mode with a
USB 3-button mouse wheel.
2.
HD audio through DisplayPort cannot be switched independently.
3.
MST requires two monitors capable of DisplayPort 1.2 daisy-chaining, or use of a
DisplayPort MST Hub. The PC source must be DisplayPort 1.2 compliant. A
DisplayPort v1.1a display can be the last display in a DisplayPort v1.2
chain.
4.
Dual-Mode DisplayPort technology (DP++) does not require an active adapter for
most single display setups. Active DisplayPort adapters are recommended if you
are unsure of the video source's DP++ compatibility.
5.
PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with
their own operating system.
Specifications
| Computer Connections |
2 |
| Port Selection |
Hotkey, Pushbutton,
Mouse |
| Connectors |
| Console Ports |
2 x USB Type A Female
(Black)
1
x DisplayPort Female (Black)
2
x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
2
x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) |
| KVM (Computer) Ports |
2 x USB3.1 Gen1 Type B Female
(Blue)
2
x DisplayPort Female (Black)
2
x 3.5mm Audio Jack Female (Green)
2
x 3.5mm Audio Jack Female (Pink) |
| Power |
1 x DC Jack |
| USB Hub |
2 x USB3.1 Gen1 Type A Female
(Blue; 1 x front panel; 1 x rear panel) |
| Switches |
| Selected |
2 x Pushbutton |
| LEDs |
| On Line /Selected |
2 (Orange) |
| USB Link |
2 (Green) |
| Emulation |
| Keyboard / Mouse |
USB |
| Video |
4096 x 2160 @
60Hz |
| Scan Interval |
1-99 Seconds (Default: 5
sec.) |
| Power Consumption |
DC 5.0V; 12.88W |
| Environmental |
| Operating
Temperature |
0-50C |
| Storage Temperature |
-20-60C |
| Humidity |
0-80% RH,
Non-condensing |
| Physical
Properties |
| Housing |
Metal, Plastic |
| Weight |
0.73 kg ( 1.61 lb
) |
| Dimensions (L x W x
H) |
21.00 x 8.80 x 5.55
cm
(8.27 x 3.46 x 2.19
in.) |
| Note |
For some of rack mount products, please note that the standard physical dimensions of
WxDxH are expressed using a LxWxH format. |
