All stock codes associated to this product
ET90110SC2, 2061160, 0065030846240
| Network |
|---|
| Fiber optic connector | SC |
| Maximum data transfer rate | 200 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Duplex system | Full, Half |
| Auto MDI/MDI-X | Yes |
| Ports & interfaces |
|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Performance |
|---|
| Wavelength-division multiplexing (WDM) | No |
| Wavelength | 1310 nm |
| Maximum transfer distance | 2000 m |
| Fiber mode structure | Multi-mode |
| Design |
|---|
| Internal | No |
| Housing material | Steel |
| Product colour | Black |
| Certification | CE, FCC |
| Power |
|---|
| Power plug type | Type M |
| Input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 1.6 A |
| Power over Ethernet (PoE) | No |
| Weight & dimensions |
|---|
| Width | 87 mm |
| Depth | 153 mm |
| Height | 24 mm |
| Weight | 600 g |
| Package width | 190 mm |
| Package depth | 233 mm |
| Package height | 77 mm |
| Package weight | 779 g |
| Packaging data |
|---|
| Package width | 190 mm |
| Package depth | 233 mm |
| Package height | 77 mm |
| Package weight | 779 g |
| Packaging content |
|---|
| AC adapter included | Yes |
| Manual | Yes |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Certificates |
|---|
| Certification | CE, FCC |
| Other features |
|---|
| Full duplex | Yes |
| Dimensions (WxDxH) | 95 x 160 x 20 mm |
Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiber

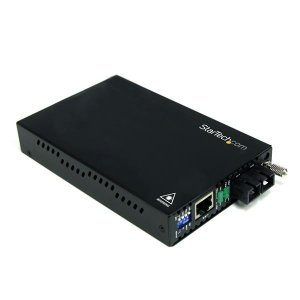

The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
