Fortinet 1-Port Gigabit PoE Power Injector, 802.3af 15.4Watts 10/100/1000 (PD-3501). for GPI-115 Gigabit PoE Injector

IMG 1 of 1
No Longer Available
Part Number:
546728
(?) Brand:
Fortinet
Manuf No:
--GPI-115--
GPI115
Shipping Weight:
0.44 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
GPI-115, 1559644, GPI115, 0094922062123

Fortinet 1-Port Gigabit PoE Power Injector, 802.3af 15.4Watts 10/100/1000 (PD-3501). for GPI-115 Gigabit PoE Injector

Manufacturer: FORTINET
Category: Networking
Sub-Category: PoE Adapters
SKU: GPI-115
EAN: 0094922062123 0844117001389

Description

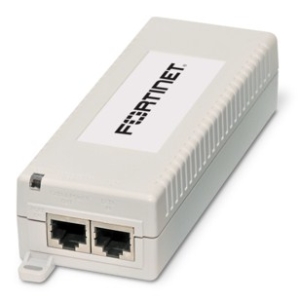

Power over Ethernet (PoE) Injector - GPI-115
The GPI-115 single port Power over Ethernet (PoE) Injector offers a IEEE 802.3af-compliant solution for the FortiAP Wireless Access Point family, and other 802.3af based devices. This mid-span power injector supplies up to 15.4 Watts of Gigabit Ethernet PoE and works with legacy network devices. The GPI-115 PoE Injector uses an intelligent auto-sensing algorithm to supply power to devices that accept 802.3af PoE connections.

Specifications

Network
Power over Ethernet (PoE)Yes
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet interface typeGigabit Ethernet
Compliance industry standardsIEEE 802.3af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Cabling technology10/100/1000Base-T/X
Power over Ethernet (PoE) voltage50 V
Features
LED indicatorsYes
CertificationRoHS, WEEE, CE, UL/CUL, GS Mark, EN, FCC
Ports & interfaces
Ethernet LAN (RJ-45) ports2
Power
Power over Ethernet (PoE) voltage50 V
Input voltage90 - 264 V
Input frequency47/63 Hz
Input current0.5 A
AC adapter input voltage100 - 240 V
Technical details
Power over Ethernet (PoE)Yes
Operating temperature (T-T)32 - 104 °F
Operating altitude0 - 100 m
Number of products included1 pc(s)
Input voltage90 - 264 V
Input frequency47/63 Hz
Input current0.5 A
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet interface typeGigabit Ethernet
Compliance industry standardsIEEE 802.3af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 40 °C
Operating temperature (T-T)32 - 104 °F
Operating relative humidity (H-H)0 - 90%
Operating altitude0 - 100 m
Weight & dimensions
Weight200 g
Dimensions (WxDxH)53 x 140 x 32.5 mm
Packaging content
Number of products included1 pc(s)
Certificates
CertificationRoHS, WEEE, CE, UL/CUL, GS Mark, EN, FCC
Indication
LED indicatorsYes
