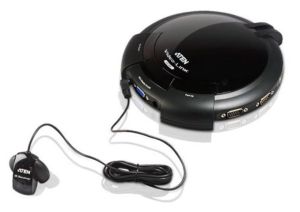

ATEN VS881 8-Port VGA Switch w. Auto Switching
  • Supports up to 1920x1440

IMG 1 of 1
No Longer Available
Part Number:
74907
(?) Brand:
ATEN
Manuf No:
VS881-AAT-U
VS881AATU
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
VS881-AAT-U, VS881AATU, VS881ATU, VS881-AT-U

Aten VS881 8-Port VGA Switch w. Auto Switching

Features

  • Displays the video output of eight separate computers on a single monitor or projector
  • Modern concentric design with intuitive connector layout for quick and easy access
  • Fast and convenient computer selection via pushbuttons or infrared (IR) remote control
  • Extra-thin infrared handset allows easy storage in the mother unit
  • Electronic switching for greater reliability and durability
  • Easy installation - no software required - no confi guration
  • Superior video quality - up to 2048x1536; DDC; DDC2; DDC2B
  • Supports VGA, SVGA, XGA,UXGA, QXGA and multisync monitors
  • Automatic incoming signal selection (Auto)

Package Contents

  • 1x 8-Port Video Switch
  • 1x IR Remote Control Unit
  • 1x Infrared Receiver
  • 1x VGA Cable (1.2 m)
  • 1x Power Adapter
  • 1x User Instructions

The VS881 is a video switch with 8 ports. It allows 8 independent computers or notebook computers to display their video outputs on a single monitor or on the screen via a multimedia projector. It provides a best solution of presentations and speeches to enterprises and education centers.

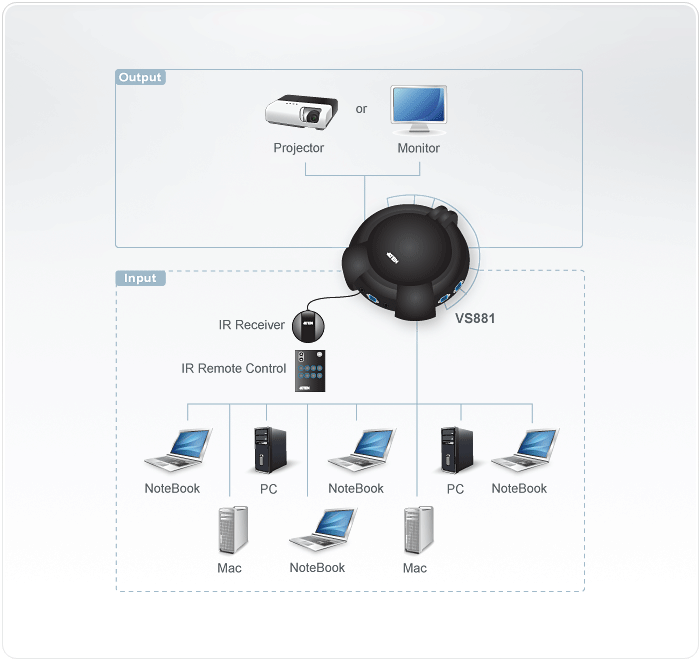

Diagram

Specifications

Video Input

Interfaces

8 x HDB-15 Male (Blue)

Impedance

75 Ώ

Max. Distance

1.8 m

Video Output

Interfaces

1 x HDB-15 Female (Blue)

Impedance

75 Ώ

Max. Distance

10 m

Video

Max. Bandwidth

300 MHz

Max. Resolution

Up to 1920 x 1440

Max. Distance

Up to 10 m

Control

IR

1 x Mini Stereo Jack Female (Black)

Connectors

Power

1 x DC Jack

Power Consumption

DC5V:1.22W:6BTU

Environmental

Operating Temperature

0 - 50°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Plastic

Weight

0.45 kg ( 0.99 lb )

Dimensions (L x W x H)

17.35 x 19.13 x 4.50 cm

(6.83 x 7.53 x 1.77 in.)

Carton Lot

5 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
