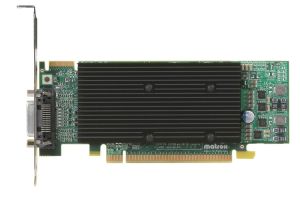

Matrox M9120 Plus DualHead - 512MB DDR2, 2x DVI (via 1x LFH60), Heatsink, Low Profile - PCI-Ex16

IMG 1 of 1
No Longer Available
Part Number:
88505
(?) Brand:
Matrox Web Site
Manuf No:
M9120-E512LPUF
M9120E512LPUF
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
M9120E512LPUF, M9120-E512LPUF, 11MM9120E512LPUF, 11M-M9120-E512LPUF, 790750235967

The Matrox M9120 Plus LP PCIe x16 512MB low-profile, quad-upgradeable, DualHead graphics card with advanced desktop management support to drive business applications with exceptional performance.

  • 512 MB frame buffer
    Supports up to four displays at 128MB per channel
  • Native PCI Express (PCIe) x16 performance
    Second generation PCIe bus increases data rate
  • Single card stretched and independent desktop
    Supported in both Windows Vista Aero (WDDM mode) and Windows XP
  • Pristine image quality for high resolution displays
    Up to 1920 x 1200 digital; 2048 x 1536 analog per output (1920x1200 with aftermarket quad analog upgrade cable)
  • Aftermarket upgrade to quad analog display
    Upgrade to quad head output via cable (CAB-L60-4XAF)
  • Passive cooling
    Fanless design eliminates noise and increases product reliability
  • Wide enterprise flexibility
    Unified driver package compatible with other Matrox products (P-Series, G-Series, QID Series, MMS Series, Parhelia Series, and Extio Series).
  • Multiple operating system support
    Display drivers for Microsoft Windows Vista (32/64bit), Windows XP (32/64bit), and Windows Server 2003 (32/64bit).
  • Low profile form factor
    To fit in a wide variety of systems.
  • Matrox PowerDesk software
    Easily configure and manage program windows on multiple monitors.
  • RoHS and WEEE compliant

Hardware Included

  • Matrox M9120 Plus LP PCIe x16 graphics card (with factory-installed low-profile bracket)
  • LFH60-to- 2 x DVI-I dual-monitor adapter cable (1 ft)
  • Two DVI-I-to-HD15 connector adapters

Software Included

  • Matrox display drivers for Microsoft Windows Vista and XP
    (also available via download at www.matrox.com/graphics)
  • Matrox PowerDesk desktop management software



Part Number M9120-E512LPUF
Bus Type PCIe x16
Graphics Memory 512MB DDR2
Card Form Factor (PCB / bracket) LP / LP
Extra bracket in the box ATX bracket is included.
Card Dimensions 6.6" (L) x 2.7" (H)
Connectors LFH-60
Breakout / Splitter Cables included LFH-60 to 2 x DVI-I (same as current: F16123-00)
DVI to Analog (HD15) Adapters 2
Max Display Outputs per Card 2 (4 with aftermarket analog upgrade cable)
Supported Display Output Types DVI SL, Analog
Max Digital Resolution per Output 1920x1200
Max Analog Resolution per Output 2048x1536 (1920x1200 with quad analog upgrade cable)
Independent Desktop Mode yes
Stretched Desktop Mode yes
Passive Cooling yes
Unified Driver Package yes
PowerDesk Software yes
EMC Certifications Class B
Aftermarket Cable Upgrades Quad analog output cable (Part # CAB-L60-4XAF)
Supported Operating Systems Microsoft Windows XP (32/64bit), Microsoft Windows Vista (32/64bit), Microsoft Windows Server 2003/2008 (32/64bit)
Open GL support 2.0

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3 Year

Full manufacturers warranty details are available at the manufacturers (Matrox) web site.
