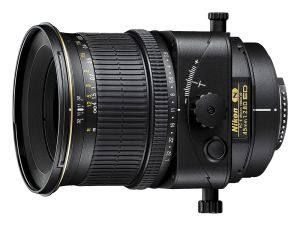

PC-E Micro NIKKOR 45mm f/2.8D ED

• Wide shifting and tilting range (shift: 11.5 mm; tilt: 8.5)

• 90 lens revolving capability for versatile tilt/shift effects

• Maximum reproduction ratio of 1/2

• One ED (Extra-low Dispersion) glass element for superior sharpness and color correction by effectively minimizing chromatic aberration
• Nano Crystal Coat virtually eliminates internal lens element reflections, effectively reducing ghosting and flare
• High-performance Nikon Super Integrated Coating delivers superior color reproduction while substantially reducing ghosting and flare
• Rounded 9-blade diaphragm for more natural appearance of out-of-focus image elements
• Lens aperture can be preset by using aperture ring and aperture stop-down button
• With the Nikon D3, D700 and D300, auto aperture control with electromagnetic diaphragm is possible
• Dust and moisture-resistant for reliable use even in harsh shooting situations


Lens construction		9 elements in 8 groups (with one ED glass element and Nano Crystal Coat)
Picture angle		51 (maximum 66 when fully shifted)
Focal-length scale		NA
Number of diaphragm blades		9 (rounded)
Diaphragm		Electrically automatic/One-touch preset aperture operation
Minimum f/stop		32
Lens movement		Shift and tilt movement at right angles (the two operations can be modified for a surcharge, to move in the same [parallel] direction. The shift lock release knob can also be changed for a larger one, but the changed knob may affect mounting the lens to the camera or lens operation.) Maximum shift amount: 11.5mm Maximum tilt amount:8.5
Lens rotation		90 right and left (click-stop for each 30 step)
Closest focusing distance		0.253 m (0.83 ft.)
Maximum reproduction ratio		0.5x
Zoom control		NA
Macro focusing		NA
Focus-limit switch		NA
M/A mode		NA
A-M mode switch		NA
Focus lock button		NA
Wight (approx.)		740 g/26.1 oz.
Dimensions (approx.) (from the cameras lens mounting flange)		82.5 x 112 mm/3.2 x 4.4 in.
Lens cap		Snap-on
Lens hood		HB-43
Lens case		CL-1120
Tripod collar		NA
External front filter attachment frame		Does not rotate
External front filter		77 mm
Slip-on filter		NA
Built-in/rear filte		NA
Circular polarizing filter II		NA
Infrared compensation scale		NA
Optional accessories		77 mm screw-in filters
Aperture ring		Does have
Distance scale		Does have
Note: These lenses can be used with the D3, D700 and D300 without any limitation; and can also be used with the following cameras, though some restrictions or limitations on functions exist: D2 series, D1 series, D200, D100, D80, D70 series, D60, D50, D40 series, F6, F5, F4 series, F100, F90X/N90s, F90 series/N90, F80 series /N80 series, F75 series /N75 series, F65 series /N65 series, and PRONEA 600i/6i.
