ATEN Altusen IP8000 KVM Over Net Management Card - PCI

IMG 1 of 0
No Longer Available
Part Number:
95997
(?) Brand:
ATEN
Manuf No:
IP8000
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
IP8000, IP-8000

Remote Management PCI Card
The IP8000 is a PCI card implementation of a control unit that provides "over-IP" access and control of the server it is installed in. The IP8000 allows multi-platform access and control of the server from remote locations using a standard Internet browser or with stand-alone Windows and Java applications


Features
Standard PCI-sized card provides over-IP access and control of a remote server from anywhere in the world
Virtual media via USB 2.0 data transmission
Remote power control and reset support
Up to 64 user accounts - Up to 32 concurrent user logins for single-bus sharing
Message board feature allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
External authentication support: RADIUS; LDAP; LDAPS; MS Active Directory
Web-based Windows and Java implementations allow the server to be controlled from any browser
Windows GUI and Java client software for non-browser access - the Java client works with practically all operating systems
Supports TCP/IP, HTTP, HTTPS, UDP, DHCP, SSL, ARP, DNS, ICMP, CHAP
Supports 10Base-T, 100Base-T
Superior video resolution* up to 1600 x 1200 @ 60Hz; 24-bit color depth for remote sessions
Bandwidth optimization via grayscale and video quality setting
Advanced security features include password protection and advanced encryption technologies
Secure 128-bit SSL encryption
Enable/disable browser operation
Three level authentication - Multi - Administrators, Users, Viewers
Event logging
Remote fi rmware upgrading
Host-side OS support - Windows 2000/2003/XP
/NT/VistaRedhat 7.1 and above; FreeBSD, Novell

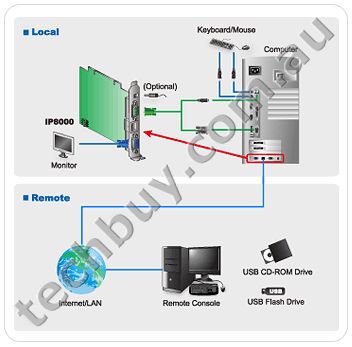

Diagram


Specification
Connectors Computer
(Keyboard/Video/Mouse)		 1 x SPHD-15 Female (Green)
Video Out 1 x HDB-15 Female (Blue)
LAN Port 1 x RJ-45 Female
Power 1 x DC Jack
LEDs
Link 1 (Green)
10/100 Mbps 1 (Green / Orange)
Emulation Keyboard/Mouse USB
Video 1600 x 1200@60Hz; DDC2B
Power consumption DC5V, 6W
Environment Operating Temp. 0 - 50C
Storage Temp. -20-60C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Weight 0.10 kg
Dimensions ( L x W x H ) 15.35 x 12.00 x 2.15 cm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
