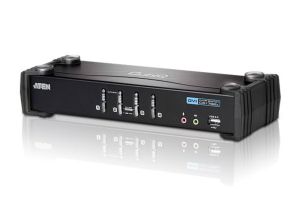

Aten CS1764A 4-Port USB DVI/Audio KVMP Switch
Features
- One USB console controls four DVI computers and two additional USB 2.0
devices
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification
- Computer selection via front panel pushbuttons and hotkeys
- Audio enabled - full bass response provides a rich experience for 2.1
channel surround sound systems
- Multiplatform support - Windows, Linux, Mac and Sun
- Superior video quality - 1920 x 1200, 60Hz; DDC2B
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support - fully compliant with the DVI
specifications HDCP compliant
- Video DynaSync - stores the console monitor's EDID (Extended Display
Identification Data) to optimize display resolution
- Power on detection - if one computer is powered off, the CS1764A will
automatically switch to the next powered-on computer
- Console mouse port emulation/bypass feature supports most mouse drivers
and multifunction mice
- Sun /Mac keyboard support and emulation
- Auto Scan Mode for monitoring all computers
- Firmware upgradable via USB
- Package Contents -1x CS1764A USB 2.0 DVI KVMP Switch 4x KVM Cable (DVI-D,
USB, Audio; 1.8m/6ft) 1x Power Adapter 1x User Instructions
4-Port USB DVI/Audio KVMP Switch
The CubiQ CS1764A USB 2.0 DVI KVMP Switch charts a revolutionary new
direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4
port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an
interface for a digital monitor (DVI).
In addition, the CS1764A comes with ATEN's new Video DynaSync technology,
which optimizes display resolution, and power on detection, which means if one
computer is powered off, the CS1764A will automatically switch to the next
powered-on computer.
As
a KVM switch, it allows users to access four computers from a single USB
keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each
computer to access any peripherals connected to the hub on a 'one computer at a
time' basis.

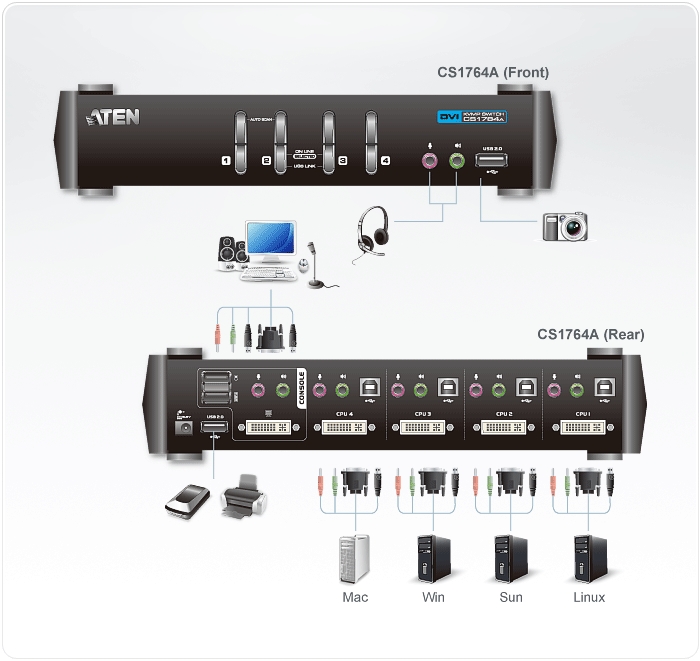

Diagram
Specifications
Computer Connections |
4 |
Port Selection |
Hotkey, Pushbutton, Mouse |
|
|
Connectors |
|
Console Ports |
2 x USB Type A Female (White; front panel) |
|
1 x DVI-I Female (White) |
|
2 x Mini Stereo Jack Female (Green; 1 x front panel; 1 x rear
panel) |
|
2 x Mini Stereo Jack Female (Pink; 1 x front panel; 1 x rear
panel) |
KVM Ports |
4 x USB Type B Female (White) |
|
4 x DVI-I Female (White) |
|
4 x Mini Stereo Jack Female (Green) |
|
4 x Mini Stereo Jack Female (Pink) |
Power |
1 x DC Jack |
USB Hub |
USB Hub |
|
|
Switches |
|
Selected |
4 x Pushbutton |
|
|
LEDs |
|
USB Link |
4 (Green) |
On Line /Selected |
4 (Orange) |
|
|
Emulation |
|
Keyboard / Mouse |
USB |
|
|
Video |
1920 x 1200@ 60Hz; DDC2B |
Scan Interval |
1–99 Seconds (Default: 5 sec.) |
Power Consumption |
DC5.3V:4.8W:38BTU |
|
|
Environmental |
|
Operating Temperature |
0 - 50°C |
Storage Temperature |
-20 - 60°C |
Humidity |
0-80% RH, Non-condensing |
|
|
Physical Properties |
|
Housing |
Metal |
Weight |
0.94 kg ( 2.07 lb ) |
Dimensions (L x W x H) |
27.00 x 8.80 x 5.55 cm |
|
(10.63 x 3.46 x 2.19 in.) |
|
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
