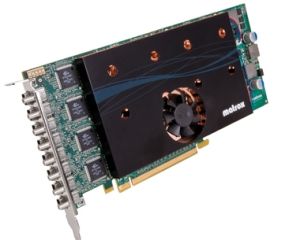

Matrox M9188 PCIe x16
Drive Multi-Display Monitoring Environments with Feature-Rich Octal Graphics Card
The Matrox M9188 PCIe x16 multi-display Octal graphics card addresses the need to visualize large amounts of data at once in order to effectively make decisions. The latest offering from the M-Series family is the world's first single-slot PCIe x16 octal card, featuring the ability to support both DisplayPort and DVI Single-Link outputs to ensure wide compatibility with today's monitors. With 2 GB of memory and advanced desktop management features, such as independent or stretched desktop modes, the M9188 drives energy, transportation, process control, financial trading, and other mission-critical environments with extraordinary performance.
Features:
- High-resolution eight DisplayPort or DVI monitor support
Support resolutions up to 2560 x 1600 (DisplayPort) and 1920 x 1200 (DVI) per output
- Native PCI Express (PCIe) x16 performance
Maximum bandwidth to ensure best performance
- 2 GB of memory
For enhanced performance in demanding multi-monitor control room monitoring applications
- ATX form factor
- Stretched and independent desktop modes1
Expand your desktop across multiple monitors or set each monitor independent of each other
- M-Series multi-card support2
Add multiple Matrox cards into the same system to drive up to 16 displays
- Joined graphics card mode2
Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
- Matrox Clone
View a copy of one display on the other displays
- Wide enterprise flexibility
Unified driver package compatible with other Matrox products
- Matrox PowerDesk software
Easily configure and manage program windows on multiple monitors
- Multiple operating system support
Display drivers for Windows 7 (32/64 bit), Windows Vista (32/64 bit), Windows XP (32/64 bit), Windows Server 2003/2008 (32/64 bit), and Linux
Hardware Included
- Matrox M9188 PCIe x16 graphics card (with factory-installed ATX bracket)
- Eight miniDisplayPort to DisplayPort adapters
- Eight DisplayPort to DVI adapters
Software Included
- CD with link to latest Matrox display drivers and PowerDesk desktop management software .
Specifications:
Part Number
M9188-E2048F
Bus Type
PCIe x16
Graphics Memory
2048MB
Card Form Factor (PCB / bracket)
ATX
Extra bracket in the box
Card Dimensions
9.0" (L) x 4.4" (H)
On-board Connectors
8 x Mini DisplayPort
Connector Adapters
8 x Mini DisplayPort to DisplayPort, 8 x DisplayPort to DVI
Max Display Outputs per Card
8
Supported Display Output Types
DisplayPort , DVI SL
Max DisplayPort Resolution per Output
2560x1600
Max DVI Resolution per Output
1920x1200
Independent Desktop Mode
Yes
Stretched Desktop Mode
Yes1
Matrox Clone
Yes
Pivot Support
Yes
Passive Cooling
No
Unified Driver Package
Yes
PowerDesk Software
Yes
EMC Certifications
Class B
Aftermarket Cable/Adapter Upgrades
Supported Operating Systems
Windows 7 (32/64bit), Windows Vista (32/64bit)2, Windows XP (32/64bit), Windows Server 2003/2008 (32/64bit), and Linux
Open GL support
2.0
Environmental ROHS & WEEE compliant Warranty 3 years
