Addonics AD2U3PX1 USB3.0 Expansion Card - 2xUSB3.0 - PCI-Ex1

IMG 1 of 2
Our Price:
$22.35
RRP:
$35.00
You Save:
$12.65
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
144798
(?) Brand:
Addonics Web Site
Manuf No:
AD2U3PX1
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
AD2U3PX1

Package content:
2-Port USB 3.0 PCI-Express 1X Controller, low profile bracket, Driver CD, User guide

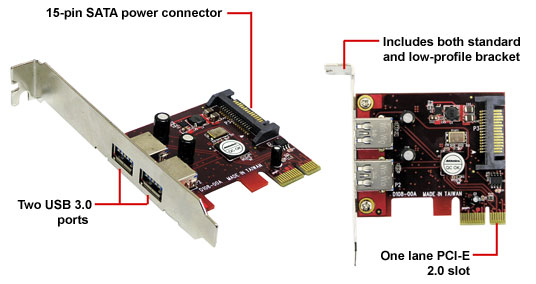

This Addonics PCIe controller is a simple and economical solution for adding the latest high speed USB 3.0 port to any Desktop computers or servers. Designed to install into any PCI-Express 1X slot, the USB 3.0 port on this controller can handle data rate up to 5 Gbps on the PCI Express 2.0 slot, 10 times the speed of USB 2.0.

To learn more detail about USB 3.0, please visit our USB 3.0 tutorial page.


Product Features

  • Add two USB 3.0 ports via PCI-Express (PCIe) 1X slot
  • Maximum 5Gbits/sec*, 10 times the speed of USB 2.0
  • Supports both PCIe 1.0 and PCIe 2.0 slots
  • Includes both standard and low-profile brackets
  • Power directly from PCI-Express slot or via 15-pin SATA power connector
  • Hot swappable - drive can be removed and added without system shut down or restart
  • Capable of SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
  • Compatible with Windows XP, Windows 2003 Server, Vista, Windows 7

* To achieve the maximum throughput, the PCI-Express slot must be version 2.0 or higher. Older Notebook with PCI-Express 1.0 will limit the speed to 2.5 Gbps. Performance per port may decrease if both ports are transferring data simultaneously due to the limited throughput of the PCI-Express slot. Please visit following web page for more information of PCI-Express v1.0 and v2.0 https://en.wikipedia.org/wiki/PCI-Express






Specifications

  • USB 3.0 Ports with 5V bus power
  • Supports PCIe 1.0 and PCIe 2.0 motherboard
  • Compliant with PCI Express Specification 2.0
  • Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
  • Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 0.95
  • Two USB 3.0 Type A downstream connectors
  • All USB ports can handle SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
  • Support any USB3.0, USB2.0 and USB1.1 devices
  • Built-in 15Pin SATA power connector support the 5V Max 1.5A bus power each USB port from system power supply
  • Chipset : NEC
  • Temperature: Operating 0 to 70 degree C.
  • Storage: -25 to 90 degree C.
  • Humidity: Operating 20% to 80%
  • Non Operating 15% to 90%
  • Completely with drivers for Windows XP, Windows 2003 Server, Vista, Windows 7
  • Dimensions: (W x D x H) - 40mm x 106mm x 15mm (1.57in x 4.17in x 0.59in)
  • Weight: 30g (1.06oz)
  • Operating temperature range: 0 C to +70 C
  • Operating humidity range: 5% to 90%
  • Storage temperature range: -40 C to +85 C
  • Storage humidity range: 5% - 95% (non condensing)
  • 1 year warranty
  • RoHS Compliant
