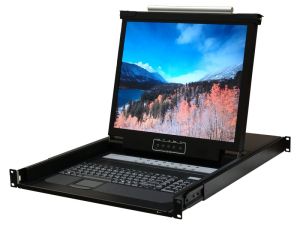

KVM-19E16 | Norco 19" 1U Rackmountable 16-Port KVM console w. 19" LCD

• 19" 1U Rackmount 16 ports KVM Console LCD Monitor;
• 103-key keyboard and integrated Touch Pad;
• Built-in Rail Self-locking device;
• Support combo(PS/2 & USB) interface for connecting to computer ports conveniently;
• One optional remote console (SEE RELATED ITEMS BELOW);
• Support Daisy chain(8-layer) & Cascade(2-layer) function;
• No Software Required --- easy computer selection via On Screen Display (OSD) Menu, Push Buttons, and Hotkeys;
• Provide various Hotkey (Scroll-Lock/ Cap-Lock/ Num-Lock/ L-Alt/ L-Ctrl/ L-Win/ R-Alt/ R-Ctrl/ R-Win) for switching computer port and other control functions, so Hotkey function can be used in various types of keyboards, and to avoid Hotkey duplicate problem;
• Operating system independent, transparent to all applications;
• Provide ACL (Access Control List) security function. Store up to 8 independent user accounts;
• Hot Plug --- add or remove connected computers without powering off the LCD Drawer;
• Support two user layers, and search computer/server name;
• Keyboard status restored when switching computer;
• Standard 19 inches rack mounting design;

Specifications:

Connection Type:Combo (PS/2 or USB Connector Support)
Max. Distance (LCD Drawer to Server):16 feet (5m)
CAT.5 - Based (Optional) Remote Console Module:RJ-45 Connector, CAT.5 console up to 1000 feet away from Drawer with superior, auto-adjust RGB gain/delay control capability
Over IP -Based (Optional) Remote Module:RJ - 45 8P8C for 10/100 M Ethernet, DB9 male for Modem, Null modem and serial power control, Mini USB 2.0 receptacle
Daisy Chaining:Support Daisy chain(8 - layer) & Cascade(2 - layer) function
Hotkey:Provide various Hotkey (Scroll-Lock/ Cap-Lock/ Num-Lock/ Alt/ Ctrl/ Win)
Security:Provide ACL (Access Control List) security function, store up to 8 independent controllable Computers lists
Multilingual OSD (On Screen Display) control:8 Languages (English, France, Germen, Spanish, Italian, Russian, Japanese, Simplified Chinese)

LCD:19" XGA TFT LCD
Display Area (mm):386.4 (H) x289.8 (V) (19.0-inch diagonal)
Pixel Pitch:0.294 (H) x0.294 (V)
Recommended Resolution:1280 x 1024 @ 60Hz
Contrast Ratio:1000/1
Luminosity: 300 cd/m
Response Time:7 msec
Display Color:16.7M (8 bits/colors)
Viewing Angle:-85~85,-85~85
Operating Time:LCD MTBF>50000H, Backlight MTBF>30000H
Power Supply: AC 100-240V Universal
VGA: 15-pin D-Sub
Keyboard and Touch pad: 103-key keyboard and integrated Touch Pad;
Environmental Consideration:0C~50C in operating; -20C~60C in storage
Humidity:10~85% in operating; 10-90% in storage
Dimensions(W*D*H):19" x 22.9" x 1.73" (48358244mm)
Weight:18 kg/40 lb (NET) 26 kg/58 lb (GROSS)
Accessories Included:rails, manual, power cord, keys, 16pcs PS2 KVM cables.
