IMG 1 of 1
Our Price:
$290.50
or quickly purchase this product
Order In from SupplierShips from our warehouse in 1-3 business days

Part Number:
159572
(?) Brand:
Manuf No:
PCIE-5456A
PCIE5456A
Shipping Weight:
0.3 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
PCIE5456A, PCIE-5456A
SER5456A

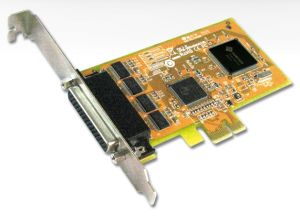

4-port RS-232 PCI Express Serial Board

Introduction

SUNIX SER5456A, PCI Express serial communication boards meet the PCI Express Base Specification Revision 1.1. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus. The majorities of todays motherboards is not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add four serial ports to their system, allowing them to use serial devices further. SUNIX SER5456A card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Features

  • Expands 4 independent RS-232 serial ports with communication speeds up to 115.2Kbps.
  • High speed SUN1999 16C950 compatible UART controller on-board.
  • Designed to meet PCI Express Base Specification Revision 1.1.
  • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

Specifications

Description

Product Description 4-port RS-232 PCI Express Serial Board

Serial Communication

Interface RS-232
Controller SUNIX SUN1999 (16C950 UART Compatible)
Bus PCI Express one lane (x1)
No. of Port 4-port
IRQ & IO Assigned by System
FIFO 128 byte (Hardware)
Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
Baud rate 50 bps to 115.2 Kbps
Data bit 5,6,7,8
Stop bit 1,1.5,2
Parity None, Even, Odd, Space, Mark
Flow Control None, Xon/Xoff, RTS/CTS
Protection 15KV ESD protection for each signal Human Body Model (HBM)
15KV IEC1000-4-2 Air Gap Discharge
8KV IEC1000-4-2 Contact Discharge
PCB connector DB44 Female

Driver Support

Microsoft Client Windows XP/Vista/7 (X86/X64)
Microsoft Server Windows 2000/2003/2008 (X86/X64)
Microsoft Embedded Windows CE5.0/6.0/XP Embedded/POS Ready 2009/Embedded System 2009
Linux Linux 2.4.x / 2.6.x
DOS DOS
FreeBSD FreeBSD 5.3~5.5 / 6.0~6.4
QNX QNX 6.3.2/6.4.0
* IBM OS/2 WARP 3/WARP 4
* SCO UnixWare UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0
* Sun Microsystems Solaris 10
Note : * Supported by special inquiry.

Regulatory Approvals

Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
Software Microsoft WHQL Windows
Microsoft Client: XP/Vista/7 (X86/X64)
Microsoft Server: 2000/2003/2008 (X86/X64)

Environment

Operation Temperature 0 to 60C (32 to 140F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85C (-4 to 185F)

Dimension

PCB Dimension 109 x 67 mm
Bracket Standard 121 mm
Bracket Space 1

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
