All stock codes associated to this product
1000221, BK500EI, 5923325, UPAPCBK500EI, 731304016359, 5714708000228
Product Overview

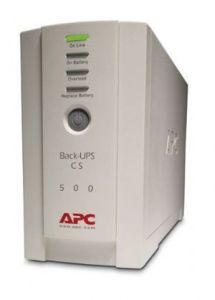

Description: APC Back-UPS, 500VA⁄300W, Input 230V⁄ Output 230V
General Features: Addl Surge Protected Outlets , Hot Swap Batteries
Documentation: User Manual
Technical Specifications
Output
Output power capacity: 500 VA
Output power capacity 300 Watts
Nominal output voltage: 230 V
Waveform type: Stepped approximation to a sinewave
Output Connections:
-(3)IEC 320 C13
-(1)IEC 320 C13 (Surge)
-(2)IEC Jumpers
Input
Nominal input voltage: 230 V
Input frequency: 50⁄60 Hz +⁄- 5 Hz (manual switch)
Input Connection Type: IEC-320-C14 inlet
Input voltage range for main operations: 196 - 280 V
Batteries
Typical backup time at half load: 10.6 minutes
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 7 hour(s)
Replacement battery cartridge: (1) RBC2
Communications Management
Interface port: None
Control panel: Output power on indicator LED
Audible alarm: Alarm when on battery : distinctive low battery alarm
Surge Protection and Filtering
Surge energy rating: 300 joules
Filtering: Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum height dimensions: 6.00 inches ( 15.24 cm)
Maximum width dimensions: 3.40 inches ( 8.64 cm)
Maximum depth dimensions: 13.10 inches ( 33.27 cm)
Net weight: 15.40 lbs ( 7.00 kg)
Shipping Weight: 17.60 lbs ( 8.00 kg)
Color: Beige
Environmental
Operating Environment: 0 - 40 °C (32 - 104°F)
Operating Relative Humidity: 0 - 95%
Operating Elevation: 0-10000 feet (0-3000 m)
Storage Temperature: -15 - 45 °C (5 - 113°F)
Storage Relative Humidity: 0 - 95%
Storage Elevation: 0-50000 feet (0-15000 m)
Audible noise at 1 meter from surface of unit: 0 dBA
Online thermal dissipation: 4 BTU⁄hr
Conformance
Approvals CE, EN50091-1, EN50091-2, PCBC
Equipment protection policy: Lifetime : 75000 Euros
