KH2508A
2-console 8-port Cat 5 High-Density KVM Switch
The KH2508A KVM switch is a control unit that allows IT administrators to access and control multiple computers from two PS/2 or USB KVM consoles (one bus). Operators working at up to two consoles can independently and simultaneously take control of up to 8 computers. By daisy chaining up to 31 additional switches, as many as 256 computers can be controlled from the original KVM consoles.
This switch has been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.
For example, the advanced Adapter ID feature stores the Adapter Cable's configuration information such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters . Other advances found with these switches includes enhanced video quality extending the distance to the servers to up to 50 m at a resolution of 1280 x 1024.*With KVM Adapter Cable KA7000 series.
Features
The KH2508A KVM switch is a control unit that allows IT administrators to access and control multiple computers from two PS/2 or USB KVM consoles (one bus). Operators working at up to two consoles can independently and simultaneously take control of up to 8 computers. By daisy chaining up to 31 additional switches, as many as 256 computers can be controlled from the original KVM consoles.
This switch has been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.
- Two KVM consoles independently and simultaneously control up to 8 directly connected computers

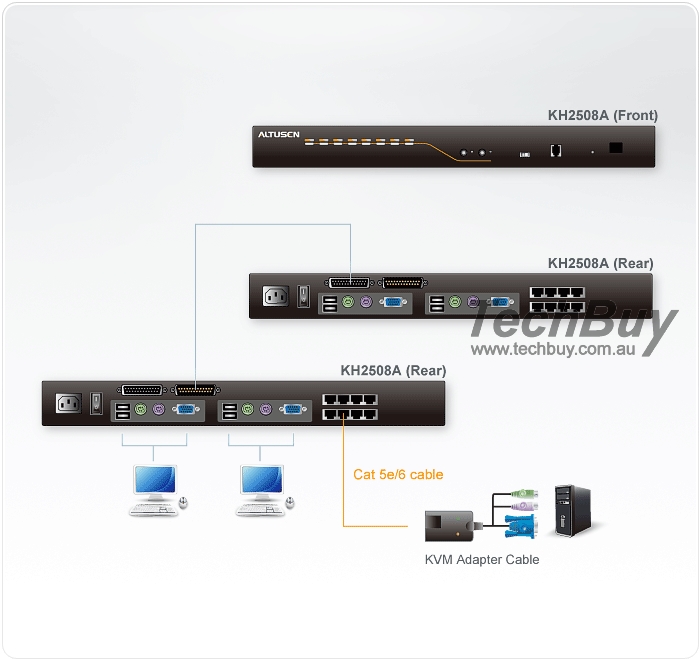

- By daisy chaining up to 31 additional KH2508A switches, as many as 256 computers can be controlled from the original KVM console
- Console conversion any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
- Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters *With KVM Adapter Cable KA7000 series
- Configue port access rights for users on a port - by - port basis
- Diversified port operation mode enables flexible computer management Occupy, Exclusive and share modes
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
- Multiplatform support PC, Mac, Sun, and serial
- Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
- Two-Level Password Security- Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast Mode sends commands from the console to all computers allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
- Adapter ID
- Firmware Upgradeable
Specifications
Computer
Connections |
Direct |
8 |
| Max. |
256 (via Daisy Chain) |
| Port Selection |
OSD (On Screen Display);
Hotkeys, Pushbutton Switches |

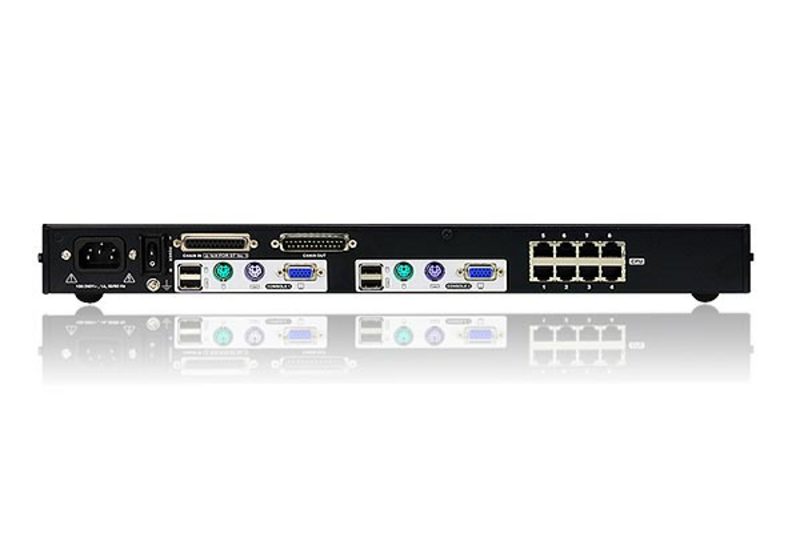

| Connectors |
Console Ports |
Keyboard |
2 x 6-pin Mini-DIN Female (Purple);
2 x USB Type A Female |
| Video |
2 x HDB-15 Female (Blue) |
| Mouse |
2 x 6-pin Mini-DIN Female (Green);
2 x USB Type A Female (White) |
| KVM Ports |
8 x RJ-45 Female |
Daisy
Chain |
In |
1 x DB-25 Female (Black) |
| Out |
1 x DB-25 Male (Black) |
| F/W Upgrade |
1 x RJ-11 Female |
| Power |
1 x 3-prong AC socket |
| Switches |
Port Selection |
8 x Pushbutton |
| Console Selection |
2 x Pushbutton |
| Reset |
1 x Semi-recessed Pushbutton |
| F/W Upgrade |
1 x Slide |
| Power |
1 x Rocker |
| LEDs |
Port |
On Line |
8 (Green) |
| Selected |
8 (Orange) |
| Console |
2 (Orange) |
| Power |
1 (Blue) |
| Station ID |
1 x 7-segment LED display (Orange) |
| Emulation |
Keyboard |
PS/2; USB |
| Mouse |
PS/2; USB |
| Scan Interval |
1-255 Seconds |
| Video |
1600 x 1200 @ 60 Hz (40m);
1280 x 1024 @ 75 Hz (50m) |
| I/P Rating |
100240 VAC; 50/60 Hz; 1A |
| Power Consumption |
120V/7.2W; 230V/8.6W |
| Environment |
Operating Temp. |
0-50C |
| Storage Temp. |
-20-60C |
| Humidity |
0-80% RH, Non-condensing |
| Physical Properties |
Housing |
Metal |
| Weight |
2.81 kg |
Dimensions
( L x W x H ) |
43.72 x 16.36 x 4.40 cm |
