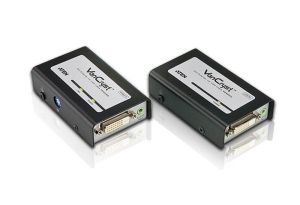

VE600A
DVI Audio / Video Extender
Tjhe VE600A extends DVI-D video and audio up to 200 ft at 1080i or 130 ft at 1920 x 1200 and 1080p
The VE 600A uses two Cat5e cables to connect the local and remote units.It will pass video and audio with one cable [TDMS], butthe second cable [DDC] must be used if your installation requires EDID information.
There are no drivers or other software to install, simply connect the units to your video source and destination.
Features:
- Video resolution 1920 x 1200 up to 200 ft
- 8 position rotary find tune switch for best quality video
- Will pass video and audio over a single cable
- Uses CAT5e to connect the local and remote units.
- Supports DDC [ must connect both CAT5e cables]

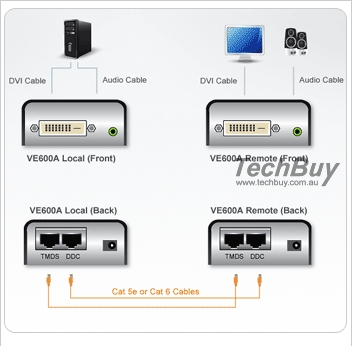

Diagram:
Requirements:
Source Device
DVI or HDMI* connector (Female)
Display Device
A display device with a DVI or HDMI connector (Female)
Note:
VE600A is compatible with HDMI devices by using a DVI to HDMI adapter
Package Content:
- 1 VE600A DVI Extender with Audio Remote Unit
- 2 Power Adapters
- 1 Rack Mount Kit
- 1 User Guide
- 2 Grounding Wire
Specifications
Connectors |
Video Input |
1 x DVI-D Female [ local ] |
Video Output |
1 x DVI-D Female [ remote ] |
Audio Input |
1 x mini stereo jack [ local ] |
Audio Output |
1 x mini stereo jack [ remote ] |
Power |
1 x DC Jack |
Unit to Unit Connectors |
2 x RJ-45 Female |
LEDs |
Power On |
1 [ Green ] |
Link |
1 [ Green ] |
Switches |
Picture Compensation |
1 x 8-position switch [ remote ] |
Video Resolution |
1920 x 1200 [ Max ] to 130 ft. |
Cable Length |
200 ft Max [ @ 1080i ] |
Power |
Voltage |
5.3 VDc [ locale and remote ] |
Amps |
400mA [ local ] / 300mA [ remote ] |
Power Consumption |
7 BTU [ local ] / 5 BTU [ remote ] |
Power Adaptor Part # |
for North America |
|
Housing |
Case |
Metal |
Environment |
Operation Temperature |
32 - 122 F |
Storage Temperature |
-4 - 140F |
Humidity |
080% RH, Non-condensing |
Physical Properties |
Unit Weight with package |
1.2 lb. |
Unit Weight |
1 lb. |
Unit Package Dimensions |
6.3x 2.3x 9.4 in. |
Unit Dimension |
3.6x 2.2x 1 in. |
Case Dimension |
19.3x 12.4x 13.3 in. |
Case Weight |
26 lbs. |
Case Qty |
20 |
|
