All stock codes associated to this product
CE100-AT-U, CE100ATU, KVACE100, KVA-CE-100, ATCE100, 4710423773462

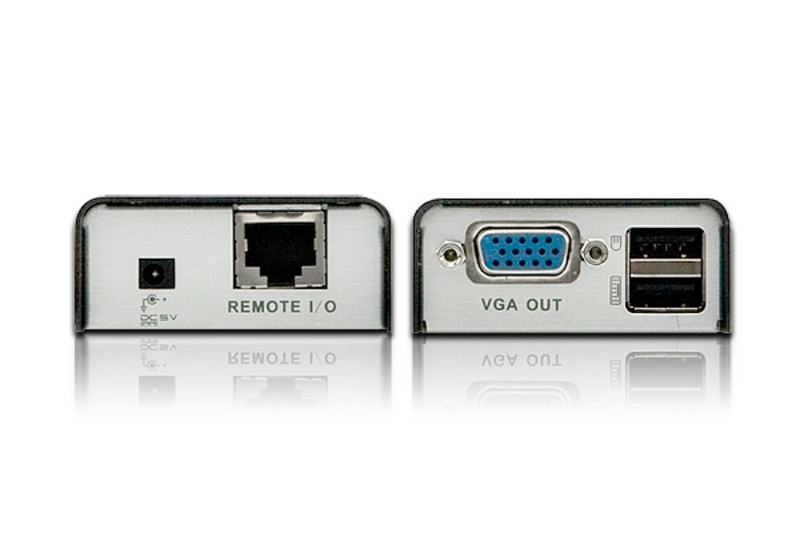

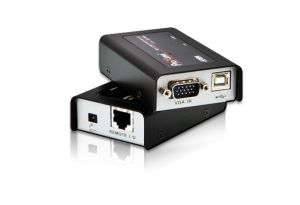

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).
The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.
Features:
- Extends local PC VGA/keyboard/Mouse to Remote side
- Uses Cat 5e cable to connect the local and remote units
- Easily add or remove computers connected to the installation
- Supports real time DDC communication
- Superior video quality up to 1920 x 1200
- Allow access to a computer from the remote console up to 100 m distance
- Support manual compensation adjustment for better video quality
- No external power supply needed for local unit
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Wall mountable
Specifications:
| Function |
CE100L |
CE100R |
| Connectors |
Console
Ports |
Keyboard |
N/A |
1 x USB Type A Female (White) |
| Video |
N/A |
1 x HDB-15
Female (Blue) |
| Mouse |
N/A |
1 x USB Type A Female (White) |
KVM
Ports |
Keyboard
/ Mouse |
1 x USB Type B Female (White) |
N/A |
| Video |
1 x HDB-15
Male (Blue) |
N/A |
| Power |
1 x DC Jack |
| Unit to Unit |
1 x RJ-45 Female (Black) |
| Switch |
N/A |
1 x Knob |
| LEDs |
Link |
1 (Blue) |
| Power |
1 (Green) |
| Video |
1920 x 1200 @ 60 Hz (30 m);
1280 x 1024 @ 60 Hz (100 m) |
| Power Consumption |
DC5V, 0.5W |
DC5V, 1.25W |
| Environment |
Operating Temp. |
050C |
| Storage Temp. |
-2060C |
| Humidity |
080% RH, Non-condensing |
| Physical Properties |
Housing |
Metal |
| Weight |
0.16 kg |
Dimensions
(L x W x H) |
9.00 x 5.50 x 2.40 cm |
Patent No.
US 6160543
