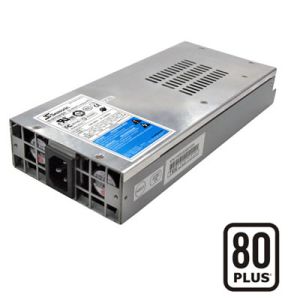

Seasonic 400w 1U Modular Power Supply, 80 Plus Certified, Over-voltage, Over-power, Short circuit protection

IMG 1 of 1
Our Price:
$210.80
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
203474
(?) Brand:
Seasonic
Manuf No:
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
, PSUSEA400H1U80P, 4711173870449
Seasonic SS-400H1U Active PFC 80+ 1U 400W Power Supply

SKU: PSUSEA400H1U80P

Features:

  • Specification compliance: Intel EPS12V
  • Forward converter circuit
  • High efficiency and reliability for industrial level
  • Easy swap connector design
  • High reliability ball bearing fan
  • Low ripple & noise
  • Smart & Silent Fan Control (S2FC)
  • Zero minimum load on 3.3V rail
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • 100% burn in, high temperature cycled on/off
  • PFC harmonics compliance: IEC1000-3-2 /EN61000-3-2 standards

Dimension:

  • L235 x W100 x H40mm (9.3” x 3.9” x 1.6” )

Fan type:

  • 38 x 38mm

Electrical Specifications:

  • Input frequency: 50 / 60 Hz
  • Inrush current, cold start: 100A max.
  • Efficiency, 220-240VAC, full load: 83% typical
  • Efficiency, 100-120VAC, full load: 80% typical
  • Dielectric withstand, input to frame/ ground: 1800VAC, 1sec.
  • Dielectric withstand, input to output: 1800VAC, 1sec.
  • Line regulation: +/-1% typical
  • Load regulation: +/-5% typical
  • Cross regulation: +/-5% typical
  • Ripple / noise: 1%
  • MTBF, full load@25? amb. : >100K hours
  • (Excluding the DC fan)
  • Power Factor Correction: Active PFC 99% typical
  • Safety: CUL, TUV, CB, CCC, BSMI
  • EMC: CE, FCC, C-tick

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.
