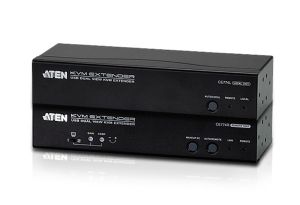

USB Dual View KVM Extender
ATEN CE774 Dual View KVM Extenders allows access to a computer system from a remote Dual View console up to 150 m away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced PC Wake - Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, effi cient and flexible. Use the improved built-in front panel tuners to easily adjust the picture quality.
Patent No.
US 8106898 , US 6160543 , CN ZL 01124239.6 , TW 150098 , US 6489854 , TW I243890 , JP 4160936 , DE 102004058233 , US 7532998 , CN ZL 200410042772.8 , US 7585176 , TW I339467 , CN ZL 200710181531.5
Package Contents
- 1x CE774L USB KVM Extender (Local Unit)
- 1x CE774R USB KVM Extender (Remote Unit)
- 1x VGA Cable
- 1x USB KVM Cable Set
- 2x Power Adapters
- 1x Mounting Kit
- 1x User Instructions
Features:
CE774 ATEN CE774 Dual View KVM Extenders allows access to a computer system from a remote Dual View console up to 150 m away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced PC Wake - Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, effi cient and flexible. Use the improved built-in front panel tuners to easily adjust the picture quality.

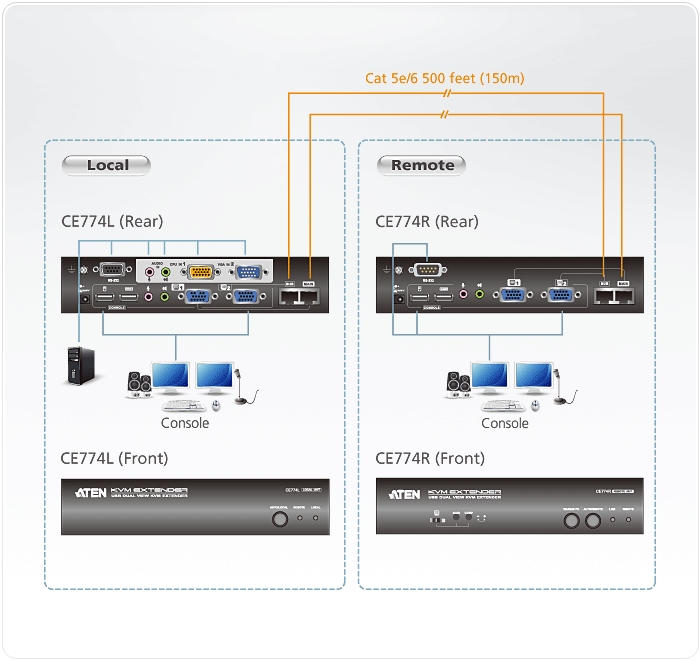

- Dual View Support - connect two screens to transmit two video output signals to a remote site up to 150 m awayusing inexpensive Cat 5e/6 cables
- Dual Console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- PC Wakeup support - from the remote console, simply use a pushbutton to wake a computer at the local site via RS-232
- Superior video quality1920x1200@60Hz(30 m), 1600x1200@60Hz(150 m)
- Gain/Compensation Controladjusts signal strength in order to compensate for distance
- RS-232 Channelallow you to connect to a serial terminal,or serial devices such as touchscreens and barcode scanners
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Sun/Mac keyboard support and emulation*
- 1. PC keyboard combinations emulate Sun/Mac keyboards
- 2. Sun/Mac keyboards only work with their own computers
Specifications:

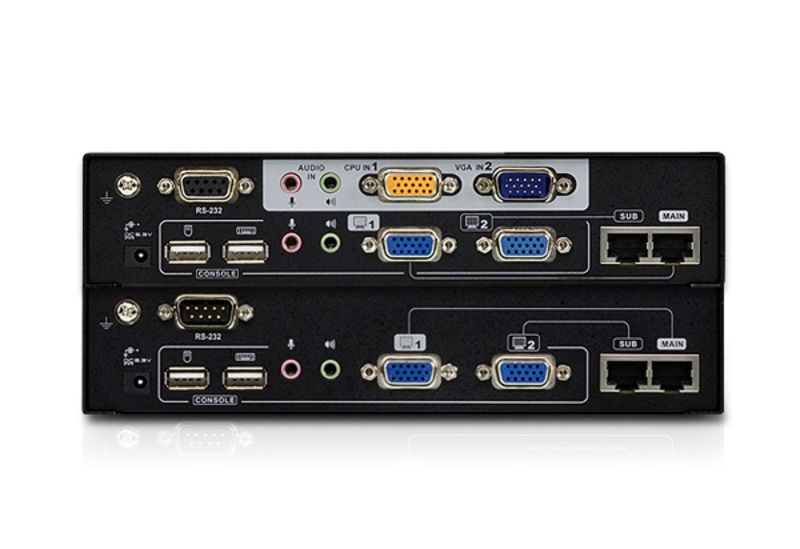

| Function |
CE774L |
CE774R |
| Connectors |
Console
Ports |
Keyboard |
1 x USB Type A Female (White) |
| Video |
2 x HDB-15 Female (Blue) |
| Mouse |
1 x USB Type A Female (White) |
| Speakers |
1 x Mini Stereo Jack Female (Green) |
| Mic. |
1 x Mini Stereo Jack Female (Pink) |
| Main |
1 x RJ-45 Female (Black) |
| Sub |
1 x RJ-45 Female (Black) |
KVM
Ports |
Keyboard / Video / Mouse |
1 x SPHD-17 Female (Yellow) |
N/A |
| Speakers |
1 x Mini Stereo Jack (Green) |
| Mic. |
1 x Mini Stereo Jack (Pink) |
| VGA Input |
1 x HDB-15 Male (Blue) |
| RS-232 |
1 x DB-9 Female (Black) |
1 x DB-9 Male (Black) |
| Power |
1 x DC Jack (Black) |
| Switches |
Operating Mode Selection |
1 x Pushbutton |
| Wakeup PC |
N/A |
1 x Pushbutton |
Video Output Port
Selection |
N/A |
1 x Slide Switch |
| Video Gain Tuner |
N/A |
1 x Knob |
Video
Compensation
Tuner |
N/A |
1 x Knob |
| LEDs |
Local |
1 (Green) |
N/A |
| Remote |
1 (Green) |
| Link |
N/A |
1 (Green) |
| Emulation |
Keyboard / Mouse |
USB |
| Video |
1920 x 1200 @ 60Hz (30 m);
1600 x 1200 @ 60Hz (150 m) |
| Power Consumption |
DC5.3V/4.38 W |
DC5.3V/7.95W |
| Environment |
Operating Temp. |
050C |
| Storage Temp. |
-2060C |
| Humidity |
080% RH, Non-condensing |
| Physical Properties |
Housing |
Metal |
| Weight |
0.69 kg |
Dimensions
(L x W x H) |
20.00 x 7.58 x 4.20 cm |
