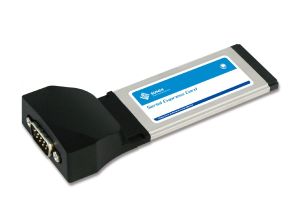

Sunix ECS1S00 ExpressCard 34mm RS-232 Serial (DB8M) - PCI-Ex1

IMG 1 of 1
Our Price:
$177.25
or quickly purchase this product
Order In from SupplierShips from our warehouse in 1-3 business days
Part Number:
217652
(?) Brand:
Sunix
Manuf No:
EXP-1S
EXP1S
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
EXP1S, EXP-1S, 12831, 4710747380148

Sunix ECS1S00 Express Card 34mm RS-232 Serial (DB9M) - Single Port


Description

Expands one RS-232 serial ports with communication speeds up to 921.6Kbps.

  • With high reliable SUNIX SUN2212 native PCI Express 16C950 UART controller.
  • Designed to meet PCI Express Base Specification Revision 2.0.
  • Full single-lane (or x1) PCI Express throughput.
  • Compliant with ExpressCard 34 and 54mm slot.
  • Built-in 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Hot-swapping feature allows you to connect/disconnect devices without powering down the system.
  • Certified by CE, FCC, RoHS, and Microsoft WQHL approval.
  • Support Microsoft Windows, Linux, and DOS.



    Specifications

    General

    Interface RS-232
    Controller SUNIX SUN2212 (16C950 UART Compatible)
    BUS PCI Express Spec 2.0, Single-Lane (x1)
    IRQ & IO Assigned by System

    Serial Communication

    Interface RS-232
    No. of Port 1-port
    FIFO 128byte Hardware
    Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
    Baud rate 50bps ~ 921.6Kbps
    Data bit 5, 6, 7, 8
    Stop bit 1, 1.5, 2
    Parity even, odd, none, mark, space
    Flow Control None, Xon/Xoff, RTS/CTS
    Protection 15KV ESD protection for each signal Human Body Model (HBM)
    15KV IEC1000-4-2 Air Gap Discharge
    8KV IEC1000-4-2 Contact Discharge
    PCB Connector DB9 Male

    Driver Support

    Microsoft Client XP/Vista/7/ 8 (X86/X64)
    Microsoft Server 2000/2003/2008 / 2008R2 (X86/X64)
    Microsoft Embedded Windows CE4.2/5.0/6.0 / XP Embedded / POS Ready 2009 /
    Embedded System 2009
    Linux Linux 2.4.x/2.6.x/3.x
    DOS DOS
    FreeBSD FreeBSD 5.3~5.5 / 6.0~6.4
    QNX QNX 6.3.2/6.4.0

    Regulatory Approvals

    Hardware CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B
    FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
    Software Microsoft WHQL Windows
    Microsoft Client: XP / Vista / 7 / 8 (X86/X64)
    Microsoft Server: 2000 / 2003 / 2008 (X86/X64)

    Environment

    Operation Temperature 0 to 60C (32 to 140F)
    Operation Humidity 5 to 95% RH
    Storage Temperature -20 to 85C (-4 to 185F)

    Dimension

    Iron Case 80(W) x 34(D) x 5(H) mm
    Plastic Case 36(W) x 44(D) x 20(H) mm

    • No additional files, specification sheets, guides or documentation found for product.

    Warranty: 1 Year Return to Base

    Full manufacturers warranty details are available at the manufacturers web site.

    Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

    To apply for return of a product just go to our returns page.

    These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
