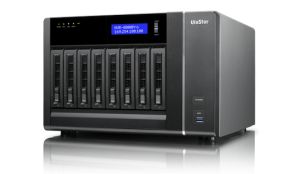

VS-8132 Pro+
32-channel / 8-bay / HDMI/VGA Local Display / Tower NVR
Features
The QNAP VS-8132 Pro+ VioStor NVR (Network Video Recorder) is a 32-channel network surveillance server which supports high quality real-time video/audio monitoring, megapixel recording (up to 10-megapixel), and playback of multiple IP cameras. The 8-drive VS-8132 Pro+ offers maximum 24TB physical storage (using 3TB hard drives) with hot-swappable RAID technology for high data redundancy. The VS-8132 Pro+ is capable of H.264, MxPEG, MPEG-4, and M-JPEG recording from up to 32 IP cameras. The standalone Linux-based NVR can be easily set up in 6 steps by Internet Explorer without extra software required or even without PC via the HD (high definition) HDMI or VGA local display.
The VioStor NVR is compatible with more than 1,000 IP cameras and video servers from popular brands including AXIS, ACTi, A-MTK, Arecont Vision, AVTECH, Brickcom, Canon, Cisco, CNB, DIGITUS, D-Link, EDIMAX, ELMO, EtroVision, GANZ, Hikvision, iPUX, IPX, IQeye, LevelOne, Linksys, Messoa, MOBOTIX, NAKAYO, Panasonic BB/BL/i-Pro, SANYO, SHANY, Sony, Samsung, TOA, TOSHIBA, TRENDnet, Videosec, VIOSECURE, VIVOTEK, Y-CAM, and Yokogawa.
Powerful Features of the VioStor NVR (Network Video Recorder):
Real-time monitoring and recording (video/audio) from maximum 32 IP cameras- High quality H.264, MPEG-4, M-JPEG, and MxPEG recording (depending on the camera models)
- Complete recording features
- Megapixel recording (up to 10-megapixel)
- PC-less network surveillance by HD (high definition) HDMI or VGA local display
- Multi-server monitoring (up to 128 channels)
- Dual display mode
- Dynamic E-map
- Video search by date and time, timeline, and event
- Intelligent video analytics (IVA)
- Multi-view playback from multiple NVR servers
- Real-time digital watermarking for recording
- Advanced event management
- Real-time SMS and email alert
- VMobile surveillance app: Remote monitoring of IP cameras by Android phones, iPhone, iPad, iPod touch, and Windows PDA phones
- Trouble-free installation
- Linux-embedded, highly reliable standalone NVR
- Advanced RAID with hot-swappable hard drives design
- Online RAID capacity expansion and online RAID level migration
- UPS support for 24/7 service
- Intelligent automatic power on after power recovery
Surveillance Features
Complete Recording Functions
High Quality H.264, MPEG-4, M-JPEG, and MxPEG Recording (depending on the camera models)
All-in-one Recording Functions
Continuous, manual, schedule recording *- Alarm recording (by multiple events), alarm recording schedule *
- Pre-alarm and post-alarm recording
- Audio recording
* Different recording schedules for the IP cameras.
Megapixel Recording
The VioStor NVR supports megapixel recording (up to 10-megapixel) from various IP cameras.
Generic IP Cameras Support
The VioStor NVR provides an interface for the users to enter the JPEG CGI command of their IP cameras to retrieve the video and audio data from the IP cameras.
Real-time Digital Watermarking
The VioStor NVR supports real-time digital watermarking to protect the videos and snapshots from unauthorized modification. The Watermark Proof utility is provided to verify whether or not the videos and snapshots are original.
PC-less Network Surveillance by HD HDMI or VGA Local Display
Diversified Modes for Local Monitoring
- 1, 4, 6, 8, 9, 10, or 12-channel display mode
- Sequential display mode
High Resolution Local Display
The VioStor NVR provides an HDMI interface which can be connected to an HDMI monitor or TV for monitoring in full HD (1920 x 1080) resolution.
Convenient Control of PTZ and Speed Dome Cameras
The PTZ (Pan/Tilt/Zoom) cameras can be adjusted directly and the preset positions of the IP cameras can be viewed on the local display interface of the VioStor NVR.
Digital Zoom
Digital zoom (in/out) of the video image is supported on the monitoring and playback interfaces of the NVR.
On-screen Event Alert
When an event occurs, an alert icon will be shown instantly on local monitoring page. The alert details can be viewed by clicking the alert icon.
Video Search
The VioStor NVR supports convenient video search by date and time on the local playback interface.
Local Video Playback on HDMI Monitor or TV
The VioStor NVR supports video playback directly on an HDMI monitor or TV.
Quick System Setup
The VioStor NVR can be set up in simple steps on the local display interface.
Network Surveillance by Web-based Interface (Internet Explorer)
Real-time Remote Monitoring
Multi-server Monitoring
Connect to one VioStor NVR and monitor up to 128 channels from other VioStor NVR servers over LAN or WAN by an IE browser.
Diversified Remote Monitoring Modes
- 1, 4, 6, 8, 9, 10, 12, 16, 20, 25, 36, or 42-channel and sequential display mode
- Exclusive Picture-in-Picture mode
- Multi-display mode
Smart Control of PTZ & Speed Dome Cameras
The PTZ (Pan/Tilt/Zoom) cameras can be adjusted directly by the web user interface of the VioStor NVR.
Preset Position Control and Auto Cruising
The preset positions of an IP camera can be viewed by clicking the corresponding number buttons on the monitoring page. The time interval can also be configured on the PTZ cameras for periodic monitoring.
Instant Event Notification
When alarm recording is enabled and an event occurs, an alarm icon is shown instantly on the monitoring page. The alert details can be viewed by clicking the icon.
Digital Zoom
Digital zoom (in/out) of the video image is supported on the monitoring and playback interfaces.
Dynamic E-map
The VioStor NVR provides an E-map function for users to upload the digital maps and indicate the locations of the IP cameras of a monitoring location or region.
Remote Video Playback
Multi-view Playback
Use the multi-view playback feature to divide a video equally into multiple sessions for playback in a multi-view window, or play the videos of multiple IP cameras in the multi-view window simultaneously.
Video Search by Date and Time, Timeline, Event, Intelligent Video Analytics (IVA)
The VioStor NVR supports quick video search by date and time, timeline, event, and intelligent video analytics (IVA), which includes motion detection, foreign object, missing object, out of focus, and camera occlusion.
Event Management
Advanced Event Management
The VioStor NVR supports various event handling options for different kinds of events.
The VioStor NVR supports various event handling options for different kinds of events.
- Events: Motion detection, alarm input, connection failure, recording failure, and user-defined event.
- Actions: Video recording, email alert, SMS alert, buzzer, PTZ camera control, alarm output, and user-defined action.
Real-time SMS and Email Alert
Configure the SMTP server and SMSC server settings on the NVR in order to receive instant system warning or error messages by email and/or SMS.
Convenient Backup Solution
Scheduled Remote Replication
The VioStor NVR supports scheduled remote replication for secure data backup to a remote QNAP NAS on the local network.
The VioStor NVR supports scheduled remote replication for secure data backup to a remote QNAP NAS on the local network.
One Touch Auto Video Backup
Configure the one touch auto video backup button on the front of the NVR to copy the data from the NVR to an external storage device when the button is pressed.
Security Control
Authority Management
Create multiple users on the VioStor NVR and assign them to different user groups (administrator, system manager, or user) with different rights of monitoring, playback, PTZ control, and audio monitoring.
Auto Logoff
The VioStor NVR supports automatic user logoff from idling configuration pages. The administrator can set the timeout period to log off the users when the idling time has reached.
Host Access Control
Specify the host or IP connections to be allowed and denied to access the NVR.
On-line User List
View the record of users currently logged on and previously logged on to the NVR.
Detailed Event Logs
The VioStor NVR provides detailed event logs of system warning, hard disk error, network disconnection, UPS status, and access to the networking services of the NVR and video recordings.
High Reliability and Smart Features
Advanced RAID with Hot-swap Design
The VioStor NVR supports RAID 0, 1, 5, 6, 5+hot spare, 6+hot spare, single, and JBOD disk configurations. Its hot-swap design allows a failed drive of a disk volume, RAID 1 or above, to be replaced by hot swapping without turning off the server.
The VioStor NVR supports RAID 0, 1, 5, 6, 5+hot spare, 6+hot spare, single, and JBOD disk configurations. Its hot-swap design allows a failed drive of a disk volume, RAID 1 or above, to be replaced by hot swapping without turning off the server.
Online RAID Capacity Expansion and Online RAID Level Migration
Online RAID Capacity Expansion
The storage capacity of a RAID configuration can be expanded by replacing the hard drives with larger ones. All the data will be kept and seamlessly moved to the newly installed hard drives. There is no need to turn off the server during the process.
Online RAID Level Migration
Upgrade the disk configuration to higher RAID level with the data retained without turning off the server.
S.M.A.R.T. & Advanced
HDD Health Scanning (HHS)
S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) helps monitor the hard disk drives status. The VioStor NVR supports HHS (HDD Health Scan) for disk checking and bad blocks scanning.
Automatic System Startup after Power Recovery
The VioStor NVR supports automatic system startup after a power recovery.
UPS Support for 24/7 Service
The VioStor NVR supports APC, CyberPower, MGE, and YEC UPS devices to provide continuous services 24/7 against unexpected power outage.
DOM Architecture with Embedded Fail-safe Dual OS for Enhanced Reliability
All the OS and applications of the VioStor NVR are embedded on the DOM. The VioStor NVR allows system booting without accessing the physical disk sectors which prevents unsuccessful system startup caused by bad blocks or file errors on the hard drives. Two operating systems are built on the DOM for system booting alternatively upon every system startup. When one fails, the other one for system startup and the failed OS is recoverable from the other healthy OS.
Network Services
Dual Gigabit LAN Ports
- Failover
This mode allows the VioStor NVR to sustain the failure of one network portto provide continuous services.
- Load Balancing
This mode provides bandwidth aggregation to boost the file transfer speed (works with managed Ethernet switch with 802.3ad configured).
- Multi-IP Settings
Two IP settings can be configured on the NVR to allow network access from two different subnets.
Built-in DDNS Service
The VioStor NVR supports dynamic DNS (DDNS) for convenient access to the system via a domain name instead of a lengthy IP address.
Built-in NTP Server
This feature allows the connected IP cameras to synchronize their date and time settings with the NVR.
Convenient Data Access
The video data on the VioStor NVR can be accessed by the following protocols with proper access rights:
- SMB/CIFS (Windows)
- HTTP (Web file management)
- FTP
Easy Configuration and Management
System Setup in Simple Steps
The NVR can be set up in 6 simple steps by the local display or web-based interface (Internet Explorer).
Web-based User Interface
All system configurations, monitoring, and playback features of the NVR can be managed by the web-based interface.
Smart Search of IP Cameras for Quick Settings
QNAP provides an intelligent software utility Finder for quick IP cameras search and system settings on the local network.
Excellent Hardware Design
Intel Core i3 CPU and DDRIII Memory for Superior System Performance
Powered by Intel Core i3 CPU and DDRIII memory, the VioStor NVR delivers superior performance for surveillance applications.
Linux Embedded System
The Linux-based VioStor NVR is more power-saving and less vulnerable to virus attack compared to PC-based surveillance solution.
Touch-N-Go PC-less Installation
Complete the first-time system installation, including hard disk initialization and RAID configuration, of the NVR by the LCD panel without using any PC.
Huge Storage Capacity for Long-term Recording
The VioStor NVR supports up to 24TB of physical storage capacity (3TB hard drive x 8) for recording large amount of video data in a long period of time.
| Recording |
| Number of Channels Supported (Recording) |
Up to 32 |
| Recording Mode |
Continuous/ manual/ schedule recording
Alarm recording/ multiple alarm recording schedules
|
| Buffer Storage for Alarm Images (before and after events) |
Pre-recording: Up to 300 sec
Post-recording: Up to 300 sec
|
| Recording Performance |
Up to 30 fps at H.264, 720P for each channel
* Real performance may vary in different environment |
| Megapixel Recording |
Supports megapixel cameras (up to 10-megapixel) |
| Network Throughput |
400 Mbps |
| File Format |
AVI (QNAP codec is required for playback) |
| Recording Enhancement |
Real-time digital watermarking, auto snapshot |
| Local Display |
| Display Mode |
1, 4, 6, 8, 9, 10, 12, or 16-channel display mode, sequential display mode |
| Local Monitoring Enhancement |
Full screen display, event notification, PTZ control, digital zoom |
| Local Playback |
Single view playback from local NVR server |
| Search Mode for Local Playback |
By date & time |
| Playback Control |
Play, pause, stop, reverse play, next/ previous video file, different speed control |
| Local Playback Enhancement |
Full screen display, digital zoom |
| Export |
Convert multiple recording files to the external USB device instantly |
| System Administration |
Quick configuration, administration password, network settings, time settings, disk volume configuration, camera settings |
| Remote Monitoring |
| Display Mode |
1, 4, 6, 8, 9, 10, 12, 16, 20, 25, 36, or 42-channel display, Picture-in-Picture, sequential mode, multi-display mode |
| Video Compression |
H.264/ MPEG-4/ M-JPEG/ MxPEG (depending on the camera models) |
| Video Setting |
Resolution, Quality, Frame Rate |
| Multi-server Monitoring |
Up to 128-channel monitoring from multiple VioStor NVR servers |
| Monitoring Enhancement |
Full screen display, video snapshot, manual recording, event notification, PTZ control, digital zoom |
| Dynamic E-map |
Uploading the digital maps and indicating the locations of the IP cameras and GPI devices of a monitoring location or region |
| |
|
| Remote Playback |
| Playback Channel |
Max 16-view playback from multiple NVR servers simultaneously |
| Search Mode |
By date & time, timeline, event, and intelligent video analytics (IVA) |
| Intelligent Video analytics (IVA) |
Motion detection, missing object, foreign object, out of focus, and camera occlusion |
| Playback Mode |
Play, pause, stop, reverse play, next/ previous frame, next/ previous video file, different speed control |
| Display Mode |
Single playback view, 4 playback views, 9 playback views, 16 playback views |
| Playback Enhancement |
Full screen display, video snapshot, digital zoom, digital watermarking |
| Export |
Convert recording files to one avi file |
| Download |
Download recordings via the web |
| |
|
| Advanced Event Management |
| Events |
Motion detection, alarm input, connection failure, recording failure, and user-defined event |
| Actions |
Video recording, email alert, SMS alert, buzzer, PTZ camera control, alarm output, and user-defined action |
| Backup |
| Schedule Remote Replication |
Schedule video data backup to a NAS on the local network
|
| Video Backup to External USB Storage by One touch auto video backup Button |
Press and hold the one touch auto video backup button for 3 seconds. The recording data on VioStor will be copied to the external USB device instantly. |
| Security Control |
| Authority Management |
Different user groups and rights can be assigned to different users |
| Host Access Control |
Specify the connections to be allowed and denied to access the VioStor NVR |
| Auto Logoff |
Automatic user logoff from idling configuration pages |
| Event Logs |
Detailed event logs |
| On-line Users List |
Record of the users currently logged on and previously logged on to the VioStor NVR |
| Digital Watermarking |
Verify whether or not the videos and snapshots are original |
| Reliability |
| Operation System |
Linux-embedded system, free from PC crash and virus attack |
| Disk Management |
Single disk, RAID 0, RAID 1, RAID 5, RAID 5+ hot spare, RAID 6, RAID 6+ hot spare, and JBOD/Linear
Online RAID Capacity Expansion, Online RAID Level Migration
HDD S.M.A.R.T., bad blocks scan
|
| UPS |
APC/ CyberPower/ MGE/ YEC (USB UPS)
|
| Network Services |
| Support |
HTTP, TCP/IP, SMTP, DHCP, Static IP, DNS, DDNS, FTP, NTP, UPnP, failover, load-balancing, multi-IP setting |
| Dual Gigabit LAN |
Failover/ load-balancing/ multi-IP setting |
| Services |
Web File Manager, FTP, SMB/CIFS |
| Language Support |
| Language |
Czech/ Danish/ Dutch/ English/ French/ Finnish/ German/ Hungarian/ Italian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Russian/ Spanish/ Swedish/ Simplified Chinese/ Traditional Chinese/ Turkish |
| Client PC Requirement (Suggested system requirement for better video performance) |
| CPU |
M-JPEG format (up to 32 channels):Quad core CPU 2.33GHz or above
MPEG-4/ H.264/ MxPEG format (up to 32 channels):Core i7 CPU 2.8GHz or above * For higher surveillance performance, please select more advanced PC models. * For higher surveillance performance, please select more advanced PC models.
|
| Memory |
2 GB or above |
| Operation System |
Microsoft Windows XP/ Vista/ 7 |
| Web Browser |
IInternet Explorer 6.0 or above |
| Network Interface |
10/100/1000 Mbps |
| View Resolution |
1024 x 768 pixels or above |
| Utility Software |
| QNAP Finder |
Discovery and quick setup of the VioStor NVR |
| VioStor Player |
Play the recording files on your Windows computer easily |
| Watermark Proof |
Check if the exported videos and snapshots were modified |
| VMobile |
Monitor the network cameras on the VioStor NVR by the Android phone, Android Tablet, iPhone, iPad, iPod touch, and Windows phone (6.1~6.5) |
Specifications:
| Processor |
Intel Core i3-2120 processor |
| HDD Capacity |
8 x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive
NOTE:
- The system is shipped without HDD.
|
| HDD Tray |
8 x hot-swappable and lockable tray |
| LAN Port |
2 x Gigabit RJ-45 Ethernet port |
| LED Indicators |
Status, LAN, USB, hard drive LEDs |
| USB |
2 x USB 3.0 (front:1; back:1)
4 x USB 2.0 (rear:4)
Front: for USB storage device (One touch auto video backup)
Rear: for UPS device |
| Buttons |
System: Power button, one touch auto video backup button, reset button |
| LCD Panel |
Mono-LCD display with backlight
Enter button, Select button for configuration |
| Alarm Buzzer |
System warning |
| Form Factor |
Tower |
| Dimensions |
217.5(H) x 327(W) x 321.2(D) mm
8.56(H) x 12.8(W) x 12.65(D) inch |
| Weight |
Net weight: 8.39 kg (18.48 lb)
Gross weight: 13.98 kg (30.79 lb) |
| Operation Environment |
Temperature 0~40C/ 32~104F
Humidity 0~90% R.H. |
| Power Supply |
Input: 100-240V AC, 50/60Hz, Output: 350W |
| Power Consumption |
101W Write/Read (with 8 x 1TB HDD installed) |
| Secure Design |
K-Lock security slot for theft prevention |
| Video Output |
1x HDMI
1x VGA |
| Fan |
2 x 12cm smart cooling fan |
| Certification |
CE, FCC, VCCI, BSMI, C-Tick |
