P9D-M
Space-saving with optimized features

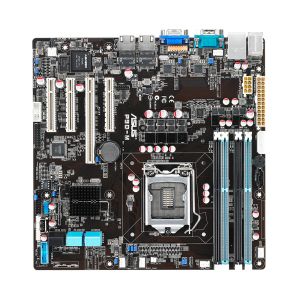

The ASUS P9D-M is a micro ATX form factor serverboard featuring the latest Intel Xeon E3-1200 v3 processor family, dual Intel server-class I210 LAN ports, SATA 6Gb/s, and digital power delivery. These make the P9D-M a great serverboard for small form factor servers, data centers, and SMB printer/file/mail/exchange servers.
Overview
Micro ATX compact form factor increases density
The 9.6 x 9.6 micro ATX form factor of the P9D-M fits various small form factor applications. In addition, it can be easily integrated in short-depth chassis to greatly increase rack compute density and provide higher computing power per rack.
Excellent I/O Design
The ASUS P9D-M has a total of four PCI Express slots and support up to four USB 3.0 ports. It is built to connect easily with next generation components and peripherals, as USB 3.0 transfers data 10X faster than USB 2.0 while maintaining full backward compatibility.
Dual Intel I210AT Gigabit Ethernet
The ASUS P9D-M ships with dual server-class Intel Ethernet ports with the I210AT controllers, which doubles queues compared to previous-generation Intel 82574L controllers. This is better for virtualization applications. In addition, the dual LAN teaming ports provide high networking bandwidth with load balance and fault tolerance functions. This design greatly reduces data processing bottlenecks during network traffic.
Friendly Design for front I/O, front VGA
An accessible rear power button is reserved onboard for use as front panel ports when reversing the serverboard. An extra 15-pin VGA header features front-panel monitor connectivity, helping customers with greater flexibility. These designs provide flexible I/O integration for users to fit in various computing environments.
High power efficiency with digital power control
Digital CPU power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste and provides more stable voltage. P9D-M power efficiency reaches an impressive 90%.
SATA DOM (Disk on Module) ready
A SATA DOM is a flash drive simulating a hard disc which can be used without additional software or drivers. It is particularly helpful within embedded computing systems or thin clients. ASUS-exclusive design adds an onboard 4-pin power connector and USB header to make SATA DOM installation simple and easy.
Comprehensive server management: ASMB7-iKVM and ASWM Enterprise
The ASMB7-iKVM upgrade kit enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB7 function is based on BIOS-level access, so even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface via all major browsers. ASWM Enterprise software provides one-to-multiple centralized management, including BIOS flash, remote control, and power control, all through a colorful and informative graphical interface.
Specifications:
- Processor / System Bus
1 x Socket LGA1150
Intel Xeon processor E3-1200 v3 product family
*Refer to www.asus.com for CPU Support list
- Core Logic
Intel C224 Chipset
- Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 32GB UDIMM
Memory Type :
DDR3, 1333/1600, UDIMM, with ECC
Memory Size :
2GB, 4GB, 8GB
- Expansion Slots
Total Slot : 4
Slot Location 4 : PCI-E x8 (Gen2 X4 Link)
Slot Location 5 : PCI-E x8 (Gen3 X4 Link)
Slot Location 6 : PCI-E x16 (Gen3 X8 Link)
Slot Location 7 : PCI-E x8 (Gen3 X4 Link)
Follow SSI Location#
- Form Factor
U ATX (9.6"x9.6")
- ASUS Features
FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASWM Enterprise
- Storage
SATA Controller :
Intel C224
4 x SATA3 6Gb/s ports
2 x SATA2 3Gb/s ports
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI MegaRAID (For Linux/Windows)
(Support Software RAID 0, 1, 10 )
- Networking
2 x Intel I210AT + 1 x Mgmt LAN
- Graphic
Aspeed AST2300 with 32MB VRAM
- On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x Management Connector , Onboard header for management card
1 x USB 3.0 pin header , Up to 2 Devices
1 x USB 2.0 pin header , Up to 2 Devices
1 x Internal A Type USB Port*1
5 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
2 x Front LAN LED
1 x Serial Port Header
1 x SATA DOM Power connector*2
1 x VGA Header
- Back I/O Ports
1 x External Serial Port
4 x External USB Port (2 x USB 3.0, 2 x USB 2.0)
1 x VGA Port
2 x RJ-45 + 1 x Mgmt LAN
1 x PS/2 KB/Mouse
- Management Solution
Software: ASWM Enterprise
Out of Band Remote Management: Optional ASMB7-iKVM for KVM-over-Internet
- Regulatory Compliance
CE, FCC(Class B)
- Environment
Operation temperature: 10 ~ 35
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
- Accessories
Standard Gift Box Pack
1 x User Guide
2 x Support CD
1 x I/O shield
4 x SATA 6G cables + 2 x SATA 3G cables
1 x Plate for LGA1150
Standard Bulk Pack
1 x User Guide
2 x Support CD
1 x I/O shield
1 x Plate for LGA1150
- Product SKUs
Standard Gift Box Pack
Standard Bulk Pack
- Monitoring
CPU Temperature
Fan RPM
- Note
*1 1 x USB 2.0 connector
*2 4-pin power connector
