Specifications
|
| Product Description |

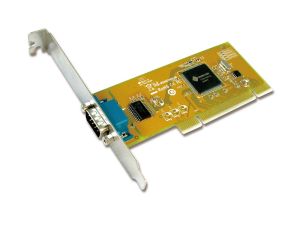

1-port RS-232 Universal PCI Serial Board |
Serial Communication
|
| Interface |
RS-232 |
| Controller |
SUNIX SUN1989 (16C950 UART Compatible) |
| Bus |
Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
| No. of Port |
1-port |
| IRQ & IO |
Assigned by System |
| FIFO |
128 byte (Hardware) |
| Signal |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI |
| Baud rate |
50 bps to 115.2 Kbps |
| Data bit |
5,6,7,8 |
| Stop bit |
1,1.5,2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
None, Xon/Xoff, RTS/CTS |
| Protection |
2KV ESD protection for each signal Human Body Model (HBM) |
| PCB connector |
DB9 Male |
Driver Support
|
| Windows Client |
XP/Vista/7/8/8.1 (X86/X64) |
| Windows Server |
2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64) |
| Windows Embedded |
Windows CE 4.2/5.0/6.0
XP Embedded / POSReady 2009 / POSReady 7 / Embedded System |
| Linux |
Linux 2.4.x / 2.6.x / 3.x |
| DOS |
DOS |
| FreeBSD |
FreeBSD 5.3~5.5 / 6.0~6.4 |
| QNX |
QNX 6.3.2/6.4.0 |
| * IBM OS/2 |
WARP 3/WARP 4 |
| * SCO UnixWare |
UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0 |
| * Sun Microsystems |
Solaris 10 |
| Note : * Supported by special inquiry. |
Regulatory Approvals
|
| Hardware |
EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS |
| Software |
Microsoft WHQL Windows
Windows Client: XP/Vista/7/8/8.1 (X86/X64)
Windows Server: 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64) |
Environment
|
| Operation Temperature |
0 to 60C (32 to 140F) |
| Operation Humidity |
5 to 95% RH |
| Storage Temperature |
-20 to 85C (-4 to 185F) |
Dimension
|
| PCB Dimension |
120 x 51 mm |
| Bracket |
Standard 121 mm |
| Bracket Space |
1 |
