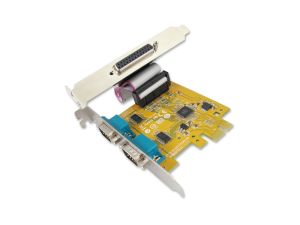

MIO6479A 2-Port Serial RS-232, 1-Port Parallel IEEE1284 - PCI Card

The majority of todays motherboards are not equipped with any RS-232 or Parallel port. With SUNIX MIO6479A Multi I/O board, users can expand two RS-232 COM and one IEEE1284 LPT ports to their system, allowing them to use serial and parallel devices further. This board is compatible with PCI Express x1, x2, x4, x8 and x16 lane, allowing the board to be installed in virtually any PC system. SUNIX MIO6479A built-in SUNIX high performance and realizable native PCI Express controller, and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation application.


Features


  • Expands 2-port RS-232 COM and 1-port IEEE1284 LPT on system.
  • With high reliable SUNIX SUN2410 native PCI Express 16C950 UART and IEEE1284 controller.
  • Designed to meet PCI Express Base Specification Revision 2.0.
  • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Support IEEE 1284-1994 parallel port standard.
    * ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port).
    * SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port).
  • Plug-n-Play, I/O address and IRQ assigned by system.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

Specifications



General


Interface RS-232 and IEEE1284
Controller SUNIX SUN2410 (16C950 UART Compatible)
BUS PCI Express Spec 2.0, Single-Lane (x1)
IRQ & IO Assigned by System



Serial Communication


Interface RS-232
No. of Port 2-port
FIFO 128byte Hardware
Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Baud rate 50bps ~ 115.2Kbps
Stop bit 1, 1.5, 2
Parity even, odd, none, mark, space
Flow Control None, Xon/Xoff, RTS/CTS
Protection 15KV ESD protection for each signal Human Body Model (HBM)
15KV IEC1000-4-2 Air Gap Discharge
8KV IEC1000-4-2 Contact Discharge
PCB Connector DB9 Male



Parallel Communication


Interface IEEE1284
No. of Port 1-port
Mode SPP / ECP / EPP / BPP
FIFO 16byte Hardware
Speed Maximum 1.8MBps
PCB Connector DB25 Female



Driver Support


Windows Client XP/Vista/7/8/8.1 (X86/X64)
Windows Server 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64)
Windows Embedded Windows CE 4.2/5.0/6.0
XP Embedded / POSReady 2009 / POSReady 7 / Embedded System
Linux Linux 2.4.x/2.6.x/3.x
DOS DOS



Regulatory Approvals


Hardware CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B
FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
Software Microsoft WHQL Windows
Windows Client: XP/Vista/7/8/8.1 (X86/X64)
Windows Server: 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64)



Environment


Operation Temperature 0 to 60C (32 to 140F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85C (-4 to 185F)



Dimension


PCB Dimension 78 x 85 mm
Bracket Standard 121 mm
Bracket Space 1
