Energy Box

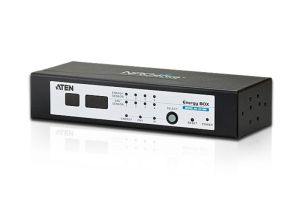

The EC1000 Energy Box is the latest evolution of NRGence™ – ATEN's energy intelligence solutions. It is the intelligent, cost effective solution to monitor ATEN's Energy PDUs – to ensure safe and effective energy-saving power management.

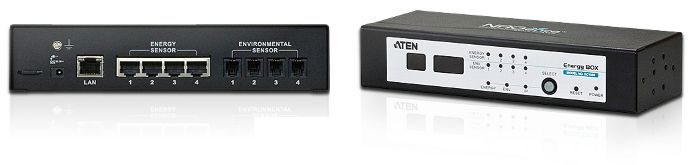

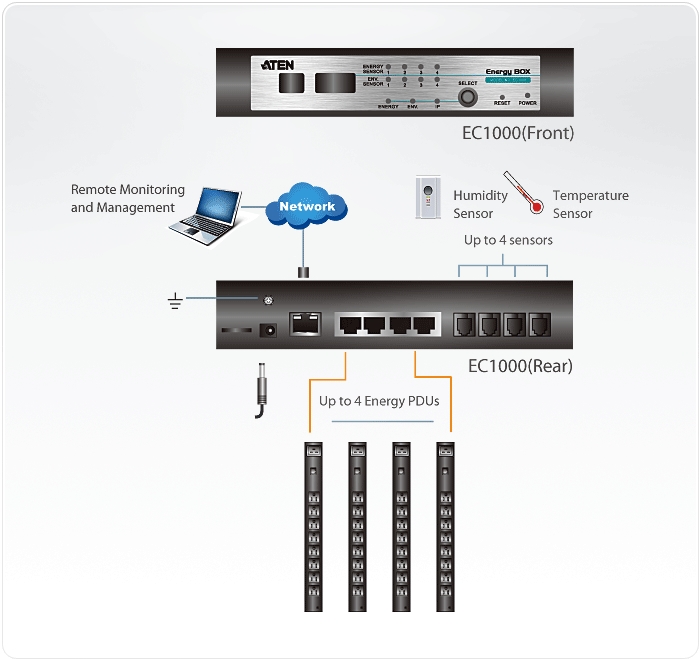

The EC1000 Energy Box has four Energy Sensor ports to connect to four Energy PDU modules and four Environment Sensor ports for external sensors to monitor environmental conditions. Each environmental sensor can provide measured readings of temperature, humidity, and differential pressure from separate areas of a data room, giving a wide range of monitoring and protection you need.
The Energy Box allows power and environmental data to be monitored and displayed at the rack or remotely for easy viewing and maintenance. The Energy Box is a standalone unit with Over IP monitoring that is controlled by Web GUI or ATEN´s eco Sensors software.
The EC1000 Energy Box features real-time status, system logs, threshold alerts, and event notifications. The EC1000 logs power and environmental conditions according to customizable minimum/maximum thresholds set for electrical current, temperature, humidity, and differential pressure.
Remote monitoring offers secure access with 128bits SSL encryption, and customizable account policies for user management. Remote authentication supports RADIUS and additional management interfaces including HTTP, HTTPS, and SNMPv1&v2&v3 (Read, Write, Trap). Event notifications can be monitored via Syslog/SMTP/SNMP trap and audible alarms for real–time local and remote alerting.
When used in conjunction with ATEN´s Energy PDUs* and eco Sensors Energy Management Software*, the EC1000 allows you to conveniently upgrade your cabinet with remote energy management functionality to make your server room go green quickly and cost-effectively.
Package Contents
- 1x EC1000 Energy Box
- 1x Power Adapter
- 1x Mounting Kit
- 4x RJ-45 Cables
- 1x CD ROM (Manual, eco Sensors Software)
- 1x User Instructions
Features:
Operation
- Space saving 1U rack mounting with front and rear mounting
- 4 RJ-45 Energy Sensor Ports to monitor four Energy PDU currents (0A to 32A per port)
- 4 RJ-11 Environment Sensor Ports to monitor temperature, humidity, and differential pressure*
- Maximum Amperage Monitor 32A@100V~240V (Energy Box)
- 3 digit 7 segment front panel LED displays current/sensor/IP address informationThreshold monitoring for:
- 1.Current
- 2.Temperature*
- 3.Humidity*
- 4.Differential pressure*
- Threshold alerting through:
- 1. Local: audible alarm and LED lights
- 2. Remote: SMTP/SNMP trap/Syslog
Management
- Front panel LED indicators for current, temperature*, humidity*, differential pressure*, and IP address information at the Energy Box
- Remote real-time current, temperature*, humidity*, and differential pressure* monitoring and management
- Management through eco Sensors Energy Management Software or 3r party SNMP manager
- Supports name assignment for individual Energy PDUs
- Event Logging – 128 line event log
- Syslog support
- F/W upgradable
Remote Access
- Remote management via TCP/IP using built in 10/100Mbps Ethernet port
- Management via built in browser based GUI
- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
- Supports SNMP Manager V1, V2, V3
Security
- Strong security features include password protection and advanced encryption technologies – utilizing 128 bit SSL
- RADIUS authorization and authentication
* Requires external sensors
Specifications:
| Energy PDU Connections |
4 |
| Port Selection |
Pushbutton |
| Connectors |
Energy Sensor |
4 x RJ-45 Female |
| Environment Sensor |
4 x RJ-11 Female |
| Power |
1 x DC Jack |
| LAN |
1 x RJ-45 Female |
| Switches |
Reset |
1 x Semi-recessed Pushbutton |
| Selection |
1 x Selection Pushbutton |
| LEDs |
PDU Status |
4 (Orange) |
| Sensor Status |
4 (Green) |
| Energy/Environment/IP |
3 (Green) |
| Selection |
1 digit 7-segment (Orange) |
| Current/Sensor/IP Address |
3 digit 7-segment (Orange) |
| Power |
1 (Blue) |
| LAN |
10M/ 100Mbps |
1 (Orange/Green) |
| Link |
1 (Green) |
| Monitoring Range |
100240V; 50/60Hz; 0A to 32A (per port)
LED Display Resolution 0.1A
Precision: 0.1A@0 ~ 1A, 1% >1A |
| Power Consumption |
DC 5.3 V |
| Environment |
Operating Temp. |
0-50C
|
| Storage Temp. |
-20-60C |
| Humidity |
0 - 80% RH, Non-condensing |
Physical
Properties |
Housing |
Metal |
| Weight |
0.59 kg |
Dimensions
( L x W x H ) |
20.00 x 7.59 x 4.20 cm |
