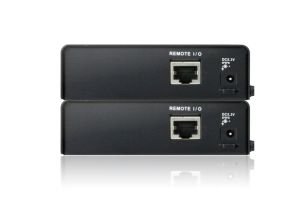

ATEN VE812 HDMI Over Cat Extender - 1080p Up to 100m

IMG 1 of 1
Our Price:
$775.80
or quickly purchase this product
Backorder
Part Number:
231732
(?) Brand:
ATEN
Manuf No:
VE812-AT-U
VE812ATU
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
VE812ATU, VE812-AT-U
Aten HDMI over single Cat 5 Extender (up to 100m)

The VE812 HDMI over Single Cat 5 Extender enables an HDMI display to be located up to 100 meters away from the source device. It can conveniently be extended using only one Cat 5e cable, which is cost-effective.

The VE812 not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k x 2k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.

The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.

Features:

  • Uses a single Cat 5e cable to connect the transmitter and receiver
  • Supports HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
  • Long distance transmission - up to 100m
  • Superior video quality - up to 1080p, 4kx2k
  • Supports Dolby True HD and DTS HD Master Audio
  • Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)

VE812 Diagram

Specifications:

Function VE812T VE812R
Connectors HDMI In 1 x HDMI Type A Female (Black) N/A
HDMI Out N/A 1 x HDMI Type A Female (Black)
Line In/Out 1 x RJ-45 Female (Silver)
Power 1 x DC Jack (Black)
LEDs Power/Link 1 (Green)
HDMI Out N/A 1 (Green)
Video 4k x 2k, 1080p @ 60Hz at 100m
Power Consumption DC5.3V, 1.9W DC5.3V, 4.5W
Environment Operating Temp. 050C
Storage Temp. -2060C
Humidity 080% RH, Non-condensing
Physical
Properties		 Housing Metal
Weight 0.40 kg
Dimensions
(L x W x H)		 14.17 x 10.30 x 3.00 cm
