Neo-Flex® Dual WideView WorkSpace
Part Number: 24-194-055
Double your view—and move it too! Configure this compact, height-adjustable computer cart to your needs: Flexible open architecture supports a wide range of dual-display configurations and a fleet of accessories. With the separately ordered Camera Shelf accessory, it’s perfect for web conferencing or other image-intensive applications like telemedicine.
Features include 20" (51 cm) height adjustment (work sitting or standing), small footprint and advanced cable management.
Benefits
- Flexible, open-architecture design is scalable for future videoconferencing or computer equipment. Use a laptop or CPU; features a fleet of accessories to meet individualized computing needs
- Easily moves through small doorways and over thresholds
- Use inside an office cubicle or small meeting space; compact design offers personalized video or computing
- Work sitting or standing with ergonomic 20" (51 cm) height-adjustment range
- Patented Constant Force lift technology provides fluid, one-touch height adjustment
- Safe and neat routing of cables through the expansive cable management storage areas

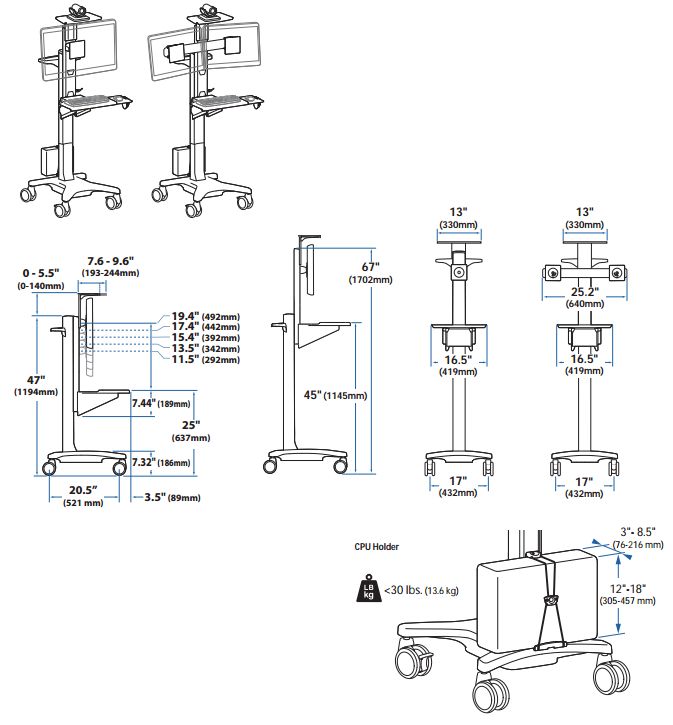

Specifications:
- Part Number: 24-194-055
- Description: Neo-Flex Dual WideView WorkSpace Cart (two-tone grey)
- Includes cart, crossbar with two (2) LCD mounts, integrated worksurface/keyboard tray with left/right mouse tray, scanner holder bracket, mouse holder, rear handle, cable storage box, CPU holder, four dual casters (two locking)
- Maximum outside width of display is 21.25" (54 cm) when displays are 2" (5 cm) thick. This is typically the horizontal dimension of a 22"-diagonal screen-size monitor. Actual allowable width of displays will vary slightly depending on display thickness

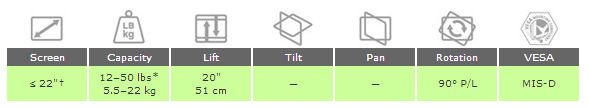

- Weight Capacity: Total load on height-adjustment assembly = 50 lbs (22 kg). Includes contents of Worksurface, Cable Storage Box and LCD Pivots. LCD Pivot capacity = 6–14 lbs (2.7–6.4 kg) per display, 12–28 lbs (5.4–12.7 kg) for both displays
- Mounting Standards: VESA FDMI, MIS-D, 75/100 (hole patterns = 100 x 100 mm and 75 x 75 mm)
- Displays can be mounted on cart in 5 different height positions
- Install displays at 3.5° or 8.5° upward angle for optimized viewing conditions. Displays are not tilt adjustable
- CPUs attach safely to rear of cart with CPU Holder: Adjusts from 12"H x 3"D to 18"H x 8.5"D (30 x 8 cm to 46 x 22 cm)
- CPU Holder capacity = 40 lbs (18 kg)
- Cable Storage Box and space within the center column can conceal and route cords, wiring and power bricks
- Barcode scanner holder provides easy access to hand-held scanner
- Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder coated painted steel
- Worksurface Dimensions: 16.5"W x 14"D (42 x 36 cm)
- Worksurface includes concealed mouse tray that slides out on left or right
- Wheel-to-Wheel Base Dimensions: 17"W x 20.5"D (43 x 52 cm)
- Shipping Dimensions: 45.5"H x 19.75"W x 24"D (1156 x 502 x 610 mm)
- Shipping Weight: 82 lbs (37 kg)
- Warranty: Three (3) years
