All stock codes associated to this product
VS92AATU, VS92A-AT-U, KVAVS92A, KVA-VS-92A, 672792000249, 4710423770928

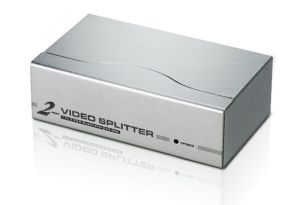

2-Port 250MHz Video Splitter
Features
Ultra High 250 MHz (VS-92A ⁄ VS-94A) or 200 MHz (VS-98A) Bandwidth
Enhances Video Signal for Distances up to 65 m (213)
Supports DDC, DDC2, DDC2B (Port 1 Only)
Daisy Chainable
All Metal Housing
Small Form Factor
Ideal for Public Broadcasting; Remote Monitoring; Classroom and Training Facilities
Function Specification
Connectors Input (Male) 1 x 15 pin HDB
Output (Female) 2 x 15 pin HDB
LEDs Power 1
VGA Bandwidth (-3db) 250 MHz
VGA Resolution 1920 x 1440 @60 Hz
Signal Type VGA ⁄ XGA ⁄ SVGA ⁄ Multisync
Power Consumption DC 9V 0.85W (Max.)
Cable Distance 65m [213'] (Max.)
Housing Metal
Weight 320g
Dimensions 130 x 75 x 20 mm (L x W x H)
