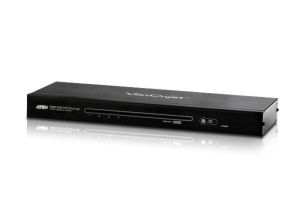

Aten VanCryst 4 Port HDMI Video Splitter Over Cat5 - 1080p or 40m Max
VS1804T
Description
The ATEN VS1804T HDMI Over Cat 5 Splitter is the quickest and most efficient way to move HDMI multimedia content and HDCP information from input source to 4 displays.
A one-to-many, point-to-multipoint system for transmission of high definition video and audio, the VS1804T transmits rich multimedia content in real time from HDMI source devices to HDMI display devices over Cat 5e cables.
The VS1804T provides the flexibility you need for a customized digital signage or HDMI display installation, allowing you to set up your display device 60 m (200 ft) from the HDMI source devices.
The VS1804T solution is ideal for any installation that requires HDMI content to be delivered to multiple destinations, such as:
- In-store or tradeshow digital signage
- Broadcasting information to public locations (news, airline and train schedule and arrival/departure information)
- Sporting events
- Theater and lecture overview rooms
- Classroom and company training facilities
Features
- One HDMI input to 4 HDMI outputs via Cat 5e cables
- Extends displays up to 60 m
- Supports HDMI (3D, Deep color)
- Supports Dolby True HD and DTS HD Master Audio
- Offers local HDMI output
- HDCP compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- Features RS-232 serial port for command controls*
- Cascadable to three levels
- Supports superior video quality HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
- EDID mode selection
- Rack-mountable
Specifications
| Connectors |
HDMI In |
1 x HDMI Type A Female (Black) |
| HDMI Out |
Local |
1 x HDMI Type A Female (Black) |
Line Out
(Cat 5) |
TMDS |
8 x RJ-45 Female |
| DDC |
8 x RJ-45 Female |
| RS-232 |
1 x DB-9 Female (Black) |
| Power |
1 x DC Jack |
| Switches |
EDID Mode |
1 x 8-Position Switch |
| EDID Learn Mode |
1 x Pushbutton |
| LEDs |
Power |
1 (Green) |
| HDMI In |
1 (Green) |
| HDMI Out |
1 (Green) |
| EDID Learn |
1 (Green / Red) |
| Line Out |
8 (Green) |
| Video |
1080p @ 40 m; 1080i @ 60 m |
| Power Consumption |
DC5.3V, 13W |
| Environment |
Operating Temp. |
0-50C |
| Storage Temp. |
-20-60C |
| Humidity |
0-80% RH, Non-condensing |
Physical
Properties |
Housing |
Metal |
| Weight |
2.15 kg |
Dimensions
( L x W x H ) |
43.24 x 15.41 x 4.40 cm |
