Ergotron 45-273-026 StyleView Combo System - For Monitors up to 24"

IMG 1 of 4
Our Price:
$1,478.00
or quickly purchase this product
Order In from SupplierShips from our warehouse in 1-3 business days
Part Number:
311949
(?) Brand:
Ergotron
Manuf No:
45-273-026
45273026
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
45273026, 45-273-026, 1810451, 698833018196

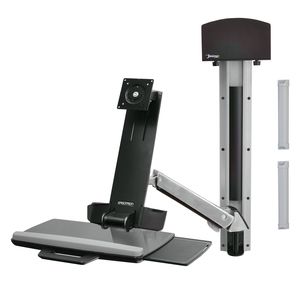

StyleView® Sit-Stand Combo System
Part Number: 45-273-026

With Small Black CPU Holder. This complete system provides easy re-positioning of your entire workstation—move your display, keyboard, mouse and barcode scanner in a single motion!
Durable polished aluminum construction! Work sitting or standing with the arm’s ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.



Benefits
  • Flexible, open-architecture design is scalable for future computer equipment
  • Comfortable, ergonomic data entry—work sitting or standing with 20" (51 cm) single-motion lift adjustment
  • Five-inch (12.7 cm) independent LCD height adjustment ergonomically accommodates individual users
  • Easy-to-clean features promote superior infection control
  • Barcode scanner holder provides easy access to hand-held scanner
  • Extend LCD and keyboard up to 39.75" (101 cm) from wall; fold equipment back out of the way when not in use. With keyboard in storage position, system depth is as little as 12" (30 cm)
  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry; keyboard tray pulls out when needed and stows inside worksurface
  • Maintains the relative position of screen and keyboard throughout full range of motion
  • Clean, concealed and neat routing of cables through the expansive cable management system
  • Part Number: 45-273-026
  • Description: StyleView Sit-Stand Combo System with Small CPU Holder (polished aluminum)
  • Includes Combo Arm, 34" Wall Track with (2) black track covers, Small Black CPU Holder, CPU spacer, (2) 10" cable channels, CPU and Arm track mount bracket kits, Wall Track fasteners for concrete and wood, CPU
  • direct wall mount kit, height-adjustable LCD mount, wrist rest, scanner and mouse holders, integrated keyboard tray with left/right mouse tray, handle, VESA monitor mounting kit, cable ties
  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic
  • Weight Capacity: display = 6–18 lbs (2.7–8.2 kg) or up to 25 lbs (11.4 kg) with tilt and lift lock-out features engaged; keyboard, mouse and barcode scanner = 4 lbs (1.8 kg); CPU = 50 lbs (22.7 kg)
  • Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
  • Monitor up/down tilt = +25°/-5°
  • Patented CF lift-and-pivot motion technology provides premium 25-inch (64 cm) LCD height adjustment, portrait to landscape rotation and 30° tilt
  • Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
  • Integrated mouse and barcode scanner holder provide easy access
  • Fold-down keyboard tray to support workflow needs. Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm)
  • Back-tilt keyboard tray adjustable from 0° to -10°
  • CPU Size Range: 1-3/8" to 3-3/4" (35 to 95 mm) wide; accommodates most small form factor and ultra small form factor CPUs
  • CPU Holder includes fasteners for locking the holder’s width
  • Optional Extender (45-261-026) increases range of motion for even greater reach
  • Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)
  • Product Weight: 36.8 lbs (16.7 kg)
  • Shipping Dimensions: 37.1" x 22.1" x 11.1" (942 x 561 x 282 mm)
  • Shipping Weight: 47 lbs (21.4 kg)
  • Warranty: Five (5) years
