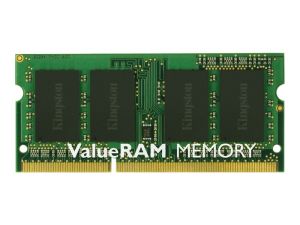

Kingston 2GB (1 x 2GB) PC3-12800 1600MHz Non-ECC DDR3 SODIMM RAM - ValueRAM, Single Rank x16

IMG 1 of 1
Our Price:
$40.25
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
313286
(?) Brand:
Kingston Web Site
Manuf No:
KVR16LS11S6/2
Shipping Weight:
0.1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
Need assistance in selecting the correct RAM for your system?
Please use our Memory Configurators to ensure compatibility
All stock codes associated to this product
KVR16LS11S6/2, 740617228328
KVR16LS11S6/2

2GB 1Rx16 256M x 64-Bit PC3L-12800

CL11 204-Pin SODIMM

DESCRIPTION

This document describes ValueRAM's 256M x 64-bit (2GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 256M x 16-bit FBGA compo-nents. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This 204-pin SODIMM uses gold contact fingers. The electrical and me-chanical specifications are as follows:

FEATURES

  • JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~1.575V) Power Supply
  • VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
  • 800MHz fCK for 1600Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 11, 10, 9, 8, 7, 6, 5
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential with starting address 000 only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
  • Bi-directional Differential Data Strobe
  • Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm 1%)
  • On Die Termination using ODT pin
  • Average Refresh Period 7.8us at lower than TCASE 85C, 3.9us at 85C < TCASE < 95C
  • Asynchronous Reset
  • PCB : Height 1.180 (30.00mm), single sided component

SPECIFICATIONS

  • CL(IDD) 11 cycles
  • Row Cycle Time (tRCmin) 48.125ns (min.)
  • Refresh to Active/Refresh 260ns (min.)
  • Command Time (tRFCmin)
  • Row Active Time (tRASmin) 35ns (min.)
  • Maximum Operating Power (1.35V) 1.050 W*
  • UL Rating 94 V - 0
  • Operating Temperature 0oC to 85oC
  • Storage Temperature -55oC to +100oC

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Kingston) web site.
